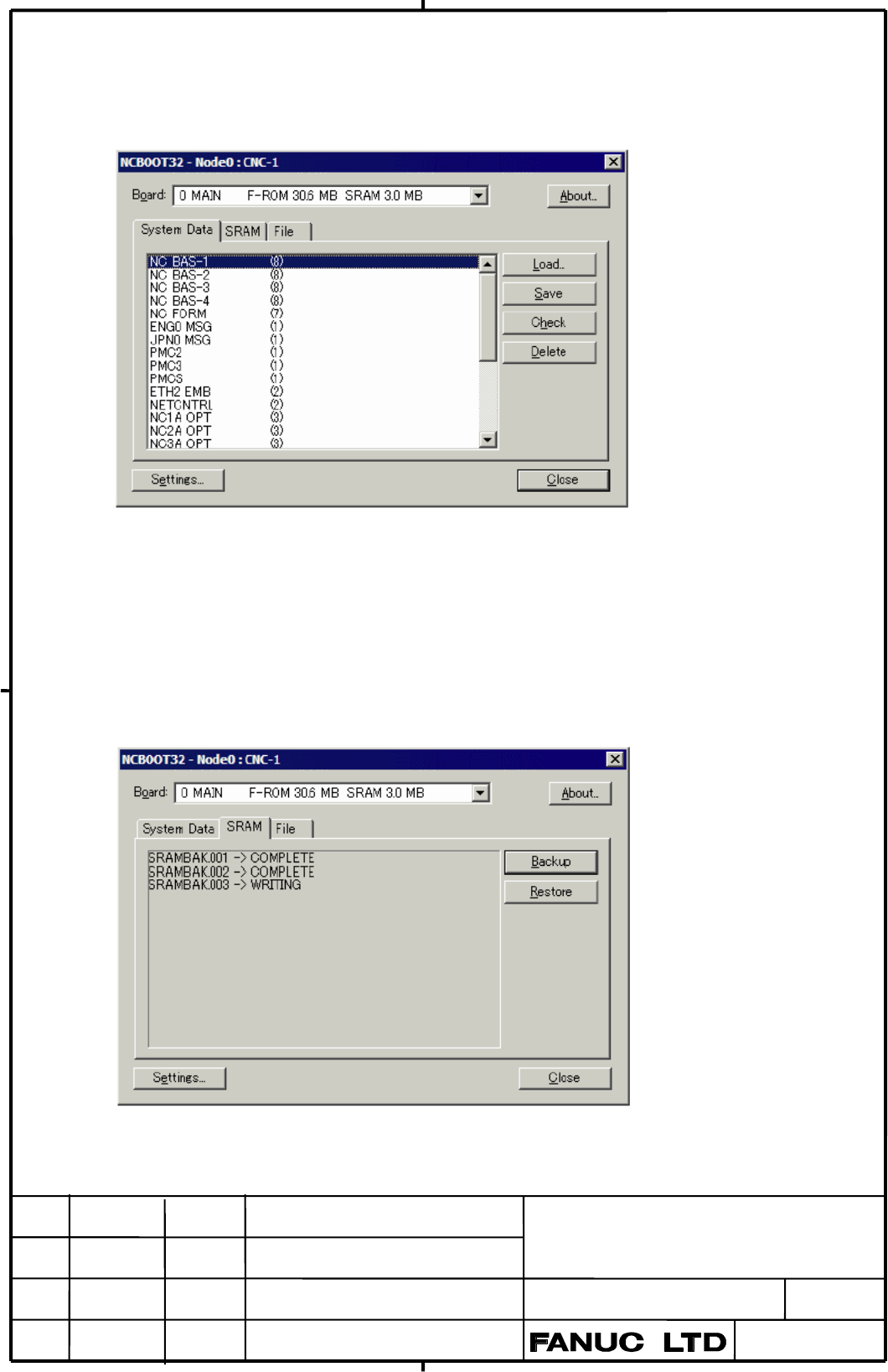

(4) System Data Operation
The following screen is used for operating system data (including control software and ladder programs)
on the CNC.
[Load...] opens the file selection screen. Specify a file to be loaded.
[Save] saves the selected NC system data in a file.
[Check] checks the selected NC system data.
[Delete] deletes the selected NC system data.
(5) SRAM Operation
This screen is used to store and restore CNC SRAM data.
[Backup] stores SRAM data, and [Restore] restores SRAM data. In the center of the screen, the progress
status is displayed. As with the CNC the backup file name is determined automatically from the SRAM size,
and cannot be renamed.
