FANUC High Speed Serial Bus for 30i Series Additional Manual Page 8

Additional Manual
EDIT
SHEE
DRAW. NO. CUST.
TITLE
DESCRIPTION DESIG.DATE
FANUC HIGH SPEED SERIAL BUS FOR
30i SERIES CONNECTING AND
MAINTENANCE MANUAL
A
-85114E
8
/
24
4. Points to Notice for Handling
(1) Points to Notice for Handing HSSB Interface Board For Personal Computer
Contents Static Sensitive
1. Electrostatic Protection
Interface Board for Personal Computer should be enclosed with static-protective bag during storage and
transportation. Ground your body before taking out from static-protective bag and handling the interface
board.
Never Touch to Contacts
2. Protection of the Card Edge Terminal
Never touch to the card edge terminal (Gold plated contact). If you touch the terminal, rub lightly with clean
mild gauze. (Gauze with ethyl alcohol is applicable.) No other organic solvent than ethyl alcohol can be used.
(2) Protection During No Using Optical Fiber Cables
When the optical connector or fiber cable is not used, the attached protecting cap or cover must be put on. If
the optical connector or fiber cable is left without protecting cap, Connection Error may occur due to dirt or
stains.

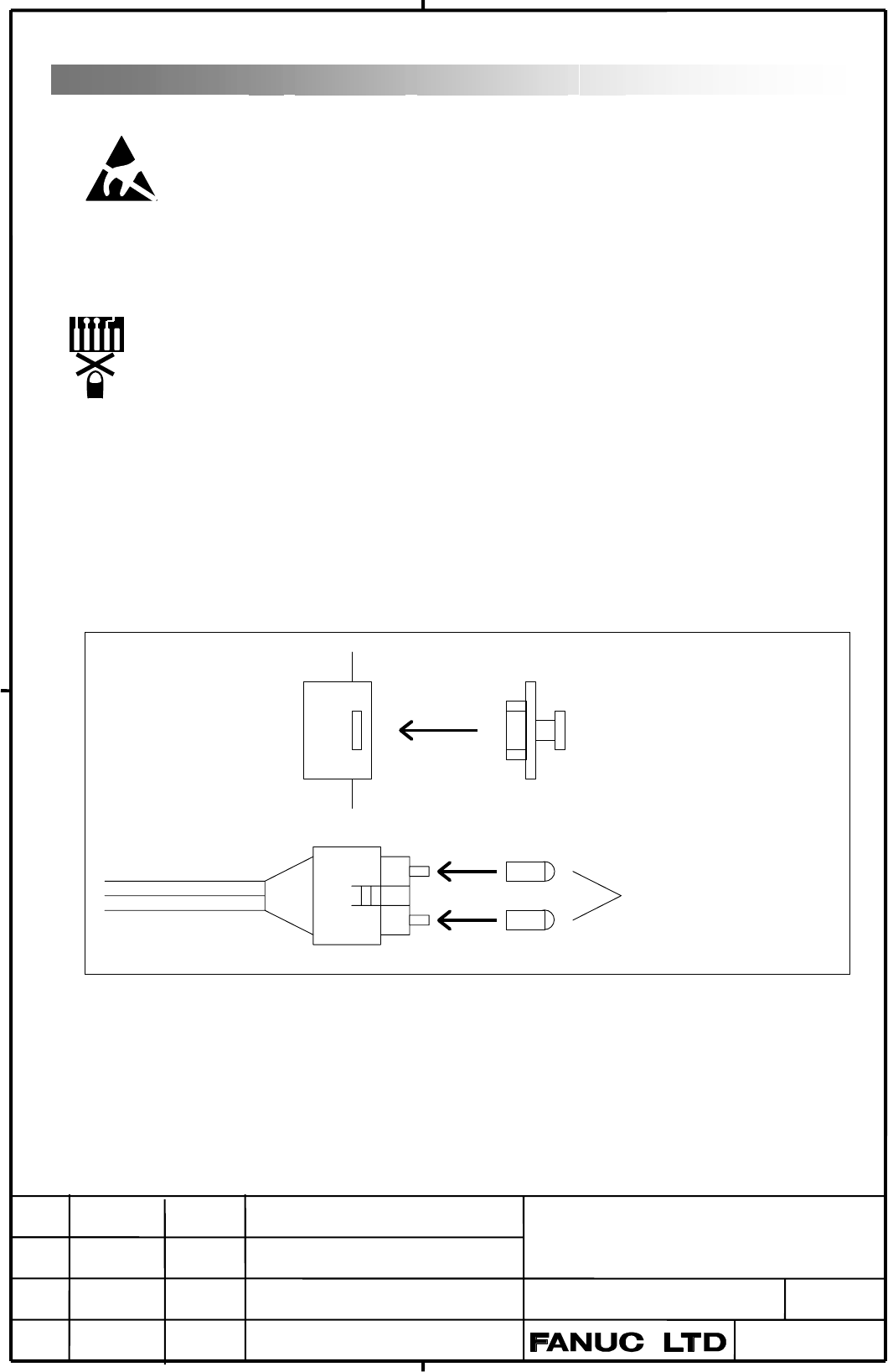

Protecting Optical connector and fiber cable. (When no use)
Optical
Connector
Optical Fiber Cable
Protecting Cap
Protecting Cover
