FANUC High Speed Serial Bus for 30i Series Additional Manual Page 23

Additional Manual
EDIT
SHEE
DRAW. NO. CUST.
TITLE
DESCRIPTION DESIG.DATE
FANUC HIGH SPEED SERIAL BUS FOR
30i SERIES CONNECTING AND
MAINTENANCE MANUAL
A
-85114E
23
/
24
(2) Optical Fiber Cable
Optical fiber cord length: 1~50 m
Optical fiber cord diameter: 2.2 mm x 2 cores
Reinforce cable diameter: 7.6 mm
Tensile strength:
Reinforce cable: 75 kg
Optical fiber cord: 7 kg / a core
Optical fiber cord-connector: 2 kg
Minimum bending radius:
Optical fiber cord: 25 mm
Reinforce cable: 50 mm
Resisting bending capacity: More than 10 million times for bending
radius 100 mm (normal temperature)
Fireproofing: Correspond to UL VW-1
Temperate range for using －20C~70C

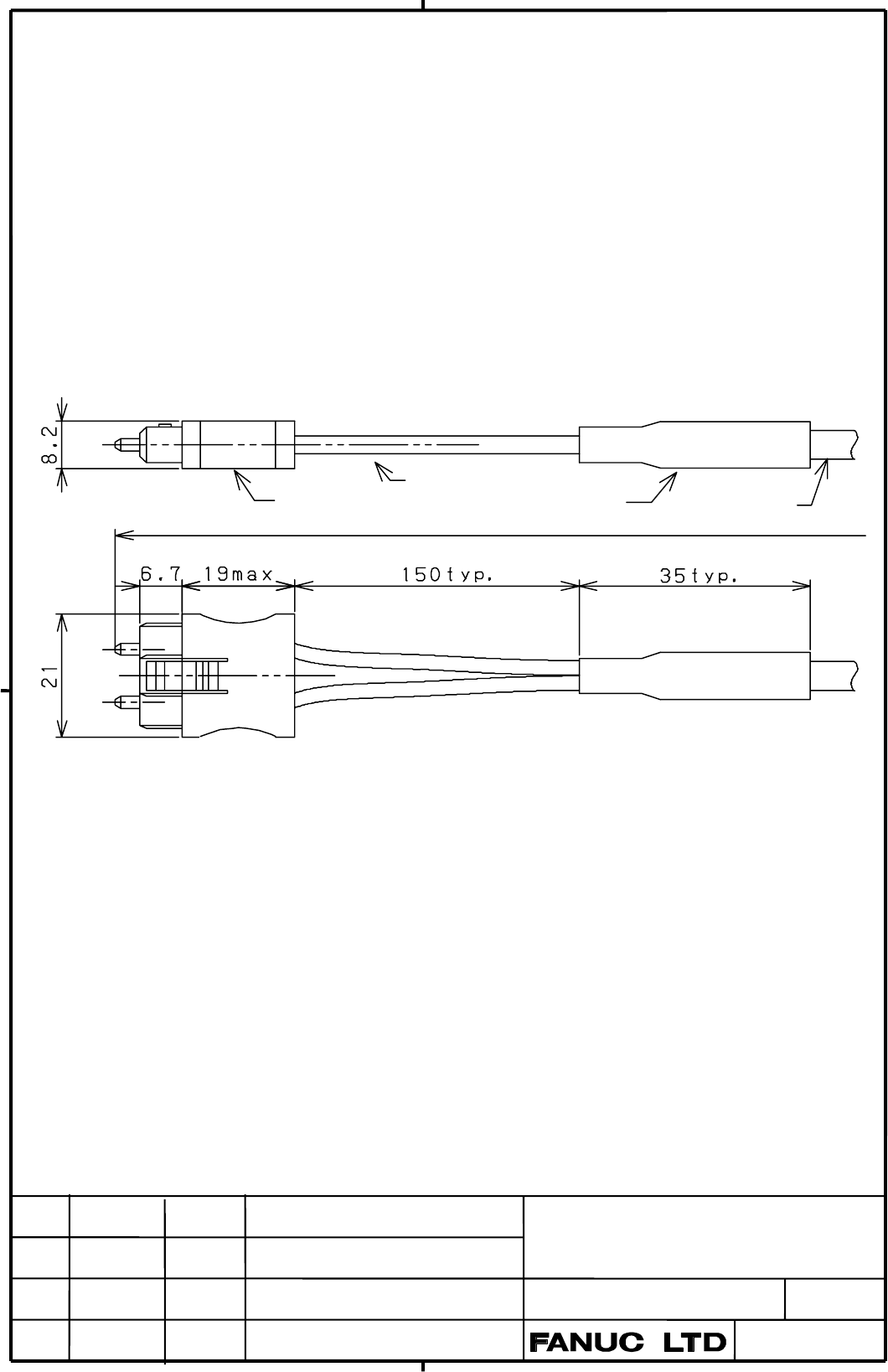

Unit: mm
Cord
Connector
Bush
Reinforce
Cover
1~50m
Outline (A66L-6001-0026, A66L-6001-0029)
