8. DATA INPUT/OUTPUT

349

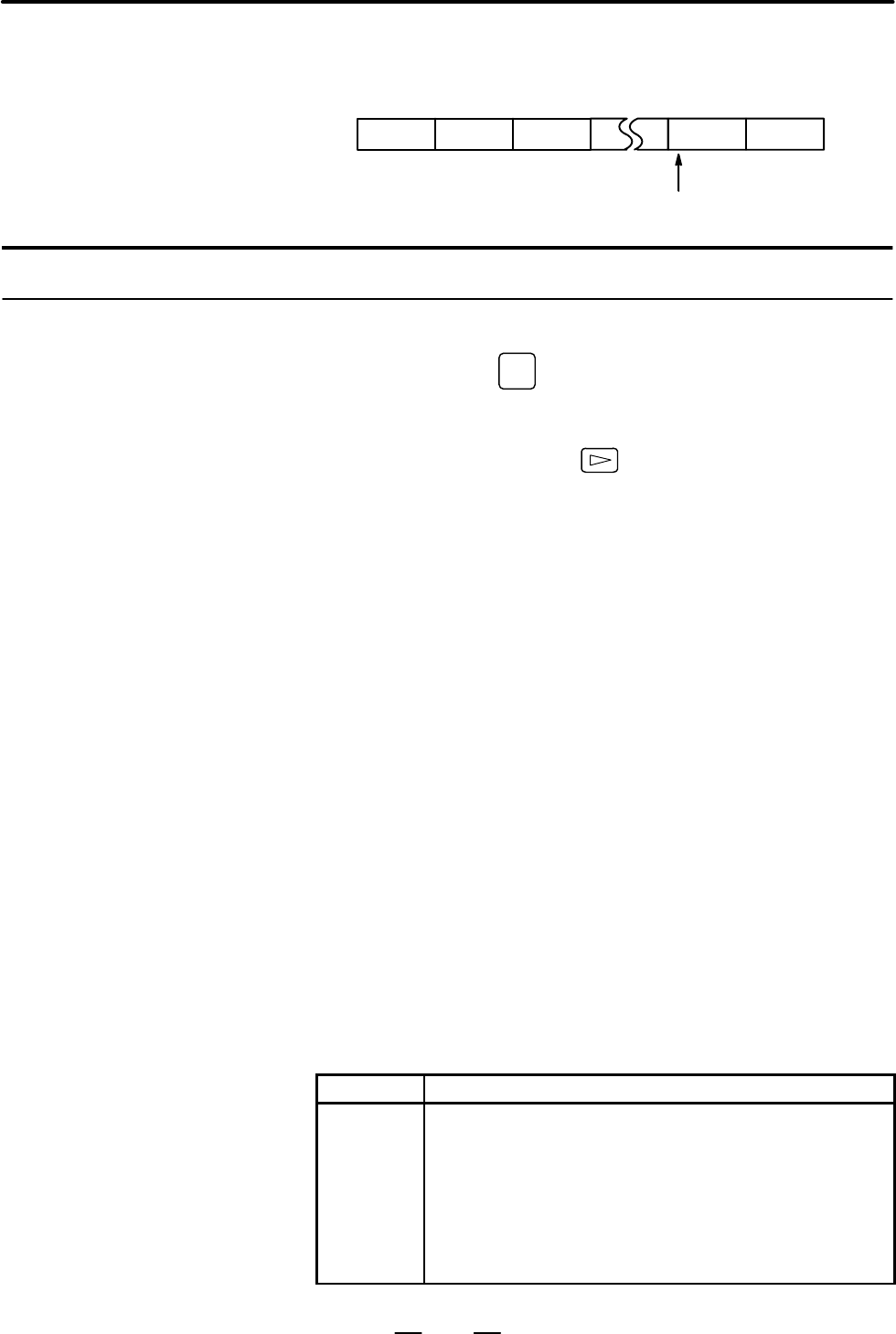

When the program is input from the floppy, the file to be input first must

be searched.

For this purpose, proceed as follows:

File 1

File searching of the file n

File n

BlankFile 2 File 3

File heading

1 Press the EDIT or AUTO switch on the machine operator’s panel.

2 Press function key

PROG

, then the program contents display screen or

program check screen appears.

3 Press soft key [(OPRT)]

4 Press the rightmost soft key

(next–menu key).

5 Enter address N.

6 Enter the number of the file to search for.

D N0

The beginning of the cassette is searched.

D One of N1 to N9999

Of the file Nos. 1 to 9999, a designated file is searched.

D N–9999

The file next to that accessed just before is searched.

D N–9998

When N–9998 is designated, N–9999 is automatically inserted

each time a file is input or output. This condition is reset by the

designation of N0, N1 to 9999, or N*9999 or reset.

7 Press soft keys [FSRH] and [EXEC]

The specified file is searched for.

The same result is obtained both by sequentially searching the files by

specifying Nos. N1 to N9999 and by first searching one of N1 to N9999

and then using the N–9999 searching method. The searching time is

shorter in the latter case.

No. Description

The ready signal (DR) of an input/output device is off.

An alarm is not immediately indicated in the CNC even when an

alarm occurs during head searching (when a file is not found, or

the like).

An alarm is given when the input/output operation is performed

after that. This alarm is also raised when N1 is specified for writ-

ing data to an empty floppy.(In this case, specify N0.)

8.2

FILE SEARCH

Procedure (CRT/MDI)

Explanation

D File search by N-9999

Alarm
