FANUC POWER MATE i-MODEL D/H Operators manual Page 413

Operators manual

Page of 648

/ 648

OPERATION

B–63174EN/02

8. DATA INPUT/OUTPUT

395

By setting the I/O channel (parameter No.20) to 4, files on a memory card

can be referenced, and different types of data such as part programs,

parameters, and offset data on a memory card can be input and output in

text file format.

The major functions are listed below.

D Displaying a directory of stored files

The files stored on a memory card can be displayed on the directory

screen.

D Searching for a file

A search is made for a file on a memory card and, if found, it is displayed

on the directory screen.

D Reading a file

Text–format files can be read from a memory card.

D Writing a file

Data such as part programs can be stored to a memory card in text file

format.

D Deleting a file

A file can be selected and deleted from a memory card.

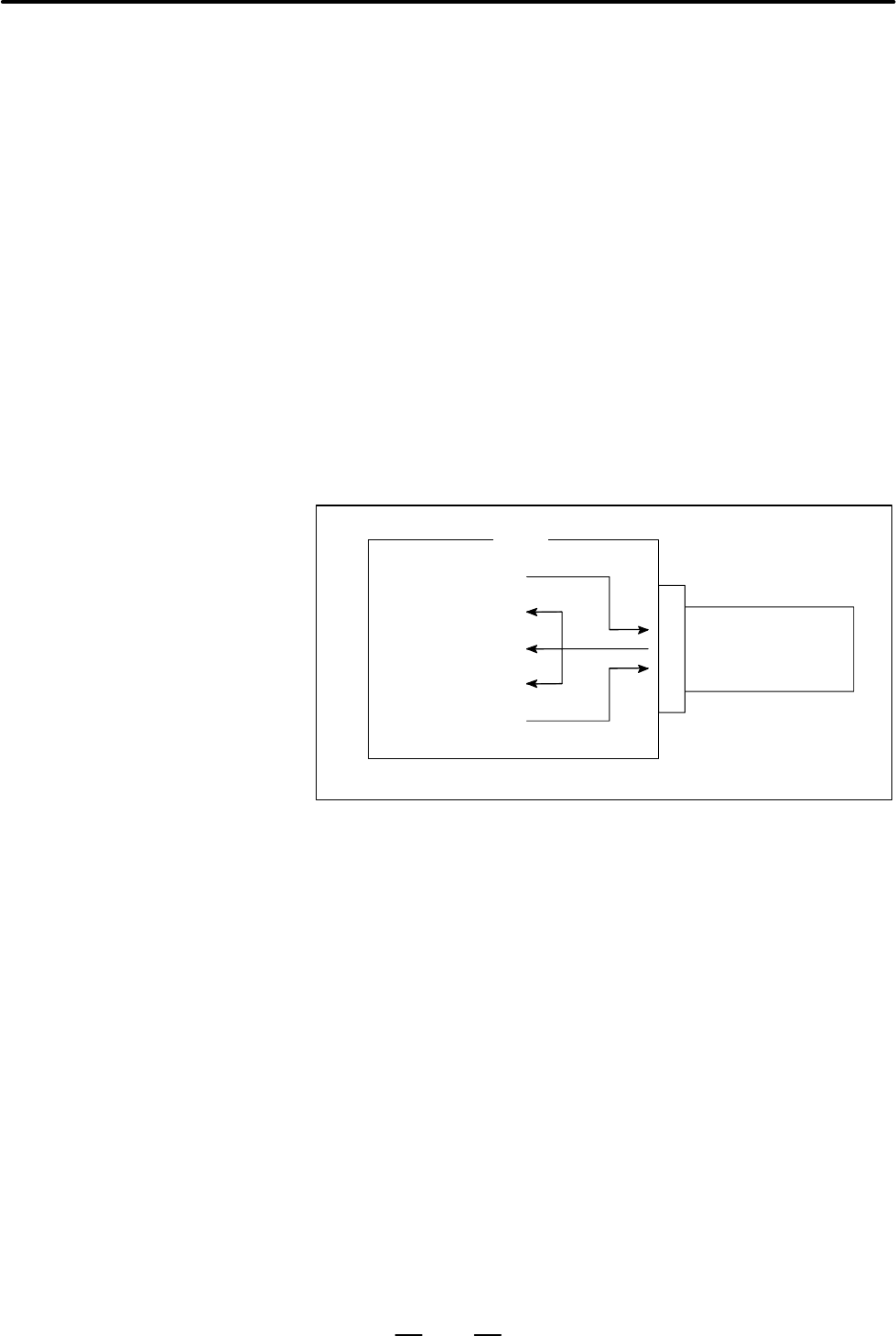

CNC

Writing a file

Reading a file

Displaying a directory

Searching for a file

Deleting a file

Memory card

8.10

DATA INPUT/OUTPUT

USING A MEMORY

CARD
