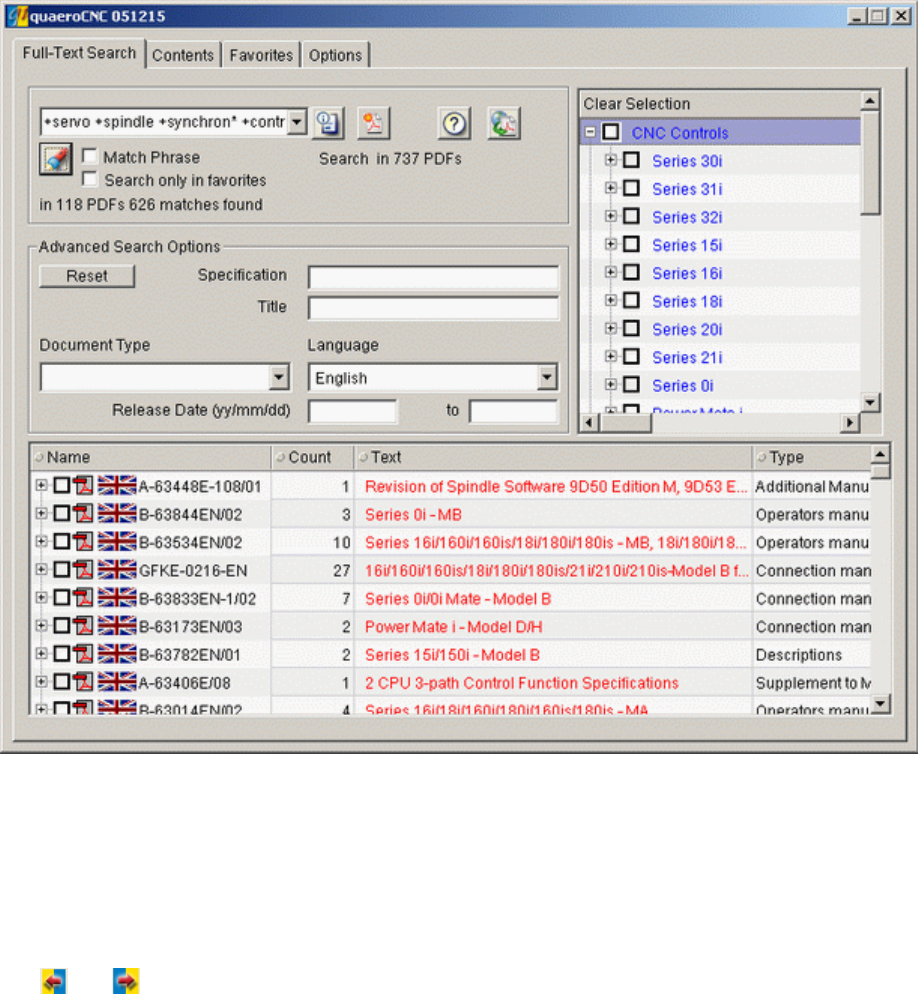

Figure 13 Tab Full-Text Search
If you open documents (max. 20) with [Ctrl]+click, they stay open when you open the next document. You
can change this setting in the Options menu.
If you click on the name in the hit list, the hits are sorted according to this criterion in ascending or
descending order.
The
and buttons in the quaeroCNC menu bar of the Adobe Acrobat®/ Acrobat Reader® provide a
user-friendly means of browsing to the next/previous hit, e.g. if the plug-in cannot be seen directly once
the PDF has been maximized to full screen view.
• Search options
Searching without search term
In order to get an overview of the documents contained in quaeroCNC, you can search without search
term. The search result will display all PDFs present in the index. By using the filter, the amount of
documents can be limited, for example, to all the documents of a particular language or from a specified
update period.
Previous page
Next page
