• Updating quaeroCNC
To use this function, special authorization is required. It is quite time-consuming.
The Update Index button downloads a new quaeroCNC index from the GE Fanuc Server. The URL of
the Server is given in quaero.ini (see chapter
2.3. ).
Depending on the index version of the client, the plug-in automatically downloads either an update or a
new full index from the Server. Regular updates ensure the download of the smaller update index
containing only new and updated documents. These documents are then integrated into the locally
available full index. If a new full index has been downloaded, it replaces the index of the local system.
If the download of the index has been successfully completed, all PDFs not locally available are
determined. If the download of the index fails, the previous index is restored.
The PDFs are copied to the local quaeroCNC directory. If errors occur during the download, the file
names of the corresponding PDFs are stored in missing_files_from_server.txt in the tmp subdirectory of
the quaeroCNC program directory.
Example Updating quaeroCNC
• Start quaeroCNC and change to the Options tab.
• Make sure that your PremiumNet user information is backed up in the Synchronization section
under PremiumNet Login and is set under Location PremiumNet. In this example
(see also
Figure 33), only English texts have been downloaded. n order to do so, go to the
Document Options (download) section and select the Use File Filter option and go to the File
Filter/Document Language section and select English.
Obsolete documents are deleted after the synchronization (Delete Obsolete Documents: Yes).
Besides, only new or updated documents with respect to the last synchronization date are
checked for availability (Check Documents (download): New/Updated). If you set this option to
All, the system would check all documents in the index for availability, irrespective of their state.

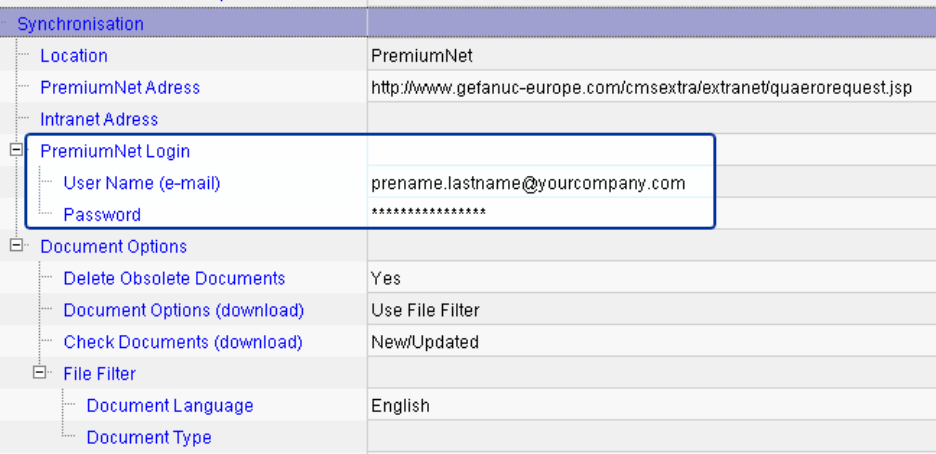

Figure 33 Section Synchronization, Example Updating quaeroCNC
• To start the update, click on the Update Index button.
