• Change now the search term to Rigid Tapping and activate the Match Phrase checkbox. If you
use this search function, the search phrase must not contain any quantitative logic
(see also
Figure 21).
• Start the search by pressing ENTER or by clicking on
.

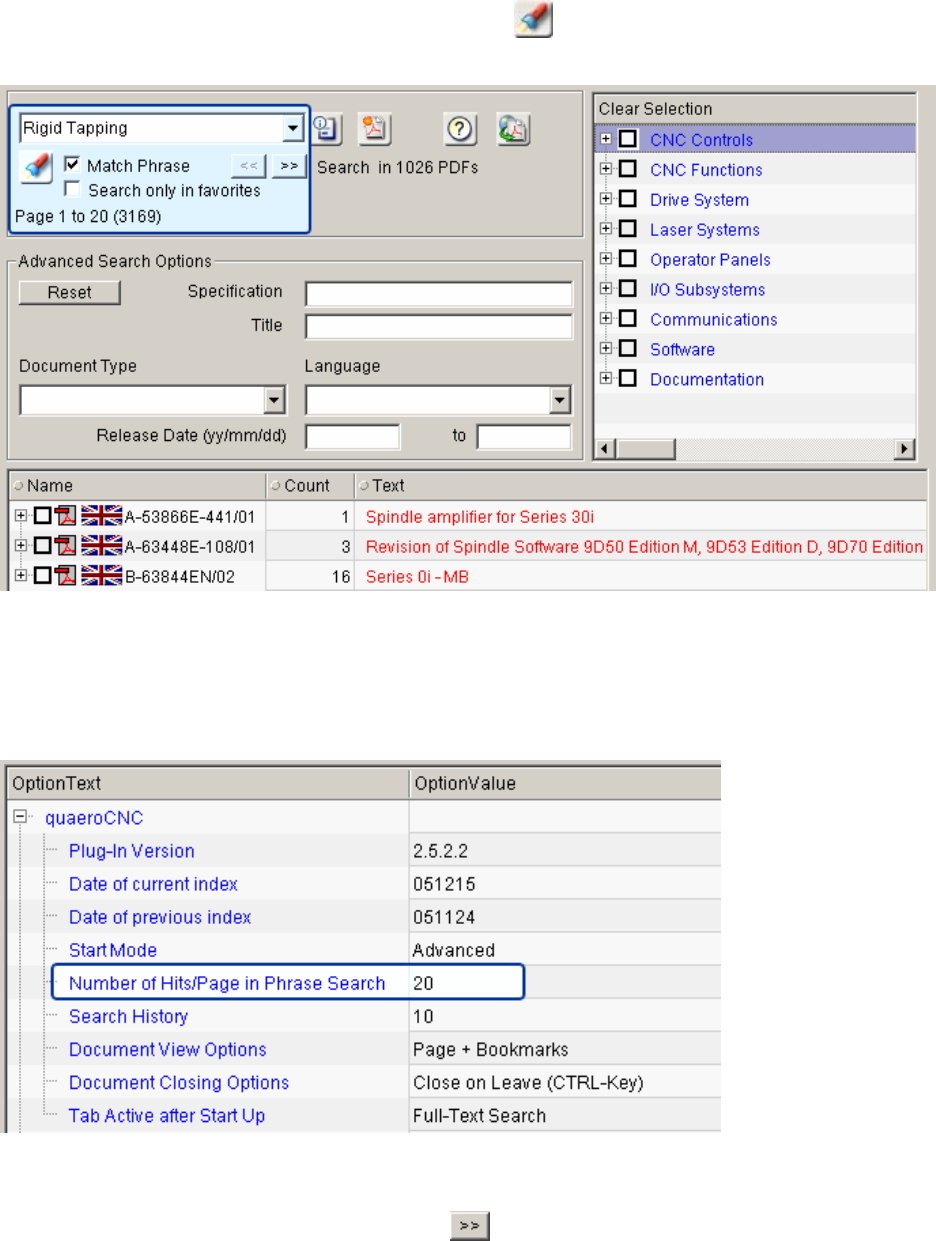

Figure 21 Search with Match Phrase
• In this example, 1026 documents have been searched. There are 3169 possible hits. The hits 1
to 20 are displayed in the hit list. The number of hits per Match Phrase search displayed in the
hit list can be set in the Options tab. (see also
Figure 22).
Figure 22 Setting the number of hits per page when using Match Phrase
• You can display the next 20 hits by clicking on
with the left mouse button.
Previous page
Next page
