quaeroCNC - Instruction Manual Startup Guide Page 25

Startup Guide
GE Fanuc Automation Europe CNC S.A.
quaeroCNC Instruction Manual
Page 25 / 38 GFKE-0211-EN/05
Februar, 2006
The Reset button resets all filters.

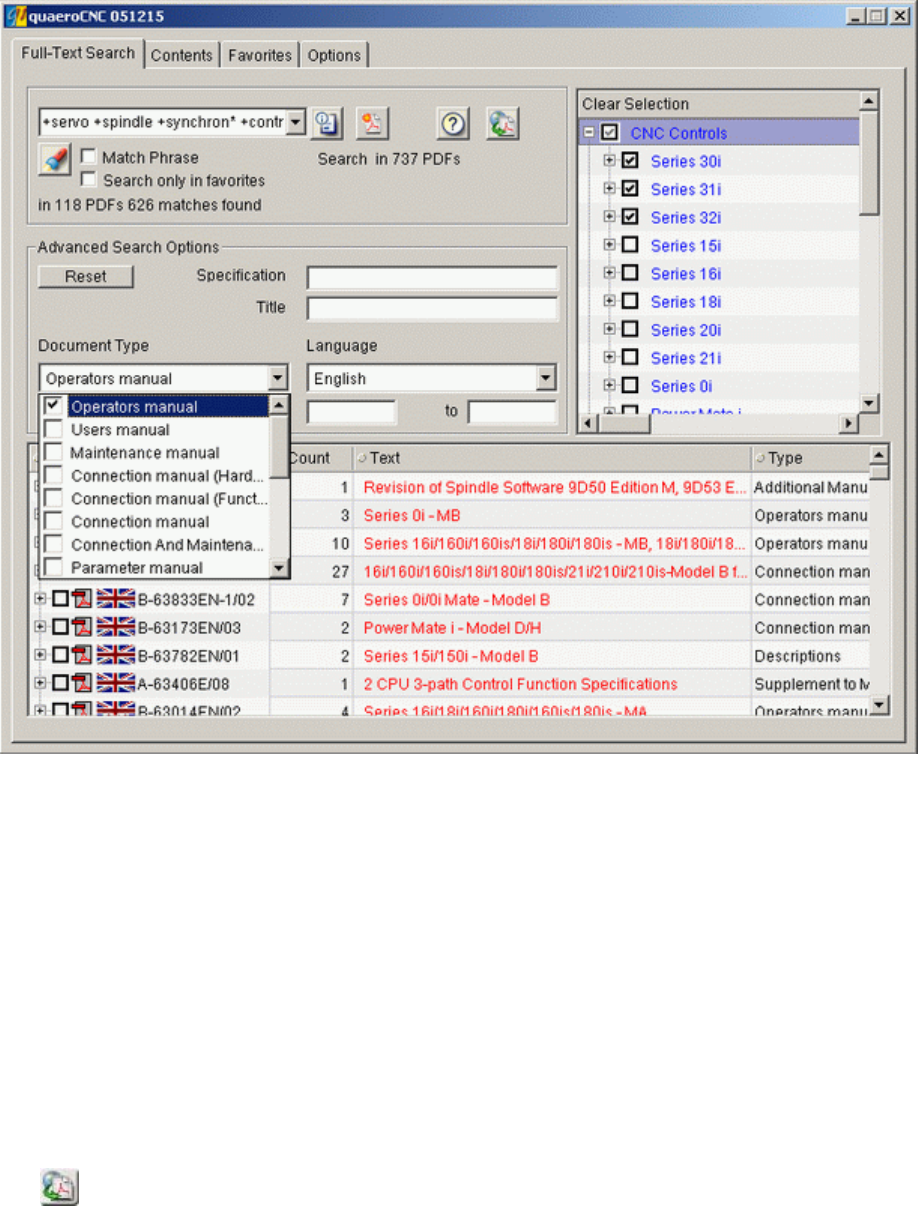

Figure 24 Search mask with Document Type filter opened
The complete index is searched, however, only those documents that correspond to the filter criteria are
displayed.
• Tree Structure and Checks
The tree structure corresponds to a simplified form of the navigation structure. However, the documents
are not displayed here.
If you activate the checks, only hits in the selected parts of the tree are displayed.
The Clear Selection button in the title bar of the tree structure removes all checks.
• PDF Download
The button allows to download all PDF files displayed in the hit list. The system checks whether the
document is locally available or not. All documents that are not available will be downloaded. This
function allows an easy download of documents that have not been downloaded during the Index Update
