quaeroCNC - Instruction Manual Startup Guide Page 31

Startup Guide
GE Fanuc Automation Europe CNC S.A.
quaeroCNC Instruction Manual
Page 31 / 38 GFKE-0211-EN/05
Februar, 2006
o Check Documents (download)
- New/Updated: only new/updated documents in the new index with respect to the
previous index are checked for local availability and updating.
- All: all documents in the new index are checked for local availability and updating
o File Filter – Downloading may be restricted to certain document types or languages
Example Document Closing Options
• Start quaeroCNC and change to the Options tab.
• Make sure that the Close on Leave (CTRL-Key) option in section Document Closing Options is
activated.
If not, left-click on Close on Leave (CTRL-Key). A drop-down list is displayed. Select the desired
option from the list and confirm with ENTER.
• Change to the Full-Text Search tab and enter +rigid +tapping in the search phrase textbox.
Select English for the language filter and start the search (see also
Figure 31).

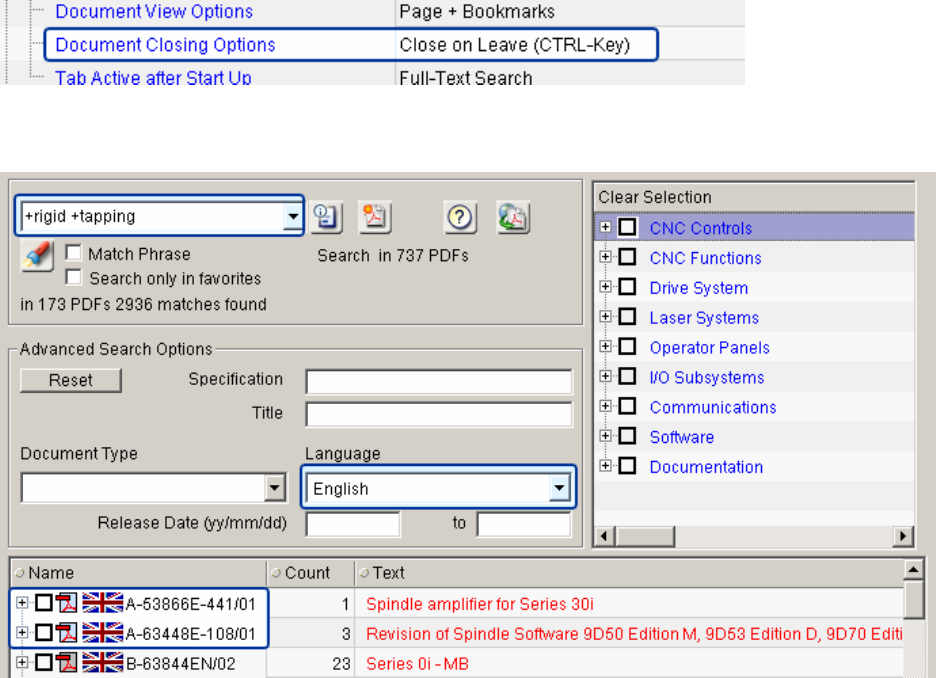

Figure 31 Search result, Example Document Closing Options
• Assuming that you would like to compare the documents A-53866E-441/01 and A-63448E-
108/01, hold down the CTRL-key and left-click on A-53866E-441/01 first and then on A-63448E-
108/01. Release the CTRL-key and change to Adobe Acrobat®/ Acrobat Reader®.
• Select Window/Tile/Horizontally or press Shift+Ctrl+K. Now, you can easily compare the two
documents.
