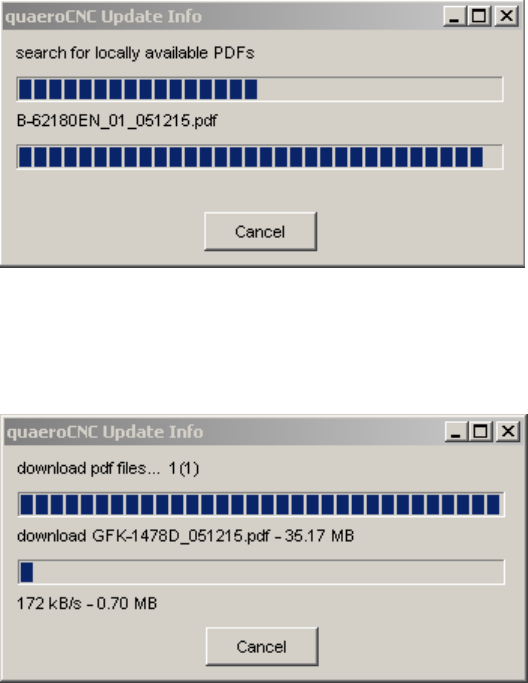

Figure 36 Checking availability of documents (PDF files) on target computer
• On the basis of the results of step 2, the unavailable documents are downloaded in step 3
(see also
Figure 37). Upon completion of the download, the plug-in is re-started.
Figure 37 Updating PDF documents
If you cancel the update procedure during step 1, the old index will be restored. However, if you cancel
the procedure during steps 2 or 3, this will not influence the download of the new index. It is possible to
download missing documents later. Use the PDF-Download button in the Full-Text Search tab. Refer to
the instructions and the example for PDF download in chapter
3.4. /PDF Download!
