Connecting and Maintenance Manual for Fanuc Panel I Additional Manual Page 16

Additional Manual
EDI
T
SHEET
DRAW. NO.
CUS
T
T
ITLE
DESCRIPTION
DESIG.DATE
Connecting and Maintenance Manual
for FANUC PANEL i
A-81000E
16 /
3. Mounting Space
The following three spaces are required around the PANEL i.
A: Space for connecting cables.
Also, If you wish to exchange a battery or a fuse without removing PANEL i from the machine
panel, this space A is required and it is necessary to be able to access to the battery or the fuse
from the rear side of the PANEL i.
B: If PCI extension board exists, this space B is required for cable connection. The dimension X
depends on cables connected to the PCI Extension board.
C: This space is required for airflow.
PANEL i consumes the power described at “2.3. Power Specification” item 3) . Therefore, please
install cooling system in the cabinet with keeping space C.

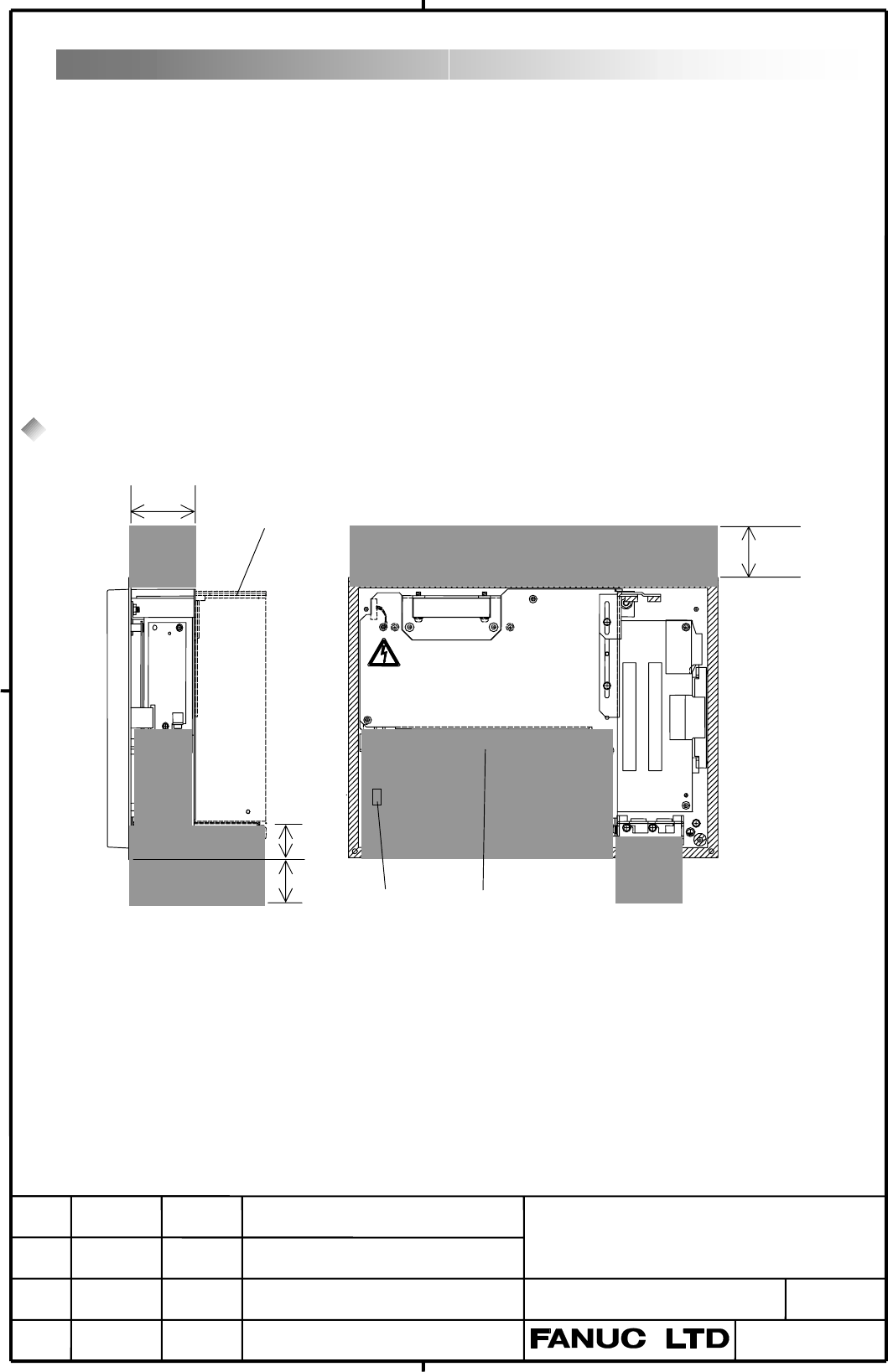

3.1. Basic Unit 10.4” LCD Type
C
B
C
In case that PCI Extension Board Fitting
Plate is ordered.
50
A
A
27
X
60
Fuse Battery
Refer to APPENDIX about outline dimensions of the basic unit.
Unit: mm
04 01.04.01 Sugitani All page changed
