4.6. High Speed Serial Bus (HSSB)
1) RECOMMENDED CABLE（Optical Fiber Cable）
A66L-6001-0026#L1R003・・・Cable Length = 1 m
A66L-6001-0026#L3R003・・・Cable Length = 3 m
A66L-6001-0026#L5R003・・・Cable Length = 5 m
A66L-6001-0026#L7R003・・・Cable Length = 7 m
A66L-6001-0026#L10R03・・・Cable Length = 10 m
A66L-6001-0026#L15R03・・・Cable Length = 15 m
A66L-6001-0026#L20R03・・・Cable Length = 20 m
A66L-6001-0026#L30R03・・・Cable Length = 30 m
A66L-6001-0026#L40R03・・・Cable Length = 40 m
A66L-6001-0026#L50R03・・・Cable Length = 50 m
A66L-6001-0026#L100R3・・・Cable Length = 100m
2) Low-loss optical fiber cable for junction only
A66L-6001-0029#L1R003・・・Cable Length = 1 m
A66L-6001-0029#L3R003・・・Cable Length = 3 m
A66L-6001-0029#L5R003・・・Cable Length = 5 m
A66L-6001-0029#L7R003・・・Cable Length = 7 m
A66L-6001-0029#L10R03・・・Cable Length = 10 m
A66L-6001-0029#L15R03・・・Cable Length = 15 m
A66L-6001-0029#L20R03・・・Cable Length = 20 m
A66L-6001-0029#L30R03・・・Cable Length = 30 m
A66L-6001-0029#L40R03・・・Cable Length = 40 m
A66L-6001-0029#L50R03・・・Cable Length = 50 m
3) Low-loss optical junction adapter
A63L-0020-0004
Refer to the Connecting manual of CNC or following TECHNICAL REPORT that describes the
HSSB, Optical Fiber Cable or Junction Adapter.
Name Spec.
FANUC High Speed Serial Bus Type 2
Connecting and Maintenance Manual
A-73527E

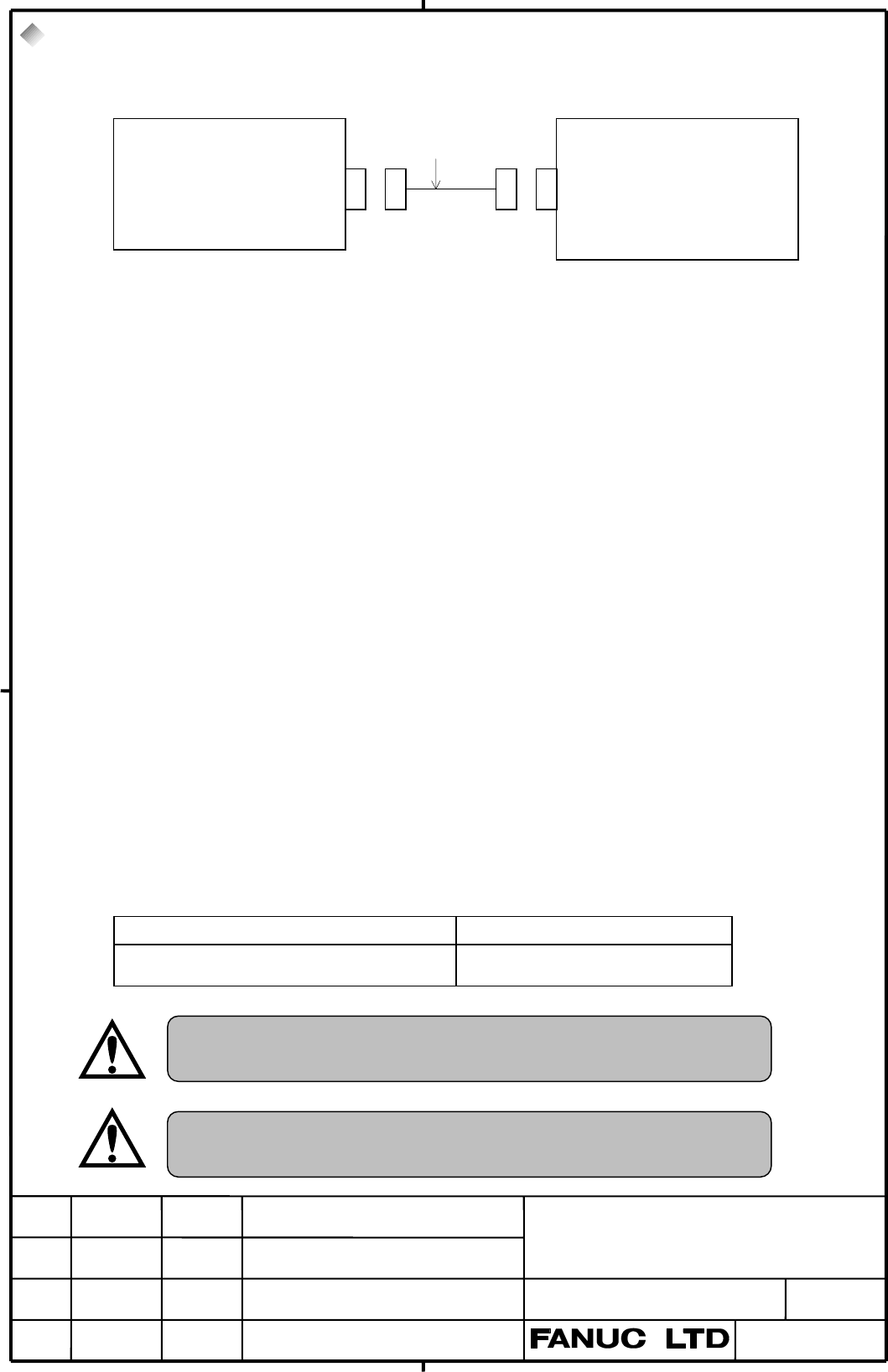

HSSB Interface Board
(CNC side)
PANEL
i
Optical Fiber Cable
COP7
COP7
Optical fiber cable used for FANUC I/O Link, for FSSB and for
Serial Spindle can not be used.
Optical fiber cable can not be cut or joined by customer.
Use one of above cables.
04 01.04.01 Sugitani All page changed
