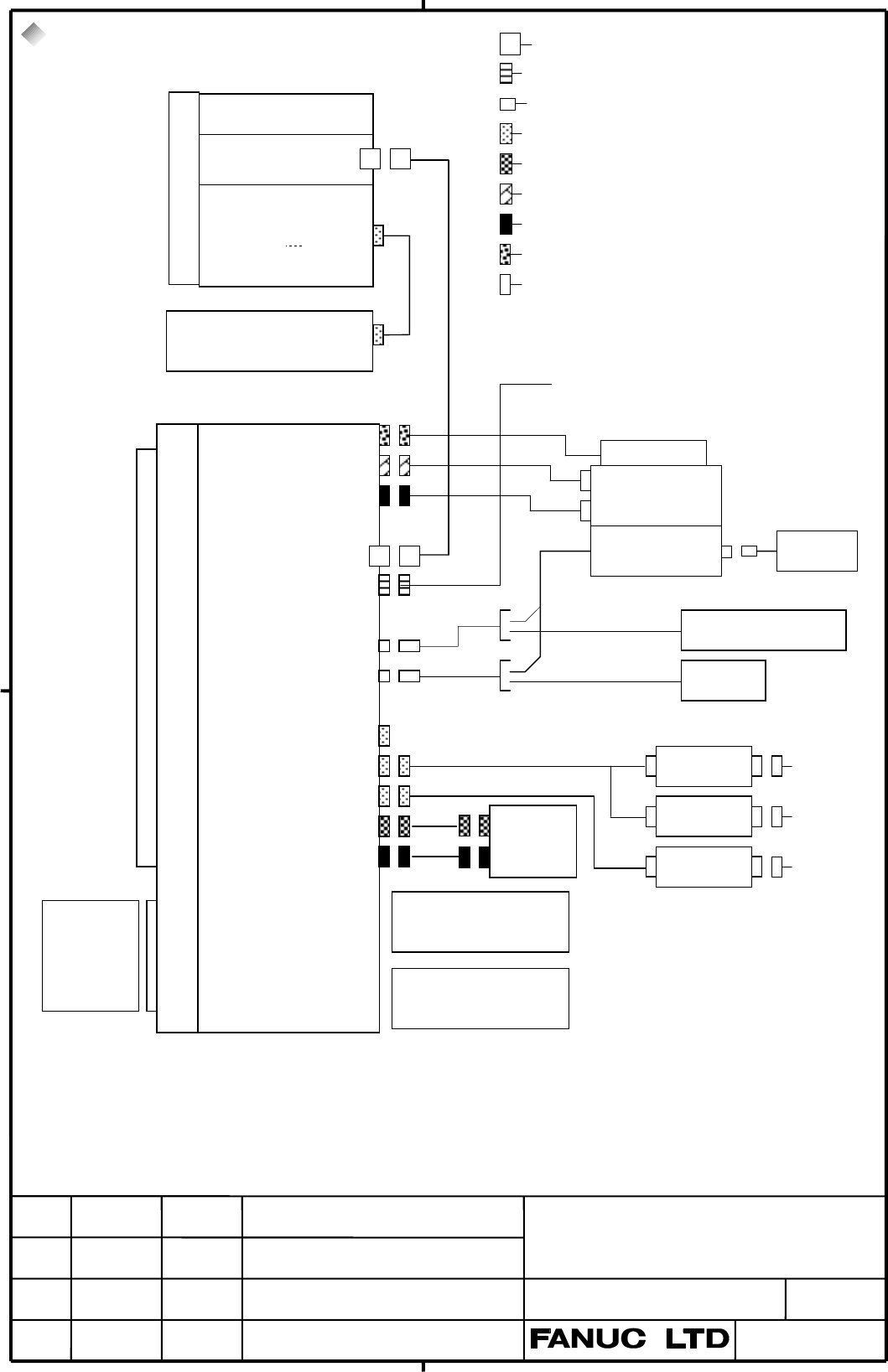

1.3. With Touch-Panel, Without Soft-Key
*1 Either Separate MDI or FA Full Keyboard is usable. Both cannot be used simultaneously. A
3.5”HDD unit with a FAN unit must be mounted on the backside of a FA Full Keyboard or a
MDI.
*2 These devices can be used only during application development. These cannot be installed in
the control unit.
*3 RS232-C channel 1 is not usable because it is used by the Touch-Panel.
POWER SUPPLY
HSSB I/F BOARD
HSSB(COP7)
HDD FAN (CN7)
(CNH3)
HDD POWER (CN2B)
HSSB (COP7)
+24V INPUT (CP5)
KEY BOARD (CD32A)
MOUSE (CD32B)
232-1 (JD33)
232-2 (JD46)
CENTRO (JD9)
FDD (CD34)
FDD POWER(CN2)
PCI SLOT 1 (CNP1)
PCI SLOT 2 (CNP2)
COLOR LCD PANE
L
PCMCIA CARD SLO
T
PCMCIA
CARD
PANE
: Optical link Module & Cable
: AMP(Dynamic)
: AMP(mini-DIN6pins)
: HONDA TSUSHIN（PCR 20pins）
: HIROSE DENKI(Flat Cable34pins)
: HIROSE DENKI(Flat Cable40pins)
: AMP(EI Series 4pins)
: molex (5046-NA 3pin)
: Others
FULL KEYBOARD
MOUSE
I/O
USB
POWER
SUPPLY
POWER
SUPPLY
POWER SUPPLY(DC+24V)
*2
*2
*2
MOUSE
*2
FA FULL
KEYBOARD
3.5” HDD
Unit
FAN UNIT
*1
Separate MDI
(*1)
CNK1
Touch-Panel
CNC Control Unit
FLOPPY
DISK
DRIVE
PCI EXTENSION
BOARD
PCI EXTENSION
BOARD
PRINTER
POWER
SUPPLY
*2
Serial port 2
USB port 1,2
Serial port 1 (*3)
T
HE OTHER PCB
In case of 150i (JA2)
MDI or
In case of 160i,180i,210i
(JD45)
