Connecting and Maintenance Manual for Fanuc Panel I Additional Manual Page 59

Additional Manual
Connecting and Maintenance Manual
for FANUC Intelligent Terminal
EDIT
DRAW. NO.
CUST
TITLE
DESCRIPTION
DESIG.
DATE
A-81000E
56
/
SHEET
Protection
Sheet
Tab for exchange
Surface

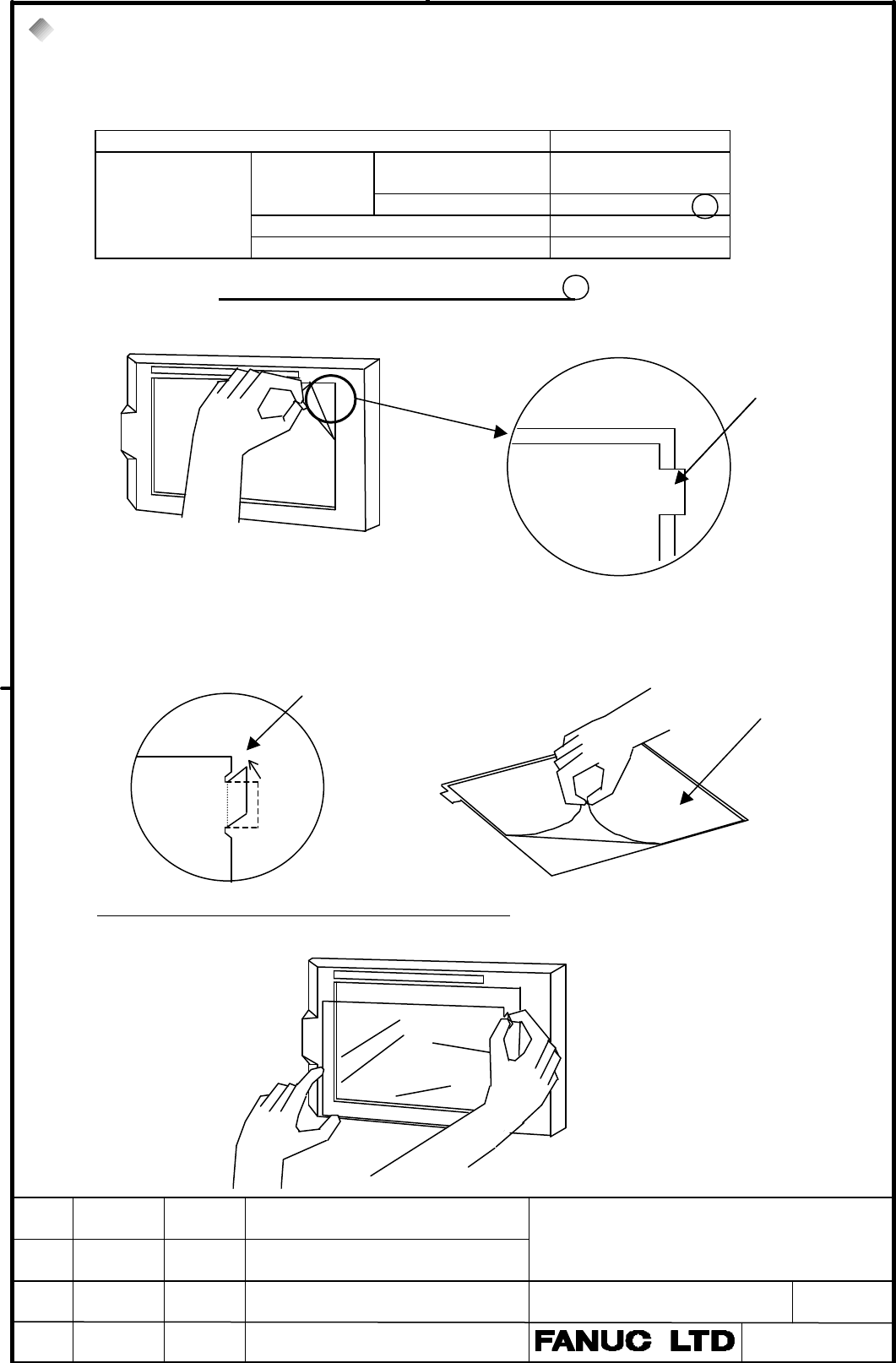

5.5. Method of Exchanging Touch Panel Protection Sheet
PANEL i has a Touch Panel Protection Sheet on the face of Touch Panel to protect the Touch Panel.
When the screen cannot be watched clearly because of some damages or stains, exchange the
Touch Panel Protection Sheet. Please prepare the following.
Name Specification
with Touch panel
and softkeys
A02B-0236-K110for 10.4”LCD
with Touch panel A02B-0236-K130
for 12.1”LCD A02B-0236-K118
Touch Panel
Protection Sheet
for 15.0”LCD A08B-0082-K020
How to exchange Refer to 79 page about A02B-0236-K130.
(1) At first, strip the old Touch Panel Protection Sheet off.
(2) Clean the face of the LCD well.
(3) Bend a tab for exchange to surface side in accordance with the following left-side picture.(At an
angle of about 60°)
(4) Strip the white film on the back of the new Touch Panel Protection Sheet (this side is to stick
on the LCD face) off.
(5) Put the tab on the upper right side of the new one, and stick it on the face of the LCD with care
not to be entered the dust or etc. between the LCD and the Touch Panel Protection Sheet as it
enters into the frame.
LCD side
T
ouch
Panel
Protection
Sheet
Tab for exchange
04 01.04.01 Sugitani All pages changed.
05 02.03.07 Sugitani Marked 5 added
5
5
