16. COORDINATE SYSTEM

CONVERSION

NC FUNCTION

115

Patterns specified by the program can be rotated. For example, by using

this function, when the attached workpiece comes in a position which is

somewhat rotated from the machine coordinates, the position can be

compensated by the rotation instruction.

If a pattern is similar to that made by rotating a programmed figure, the

program for the pattern can be created by calling the program for the figure

as a sub program, and rotating the coordinates in the program. This

function reduces the programming time and program length.

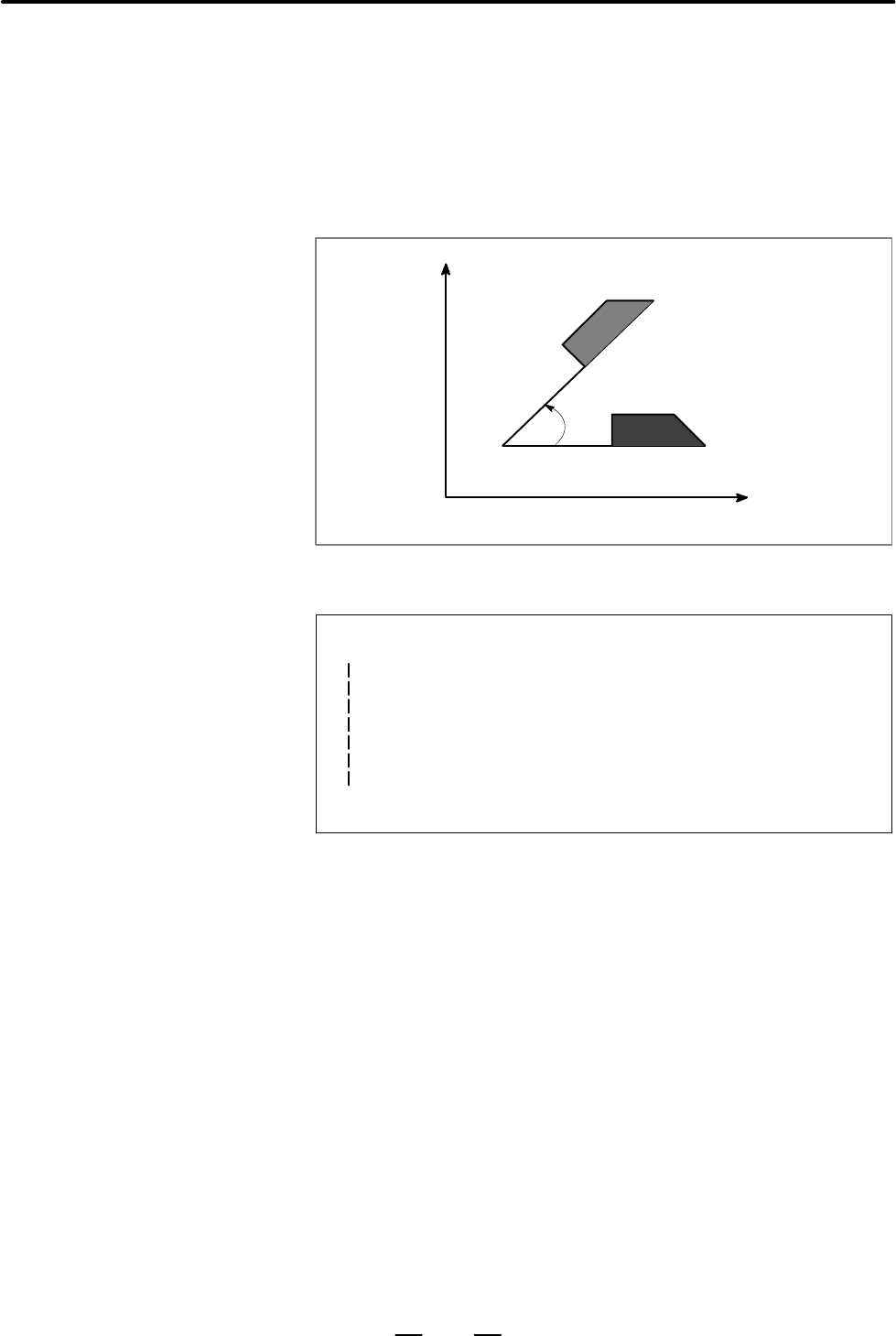

Rotation angle

Rotation

center

G84 X_ Y_ R_ ;

X, Y : Specify two axes from X, Y, Z axes of G17, G18, G19.

(These are always absolute values.)

R : Rotation (+ for the counterclockwise direction.

Specified in absolute value. It can be also specified

in incremental values according to the parameter setting. )

G85 ;

By this command, commands thereafter are rotated in the angle

commanded by R, with the point commanded by alpha, beta as the

rotation center. Rotation angle is commanded in 0.001 x units in a range

of:

–360000 x R x 360000

When X, Y is omitted, the point where G84 was commanded becomes the

rotation center.

G85; Cancels the coordinate system rotation.

16.1

COORDINATE

SYSTEM ROTATION

(G84, G85)

Format
