Series 16i/18i/160i/180i-PB Descriptions Page 257

Descriptions

Page of 330

/ 330

B–63682EN/01

29. SAFETY FUNCTIONS

NC FUNCTION

233

If the tool is positioned to the normal height (for punching), as shown

below, the tool will interfere with the workpiece holder when the

workpiece holder moves into the turret.

By means of this function, the CNC monitors the positions of the tool and

workpiece holder to avoid interference between the workpiece holder and

tool.

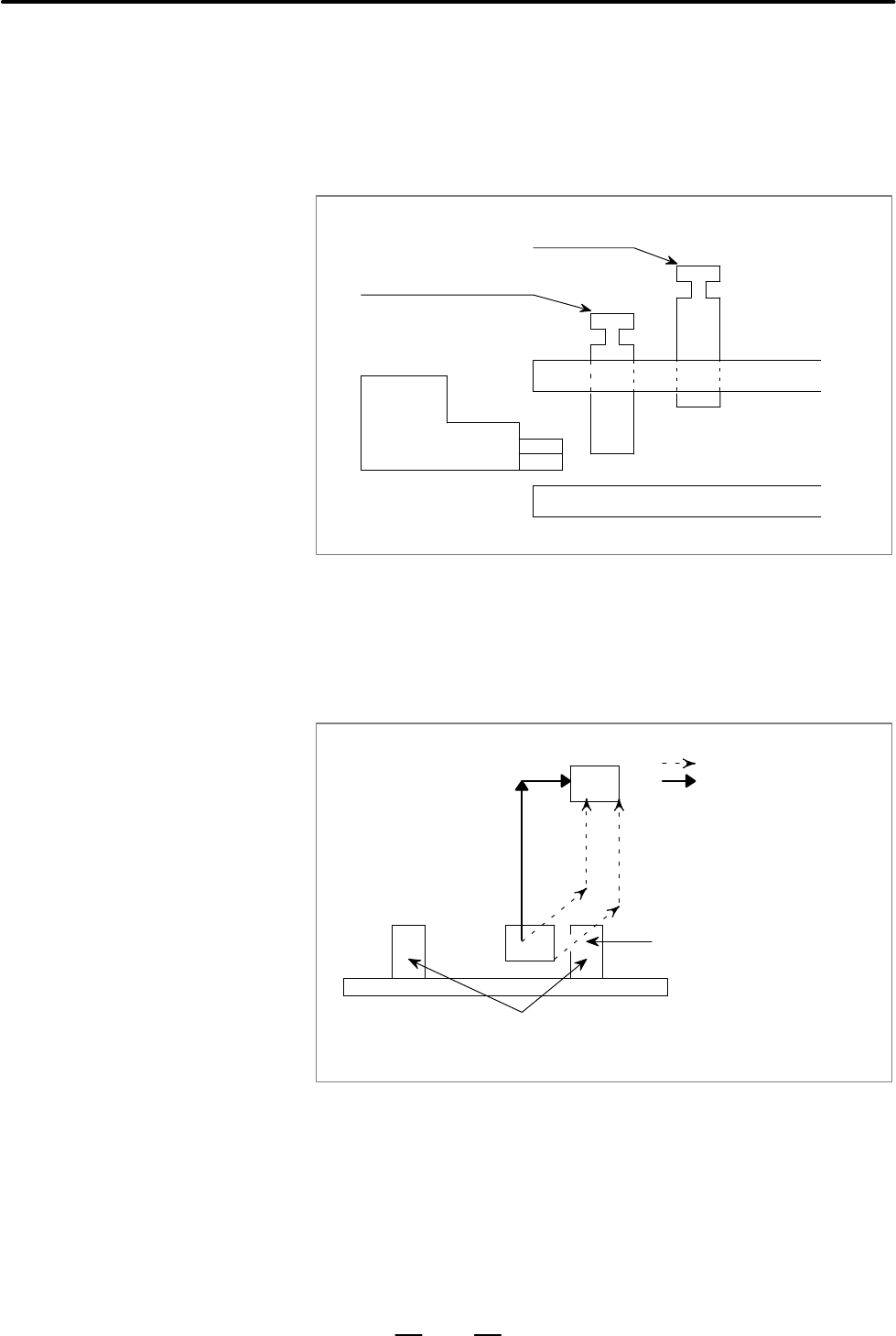

Tool status in punching

Workpiece holder

Upper Turret

Lower Turret

Tool escape status

Fig. 29.9 (a)

By setting bit 6 (ACZ) of parameter No. 16502, the user can select either

of two interference avoidance methods.

1 Type A: Interference is avoided by the PMC, by using the DI/DO

signals.

2 Type B: Interference is automatically avoided by the CNC.

: Usual positioning

: Positioning by avoidance

operation

Tool

Interference

Area for workpiece holder

Fig. 29.9 (b)

29.9

WORKPIECE

HOLDER

INTERFERENCE

AVOIDANCE

FUNCTION
