16. COORDINATE SYSTEM
CONVERSION
NC FUNCTION
117
A scaling magnification can be set for each axis or for all axes in common.
A parameter can specify whether it should be set for each axis or for all
axes.
X_Y_ : Absolute command of
center coordinate value of
scaling
I_J_ : Magnification of scaling
of X axis and Y axis
(Unit 0.001 or 0.00001 is
selected according to
the parameter.)
The magnification which can be
instructed is as follows.
"0.0001–"9.99999 or
"0.001–"9. 999
G51 X_ Y_ I_ J_ ;
G50 ;
Scaling of each axis (Mirror image)
Format Sign explanation
Scaling
start
Scaling is effective.
(Scaling mode)
Scaling cancellation
If magnifications I, J, or K are not specified, the magnification of each axis
set by a parameter is used.
a
b
c
d

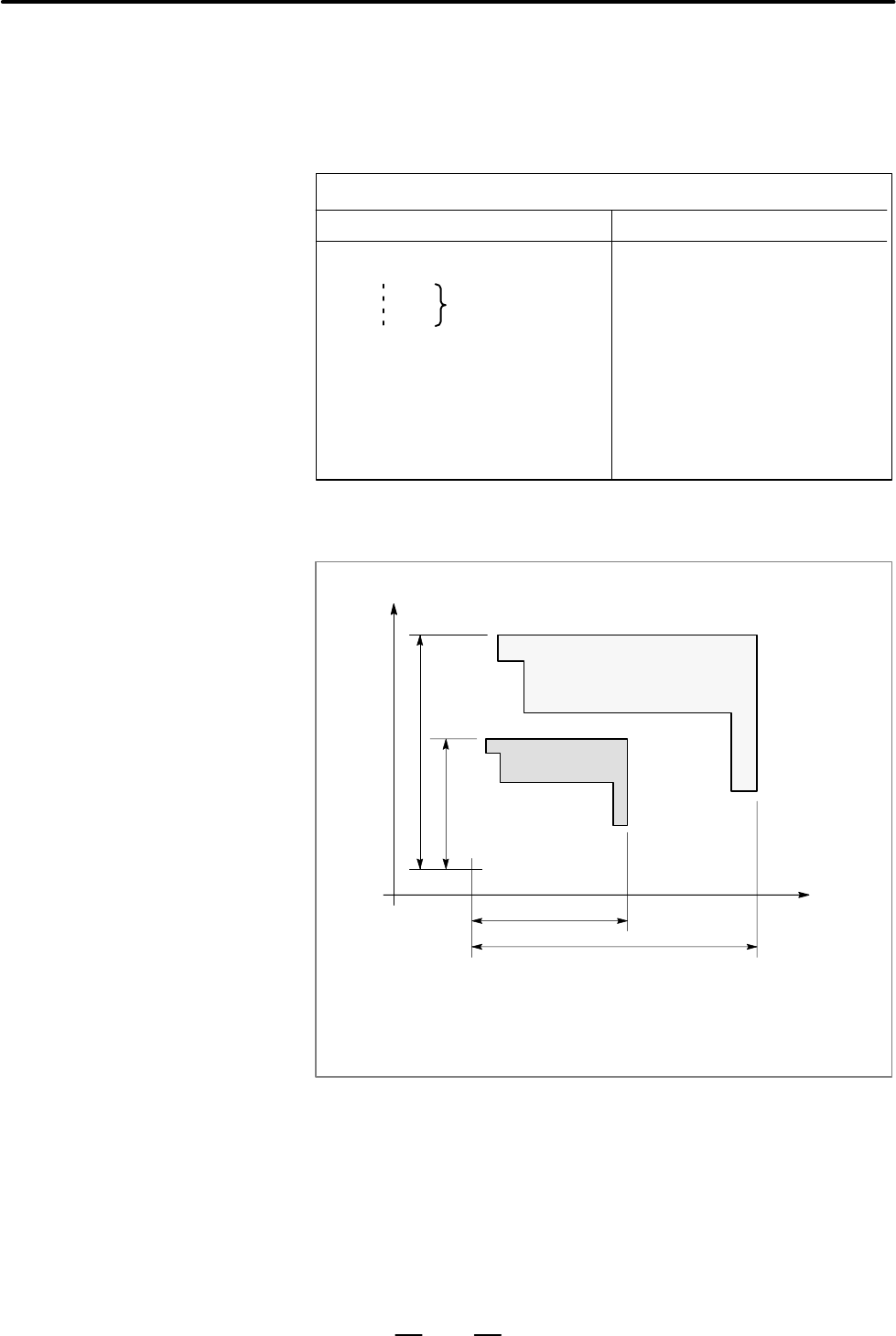

Profile of machining program
Profile after
scaling
0
Y axis
X axis
a/b : X-axis scaling magnification
c/d : Y-axis scaling magnification
o : Center of scaling
Format
Previous page
Next page
