24. SETTING AND DISPLAY UNIT
B–63682EN/01
NC FUNCTION
168
No. FunctionKey
(10)

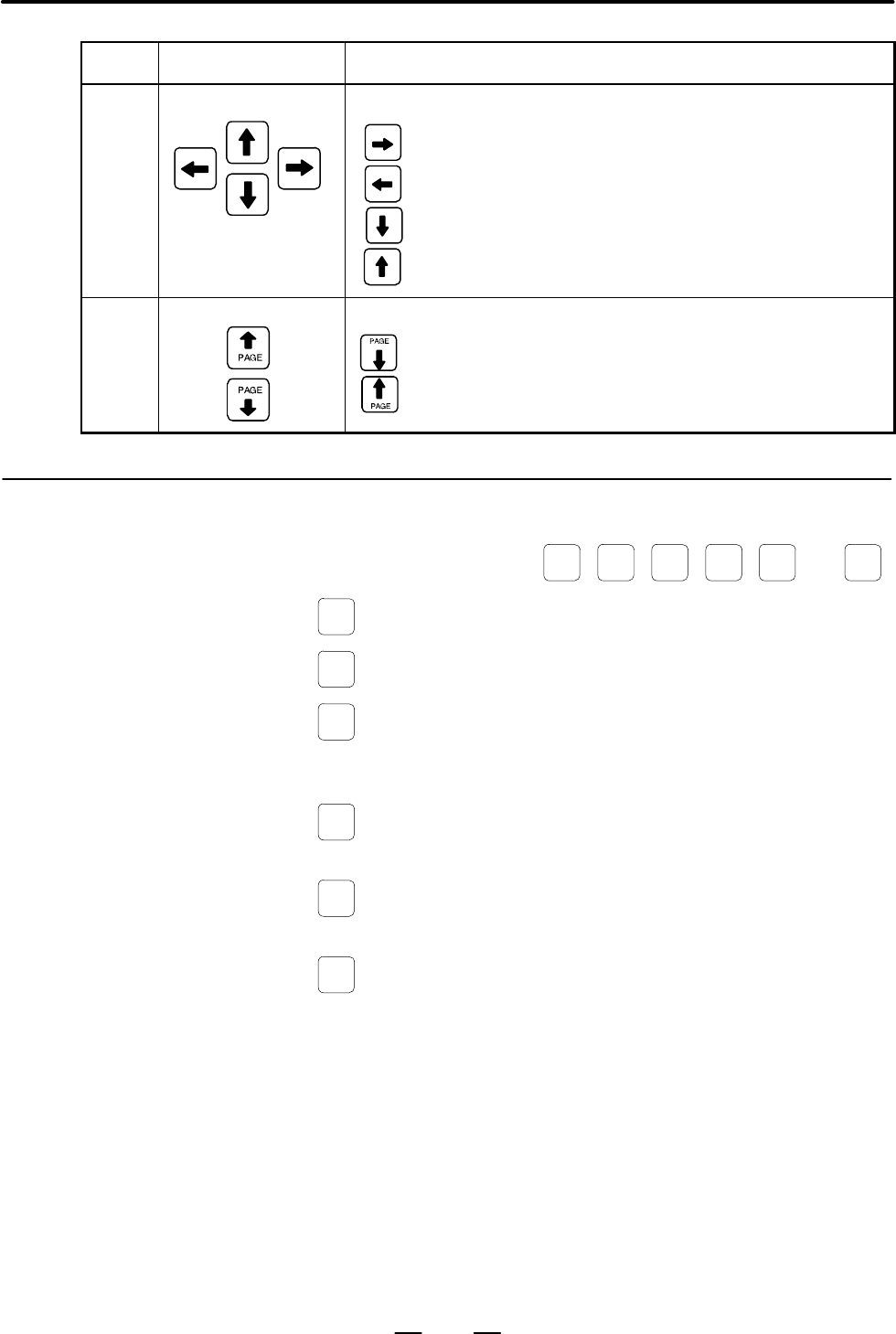

Cursor keys Four cursor keys are provided.
: Moves the cursor to the right or forwards in small units.
: Moves the cursor upward or backwards in large units.
: Moves the cursor downward or forwards in large units.
: Moves the cursor to left or backwards in small units.
(11)
Page-up/down keys Page-up and page-down keys are provided.
: Used to display the next page.
: Used to display the previous page.
The function keys select what is displayed. Each function is divided into
sub-functions, and the sub-functions are selected by soft keys.
There are six function keys :
POS
,
PROG
,
OFFSET
SETTING
,
SYSTEM
,
MESSAGE
, and
GRAPH
.
POS
: Displays the current position.
PROG
: Displays and edits a program stored in memory.
OFFSET
SETTING
: Displays an offset value, offset from the workpiece zero point,
custom macro variable, and tool life management data. Allows
data to be input into these items.
SYSTEM
: Displays and sets a parameter and pitch error compensation
value, and displays self diagnostic data.
MESSAGE
: Displays an alarm message, external operator message, external
alarm message, and alarm history.
GRAPH
: Displays graphic data.
24.2.1
Explanation of the
Function Keys
