Operator Panels for i Series Controls Operators manual Page 28

Operators manual
1-16
Note
Example of Power Mate i-D or i-H motion controller +24VDC power interconnections. When used
with the PC based DPL/MDI Operation Package, Portable LCD/MDI Unit, or in Open System
configuration. The optional LCD/MDI Unit or CRT/MDI Unit may not be present. Required
+24VDC connectors to allow assembly of the above cables; by the machine tool builder, are
included with Power Mate related hardware. i-Series Cable Kit may be ordered separately by the
machine tool builder if cable lengths are determined to suit the application.

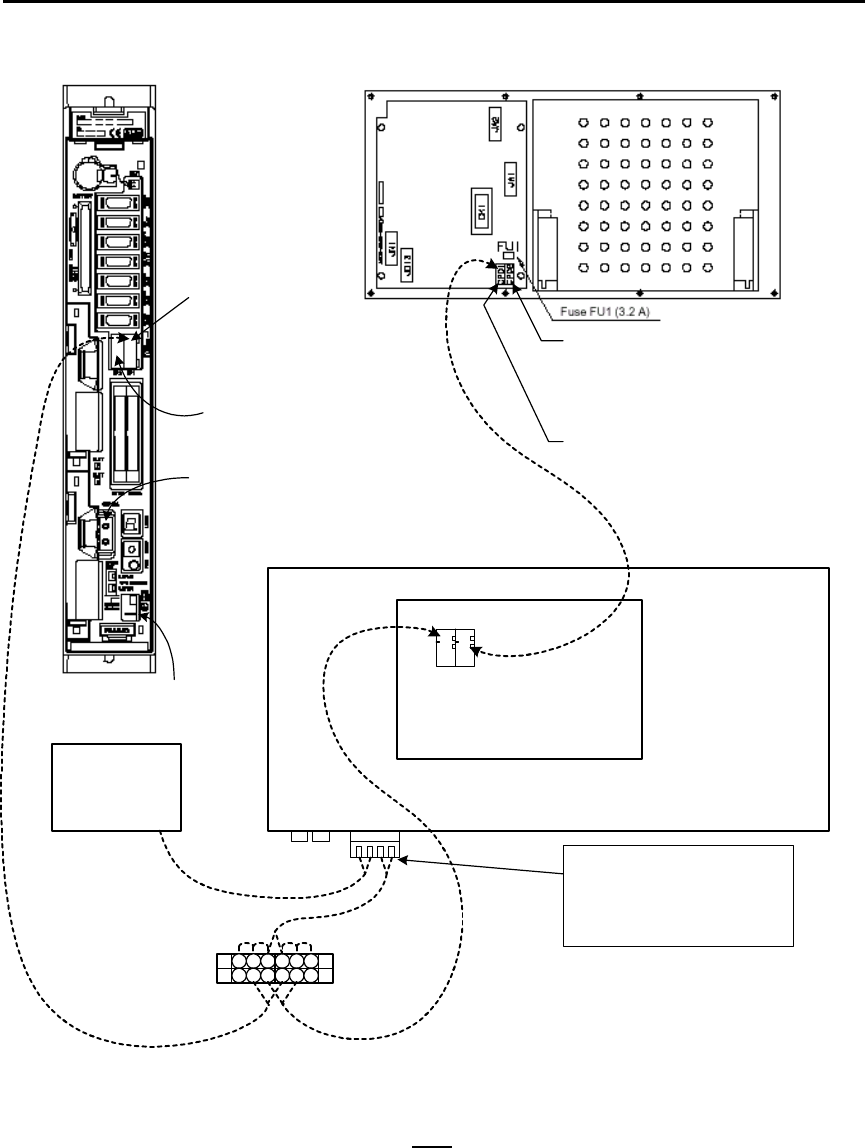

Figure 1-7. Power Mate i Models D and H Stand-Alone Type Control
CPD1 +24VDC SW Input to Panel
CP1 +24VDC SW Input
(Right most connector)
CP2 +24VDC SW Output to
Model A I/O, Seperate
Detector Module, etc...
(Left most connector)
Power Mate
Control Unit
PL1
PL3PL4
CPD1
Operator Panel
Connection Unit
A20B-2002-0470
Operator Panel
Printed Circuit
Board
OPND1
44A739613-G01
GE Fanuc NA
Series i Operator Panel
( Back View )
Pin 3 - Open
Pin 2 - 0V
Pin 1 - +24V SW
1 2 3 4
PL1-1 +24VDC Input
PL1-2 0VDC Input
PL1-3 0VDC Switched Out
PL1-4 +24VDC Switched Out
Optional LCD/MDI or CRT/MDI Unit
(Rear View)
COP10A
FSSB
Frame Ground
X X
XY
Pin 3 - Open
Pin 2 - 0V
Pin 1 - +24V SW
CPD2 +24VDC SW Output to LCD/CRT.
CPD2 is prewired on CRT/MDI or LCD/MDI
combined Panels. Customer wired when
using seperate type CRT/LCD display with
seperate MDI unit.
X
OEM Supplied
+24VDC Power
Supply
OEM Supplied
Terminal Strip for
Distribution of Switched
+24VDC
+24VDC Switched to Operator Panel,
and to CRT-LCD/MDI Unit
+24VDC Switched to Power
Mate i D/H & I/O Devices
If optional LCD/MDI or CRT/MDI unit is not used. A +24VDC
SW cable may be run from Operator Panel CPD1 to CP1 on
the Power Mate i, eliminating the distribution terminal strip.
Pin 1 - +24V SW
Pin 2 - 0V
Pin 3 - Open
