PROGRAMMING

B–63604EN/01

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

159

The canned cycle for drilling simplifies the program normally by

directing the machining operation commanded with a few blocks, using

one block including G code.

Following is the canned cycle table.

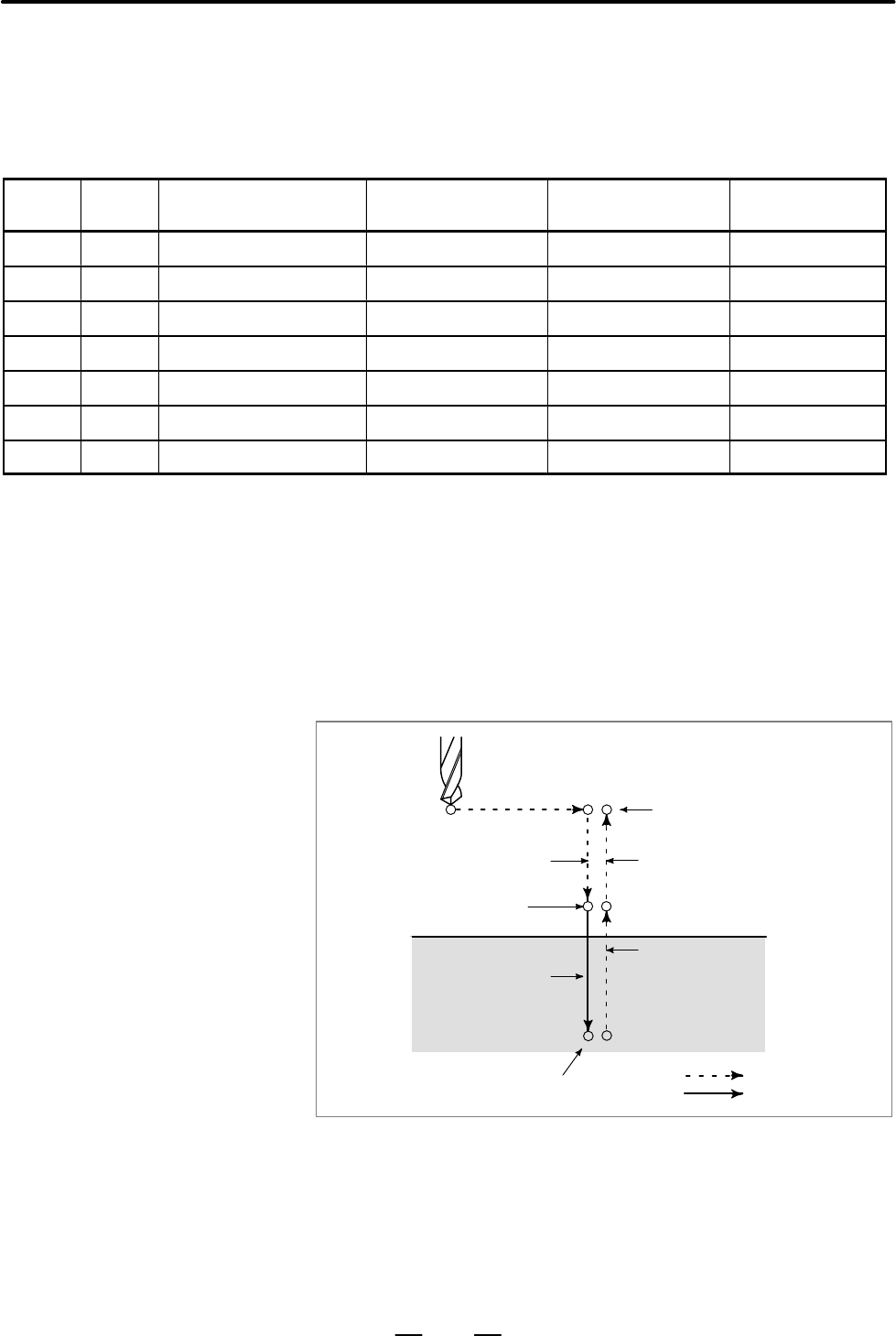

Table 13.3(a) Canned cycles

G code

Drilling

axis

Hole machining

operation (– direction)

Operation in the

bottom hole position

Retraction operation

(+ direction)

Applications

G80 ____ _____ _____ ___ Cancel

G83 Z axis Cutting feed / intermittent Dwell Rapid traverse Front drilling cycle

G84 Z axis Cutting feed Dwell→spindle CCW Cutting feed Front tapping cycle

G85 Z axis Cutting feed _____ Cutting feed Front boring cycle

G87 X axis Cutting feed / intermittent Dwell Rapid traverse Side drilling cycle

G88 X axis Cutting feed Dwell→Spindle CCW Cutting feed Side tapping cycle

G89 X axis Cutting feed Dwell Cutting feed Side boring cycle

In general, the drilling cycle consists of the following six operation

sequences.

Operation 1 Positioning of X (Z) and C axis

Operation 2 Rapid traverse up to point R level

Operation 3 Hole machining

Operation 4 Operation at the bottom of a hole

Operation 5 Retraction to point R level

Operation 6 Rapid traverse up to the initial point

Operation 1

Operation 2

Operation 3

Operation 4

Operation 5

Operation 6

Rapid traverse

Feed

Initial level

Point R level

Fig. 13.3 Drilling cycle operation sequence

13.3

CANNED CYCLE FOR

DRILLING (G80 – G89)
