MAINTENANCE

B–63604EN/01

1. METHOD OF REPLACING BATTERY

689

If a lithium battery is used, have A02B–0200–K102 (FANUC internal

code: A98L–0031–0012) handy.

(1)Turn the CNC on. About 30 seconds later, turn the CNC off.

(2)Remove the battery from the top area of the CNC unit.

Disconnect the connector first. Then, remove the battery from the

battery case.

The battery case is provided in the top area of the face plate of the main

CPU board.

(3)Replace the battery, then connect the connector.

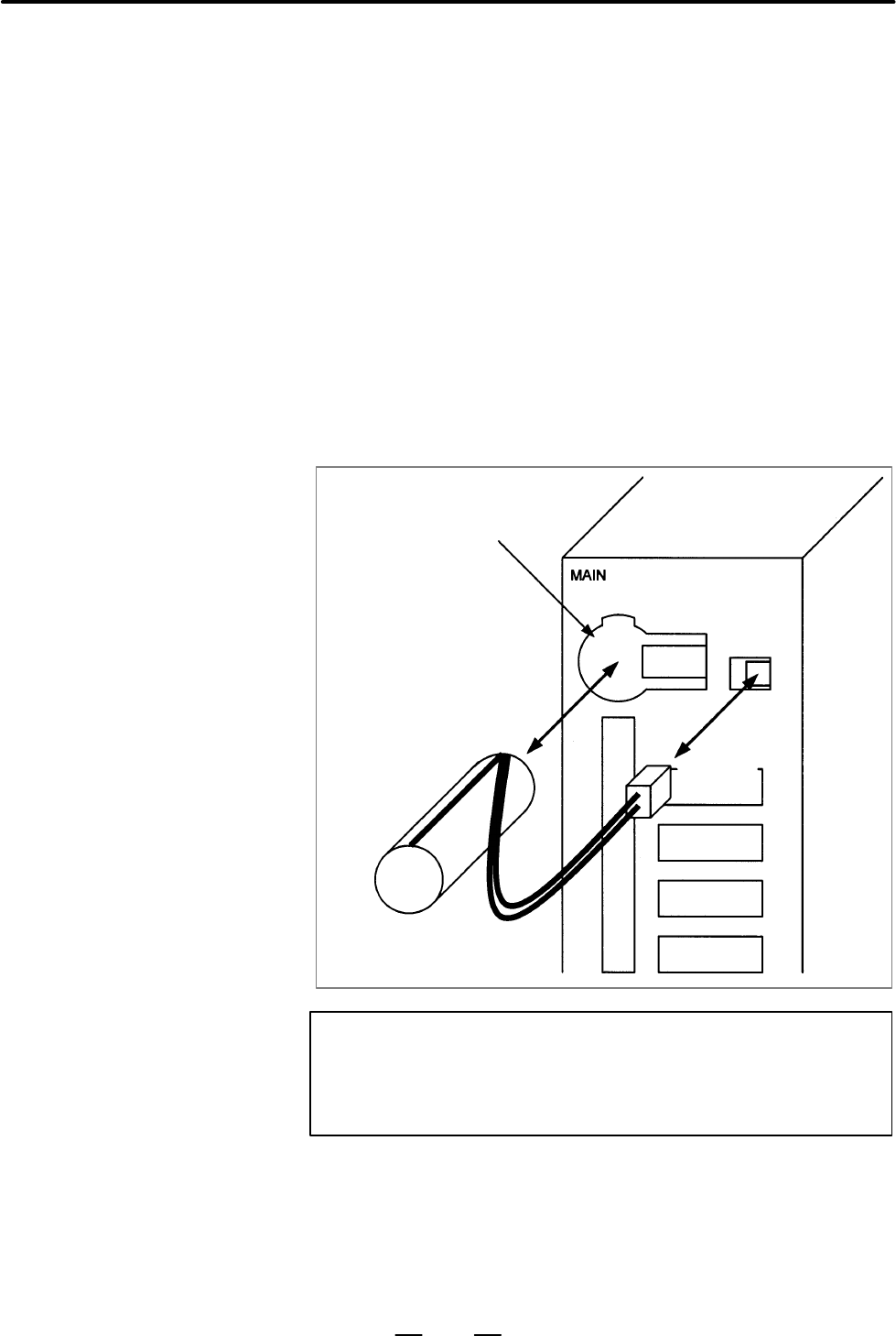

Battery case

Lithium battery

A02B–0200–K102

Connector

WARNING

The incorrect mounting of the battery may cause an

explosion. Avoid using any battery other than the one

specified here (A02B–0200–K102).

1.2

REPLACING THE

BATTERY FOR

STAND–ALONE TYPE

i SERIES

D Replacing the battery
