Order Specification for Servo HRV3 Function Additional Manual Page 15

Additional Manual
Edit. DATE Design
Description
DRAW. NO.
A-65428E
CUST.
01 00/08/22
New issue
SATOU
FANUC Series 15i
Order specification for Servo
HRV3
SHEET
14 /
17
TITLE

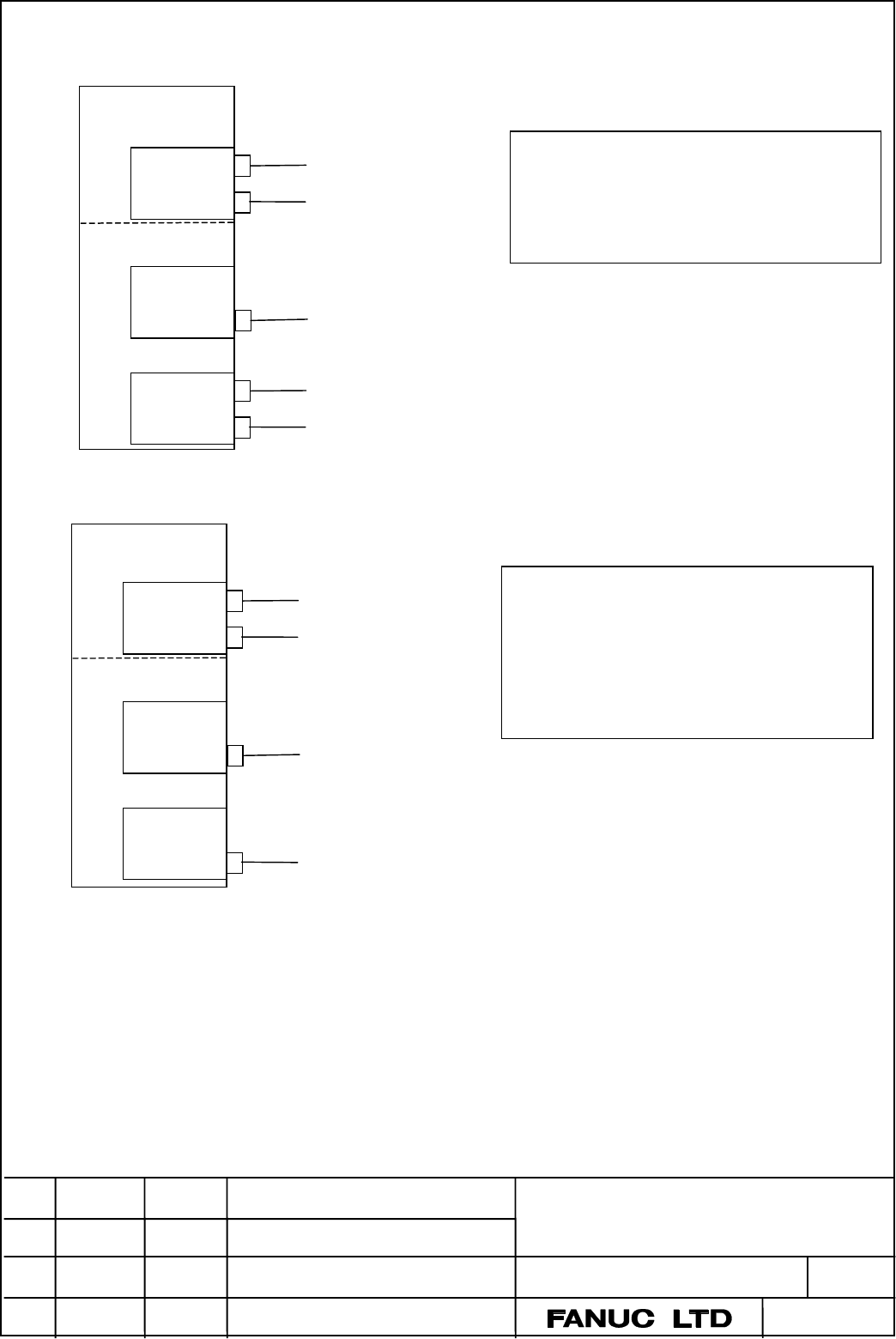

COP10A-2
COP10A-1
Main CPU
Additional axis
COP10A-2
COP10A-1
Type B servo control
card
Type A servo control
card
5th FSSB line
1st FSSB line
2nd FSSB line
High speed HRV current control can be used in five
FSSB lines. (Total 20 axes)
If more than five axes are connected to 5th FSSB line,
high speed HRV current control cannot be used.
Please set High speed HRV current control from 1st
FSSB line sequentially.
Please refer to item3.
COP10A-2
COP10A-1
Type B servo control
card
3rd FSSB line
4th FSSB line
•
CASE2 (In case of High speed HRV current control adapted to 9-20 axes)
4 axes
4 axes
1-8 axes ( In case of using high speed HRV current control
maximum controlled axes are 4.)
4 axes
4 axes
COP10A-2
COP10A-1
Main CPU
Additional axis
COP10A-2
COP10A-1
Type B servo control
card
Type A servo control
card
5th FSSB line
1st FSSB line
2nd FSSB line
High speed HRV current control can be used in two
FSSB lines. (Total 8 axes)
In 1st and 2nd FSSB lines, high speed HRV current
control can be used.
In 3rd and 5th FSSB lines, high speed HRV current
control cannot be used.
Please set High speed HRV current control from 1st
FSSB line sequentially.
Please refer to item3.
COP10A-2
COP10A-1
Type A servo control
card
3rd FSSB line
•
CASE 3 (In case of High speed HRV current control adapted to 1-8 axes. )
8 axes
4 axes
1-8 axes ( In case of using high speed HRV current control
maximum controlled axes are 4.)
4 axes
