Order Specification for Servo HRV3 Function Additional Manual Page 4

Additional Manual
Edit. DATE Design
Description
DRAW. NO.
A-65428E
CUST.
01 00/08/22
New issue
SATOU
FANUC Series 15i
Order specification for Servo
HRV3
SHEET
3 /
17
TITLE
3. Condition of FSSB line in case of using high speed HRV current control
3-1.The amplifier for high speed HRV current control is necessary in case of using high speed HRV
current control. And it is necessary that the all amplifiers and the Separate Detector I/F units which,
are connected in a FSSB line for high speed HRV current control, are available to Servo HRV3.
3-2. The maximum total number of axis in a FSSB line which is used the high speed HRV current
control is 4. When the total number of axis and Separate Detector I/F unit in FSSB line which is used
high speed HRV current control is 5. When high speed HRV current control is used with the system
more than five axes, the type B servo control card, this card has two FSSB lines, is necessary. The
four controlled axes and one Separate Detector I/F unit can be connected with a FSSB line, which is
used high speed HRV current control. It is possible that the eight axes are controlled in two FSSB
lines.
In case of the servo control cards for servo HRV3 are used, it is necessary that the Separate
Detector I/F unit is available the servo HRV3 whether the high speed HRV current control is used or
not used.

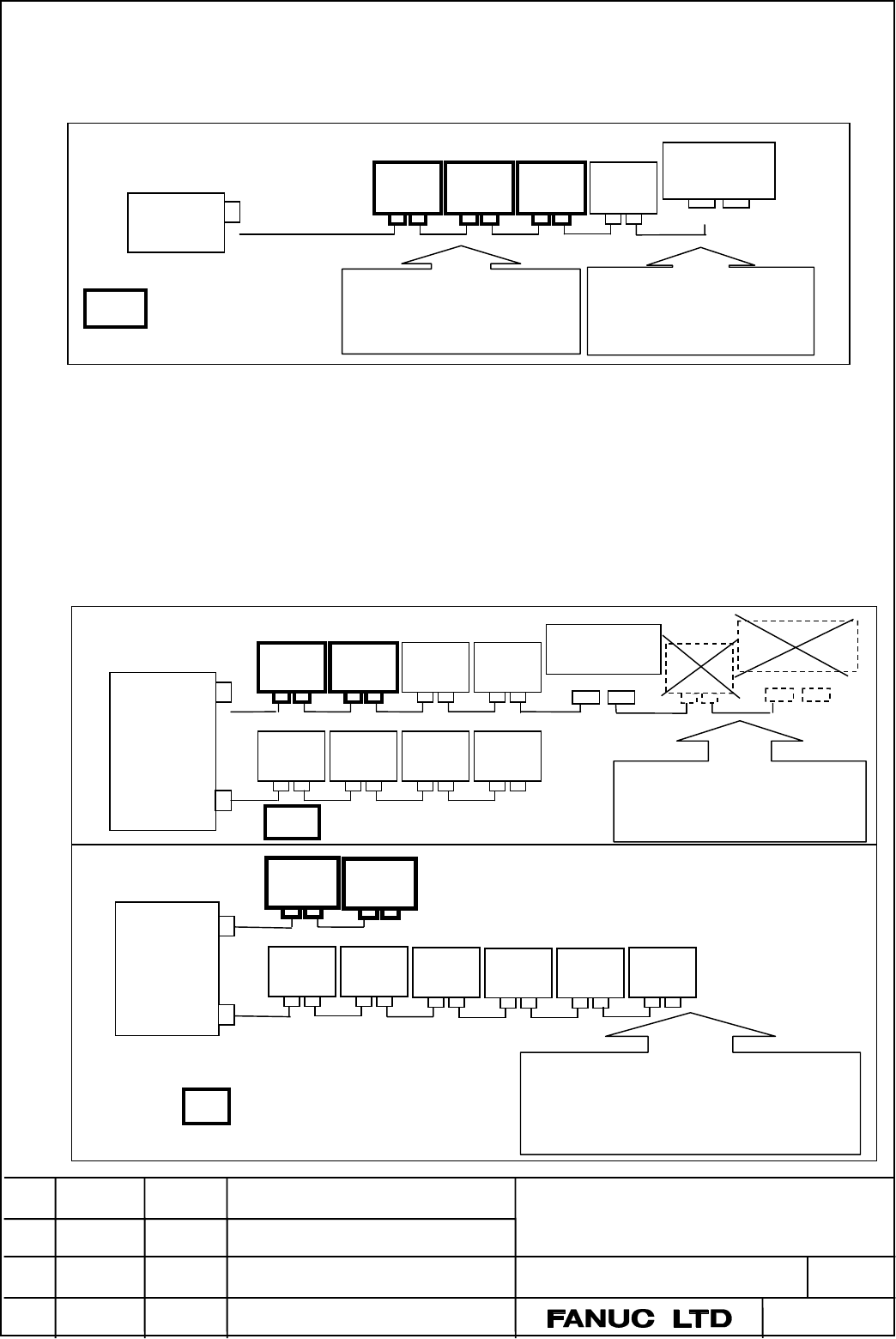

1st axis
COP10A-1
2nd axis 3rd axis
4th axis
Separate Detector
I/F unit
The amplifier is set the high
speed HRV current control.
It is necessary that the amplifier,
which is set the high speed HRV
current control, is available the high
speed HRV current control
It is necessary that the amplifier,
which is not set the high speed HRV
current control, is available the
Servo HRV3.
The present unit cannot be used
in this FSSB line.
Servo control card
1st axis
COP10A-1
COP10A-2
2nd axis
3rd axis 4th axis
5th axis 6th axis 7th axis 8th axis
5th axis
The maximum total number of axis in
FSSB line, which is used the high speed
HRV current
control, is 4.(5 slaves)
The amplifier is set the high speed
HRV current control.
Type B
Servo control card
Separate Detector
I/F unit
Separate Detector
I/F unit
3rd axis
COP10A-1
COP10B-2
4the axis
1st axis
2nd axis
5th axis
The amplifier is set the high speed
HRV current control.
6th axis 7th axis
8th axis
The maximum total number of axis in FSSB line, which
is not used the high speed HRV current
control, is 8.
(10 slaves). It is not possible to connect the amplifier
over the limit of axes number for servo control card.
Type B
Servo control card
