Order Specification for Servo HRV3 Function Additional Manual Page 18

Additional Manual
Edit. DATE Design
Description
DRAW. NO.
A-65428E
CUST.
01 00/08/22
New issue
SATOU
FANUC Series 15i
Order specification for Servo
HRV3
SHEET
17 /
17
TITLE
6
.
Maintenance
6-1. Axis control P.C.B for Servo HRV3
Name Specification Remark
Axis control card
for 2 axes
A20B-3300-0243 A02B-0261-J311, J315, J325 type A
A20B-3300-0242 A02B-0261-H072, J312, J316, J336 Type AAxis control card
for 4 axes
A20B-3300-0248 A02B-0261-H076, J322, J326 Type B
A20B-3300-0241 A02B-0261-H073, J313, J317, J337 Type AAxis control card
for 6 axes
A20B-3300-0245 A02B-0261-H077, J323, J327 Type B
A20B-3300-0240 A02B-0261-H074, J314, J315, J316,
J317, J318, J338
Type AAxis control card
for 8 axes
A20B-3300-0244 A02B-0261-H078, J324, J325, J326,
J327, J328, J336, J337, J338
Type B

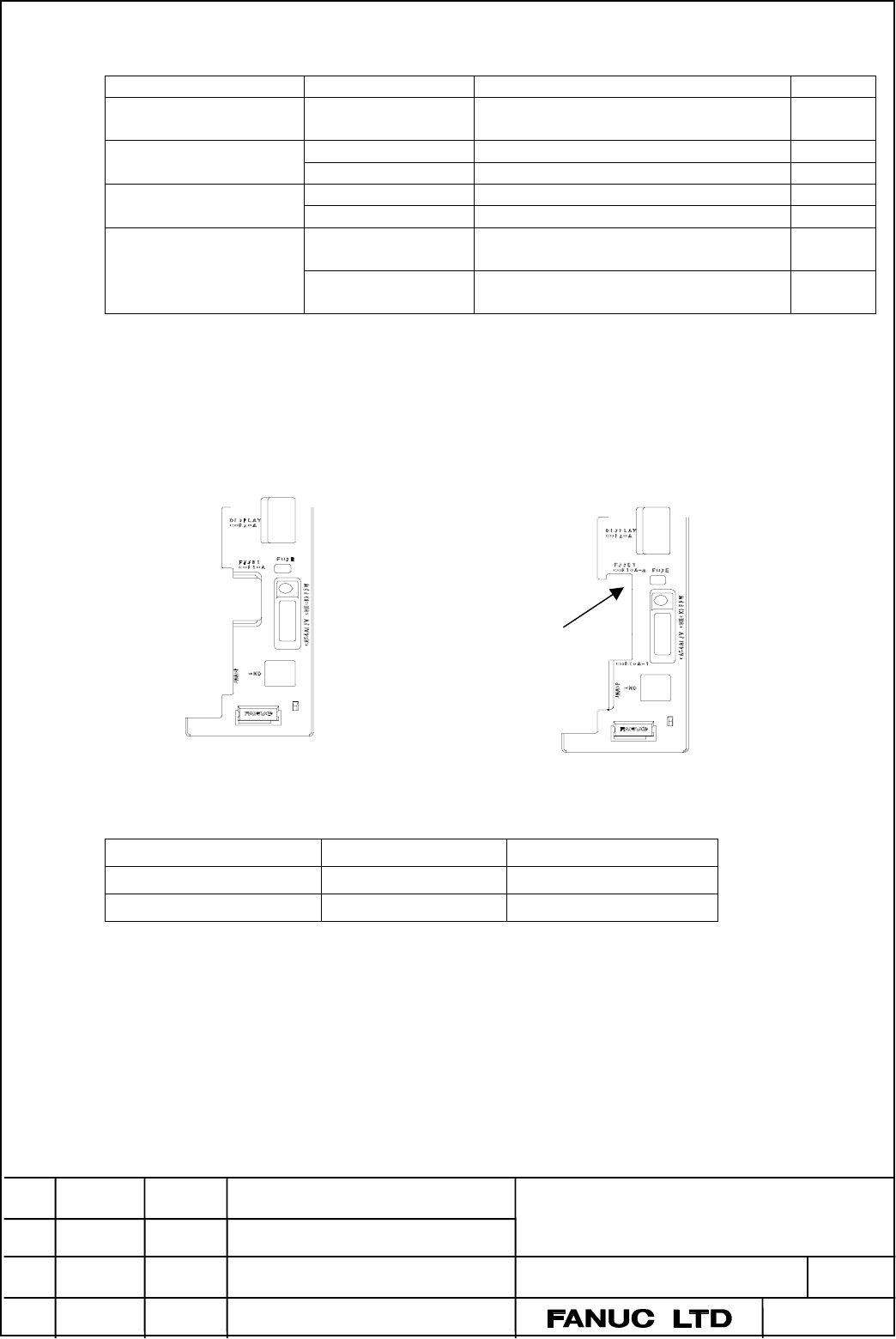

6-2. Main CPU board and addition axis board
The servo control card for servo HRV3 cannot be mount on the old Main CPU board which has already
been shipped, because the cutting lack part on face plate for optical connectors are small for new the
servo control card. The faceplate of the Main CPU and the Additional axis board has been revised
because the faceplates are adapted to servo control card for servo HRV3.
It is a faceplate for new axes control card like a right picture that the cutting lack part is large.
The available edition of Main CPU board or Additional axis board are followings.
Name Specification Application edition
Main CPU board A16B-3200-0300 08D or newer
Additional axes board A16B-2203-0340 03B or newer
The faceplate of the Main CPU and the Additional axis board has been revised because the faceplates
are adapted to axis control card for servo HRV3.
It is a faceplate for new axes control card like a right picture that the cutting lack part is large.
The blank panel for mini slot and faceplate of mini slot option board are revised too.
The optical cable cannot be detached with the option board or blank panel mounted when the old
option board or the blank is used.
For Servo HRV3
This cutting lack part
