Order Specification for Servo HRV3 Function Additional Manual Page 9
Additional Manual
Edit. DATE Design
Description
DRAW. NO.
A-65428E
CUST.
01 00/08/22
New issue
SATOU
FANUC Series 15i
Order specification for Servo
HRV3
SHEET
8 /
17
TITLE

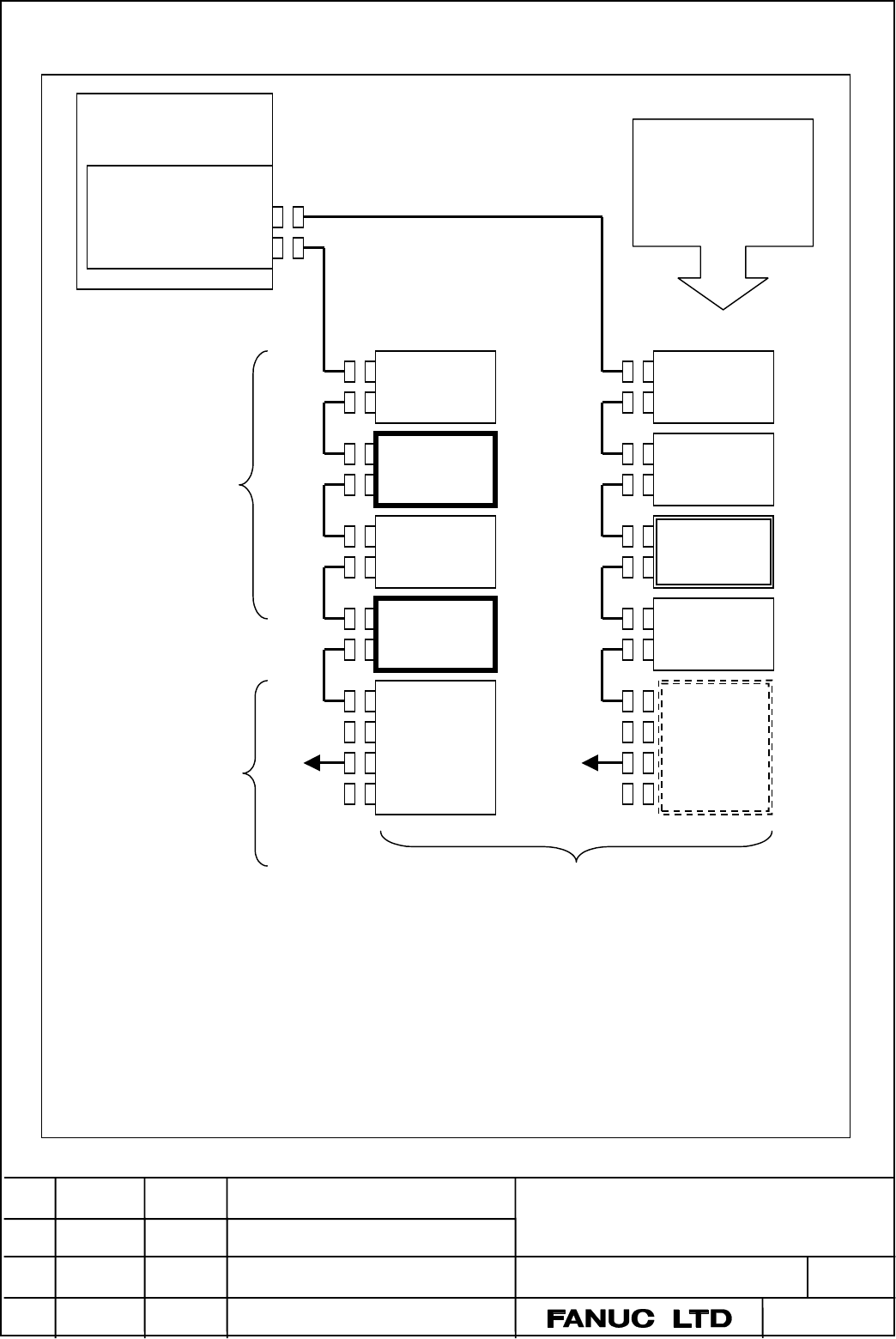

4-2. Example. In case of using high speed HRV present control with the present unit
Current
am
p
lifier
CNC Main CPU
or Additional axis board
Type B Servo control card
COP10A2
COP10A1
COP10B (1)
COP10A
COP10B (2)
COP10A
COP10B (3)
COP10A
COP10B (4)
COP10A
COP10B
COP10A
CP11A
CNF1
DC24V
COP10B (5)
COP10A
COP10B (6)
COP10A
COP10B (7)
COP10A
COP10B (8)
COP10A
DC24V
•
The maximum total number of axis in High speed HRV current control line is 4.
•
The maximum total number of axis and Separate Detector I/F unit in high speed HRV current control line is 5.
•
When the total number of axis and Separate Detector I/F unit in High speed HRV current control line is 5, the Separate
Detector I/F unit should be terminal unit.
•
The max total number of axis, which is controlled by one servo card, is 8.
•
The max total number of axis and separate detector I/F unit, which are controlled by one servo card, is 10.
•
The servo amplifier from (1) to (2) axis can be connected to the servo control card for two axes.
•
The type B card should be required.
•
The servo amplifier (1),(2),(5) and (6) can be connected to the servo control card for four axes.
•
The servo amplifier from (1) to (6) can be connected to the servo control card for six axes.
•
The pair axis must be connected to the same FSSB line. (The pair axis is 1st axis and 2nd axis, 3rd axis and 4th axis,
5th axis and 6th axis, 7th axis and 8th axis.)
Servo amplifier
•
In this case, all axes are
controlled by the single
axis amplifiers. The total
axis number is 8.
The amplifier with dual line
frame is the present one
and other amplifier is one
for servo HRV3 or for high
speed HRV current
control.. The High speed
HRV current control is set
the axes with bold frame.
The all units in the 1st
FSSB line are available for
HRV3.
The figures with () are axis
number.
Separate detector I/F
unit :
This unit should be the
one for Servo HRV3.
2nd, 4th, 6th FSSB line optical fiber
cable
1st, 3rd, 6th FSSB line optical fiber
cable
This line include current
unit . Therefore, the axis
in this line can not be
adopted to High speed
HRV.
High speed
HRV
High speed
HRV
Separate
detector I/F
unit
•
for HRV3
Separate
detector
I/F unit
•
Current
unit
COP10B
COP10A
CP11A
CNF1
