ALPHA Series Servo Amplifier Module (SVM) With FSSB Startup Guide Page 61

Startup Guide
I

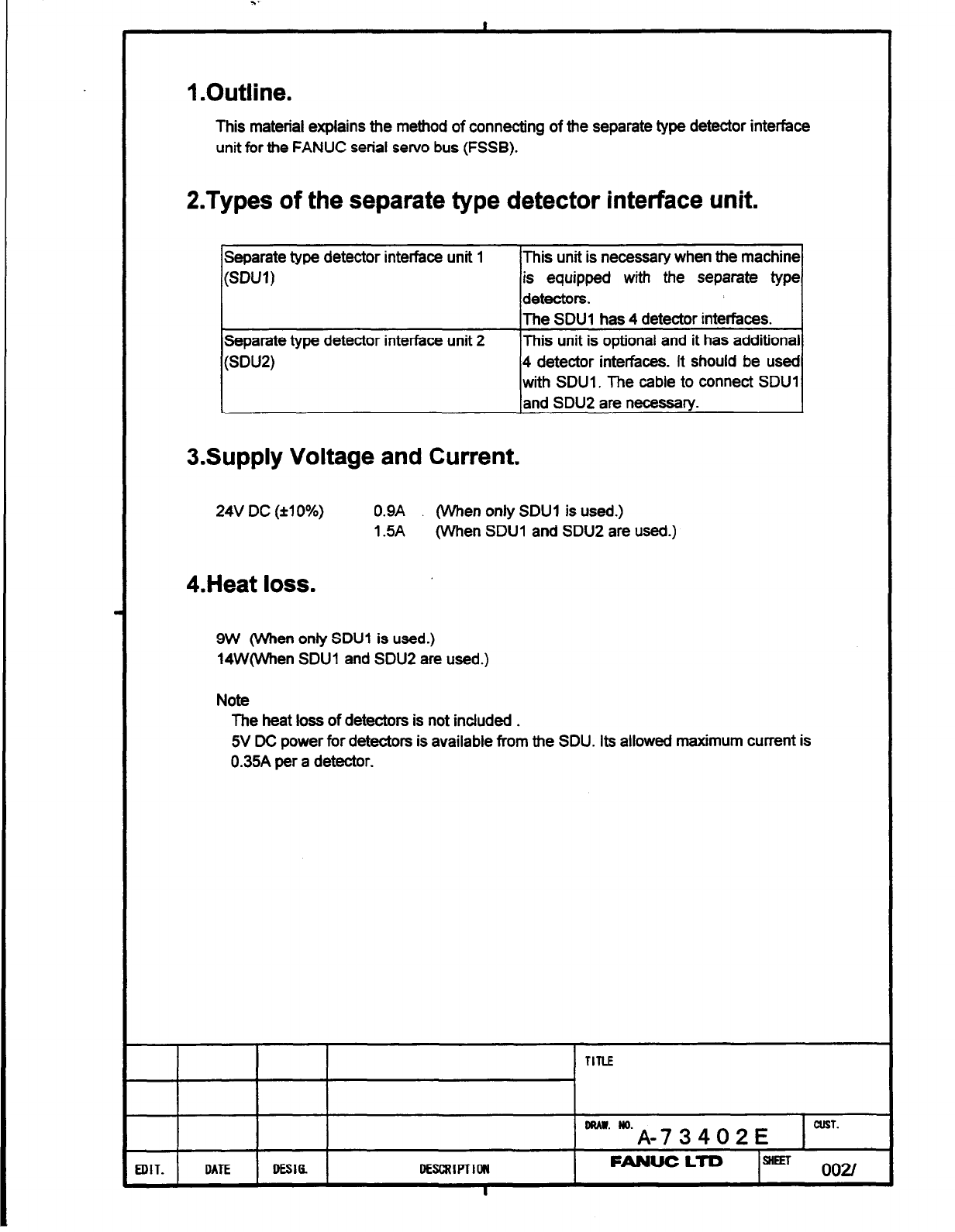

1 .Outline.
This material explains the method of connecting of the separate type detector interface
unit for the FANUC serial servo bus (FSSB).
P.Types of the separate type detector interface unit.
Separate type detector interface unit 1 This unit is necessary when the machine
(SDUl)
is equipped with the separate type
detectors.
The SDUl has 4 detector interfaces.
Separate type detector interface unit 2
This unit is optional and it has additional
(SDU2)
4 detector interfaces. It should be used
with SDUl. The cable to connect SDUl
and SDU2 are necessary.
3.Supply Voltage and Current.
24V DC (*I 0%)
0.9A (When only SDUl is used.)
1 SA (When SDUl and SDU2 are used.)
4.Heat loss.
9W (When only SDUl is used.)
14W(When SDUl and SDU2 are used.)
Note
The heat loss of detectors is not included .
5V DC power for detectors is available from the SDU. Its allowed maximum current is
0.35A per a detector.
