ALPHA Series Servo Amplifier Module (SVM) With FSSB Startup Guide Page 8

Startup Guide

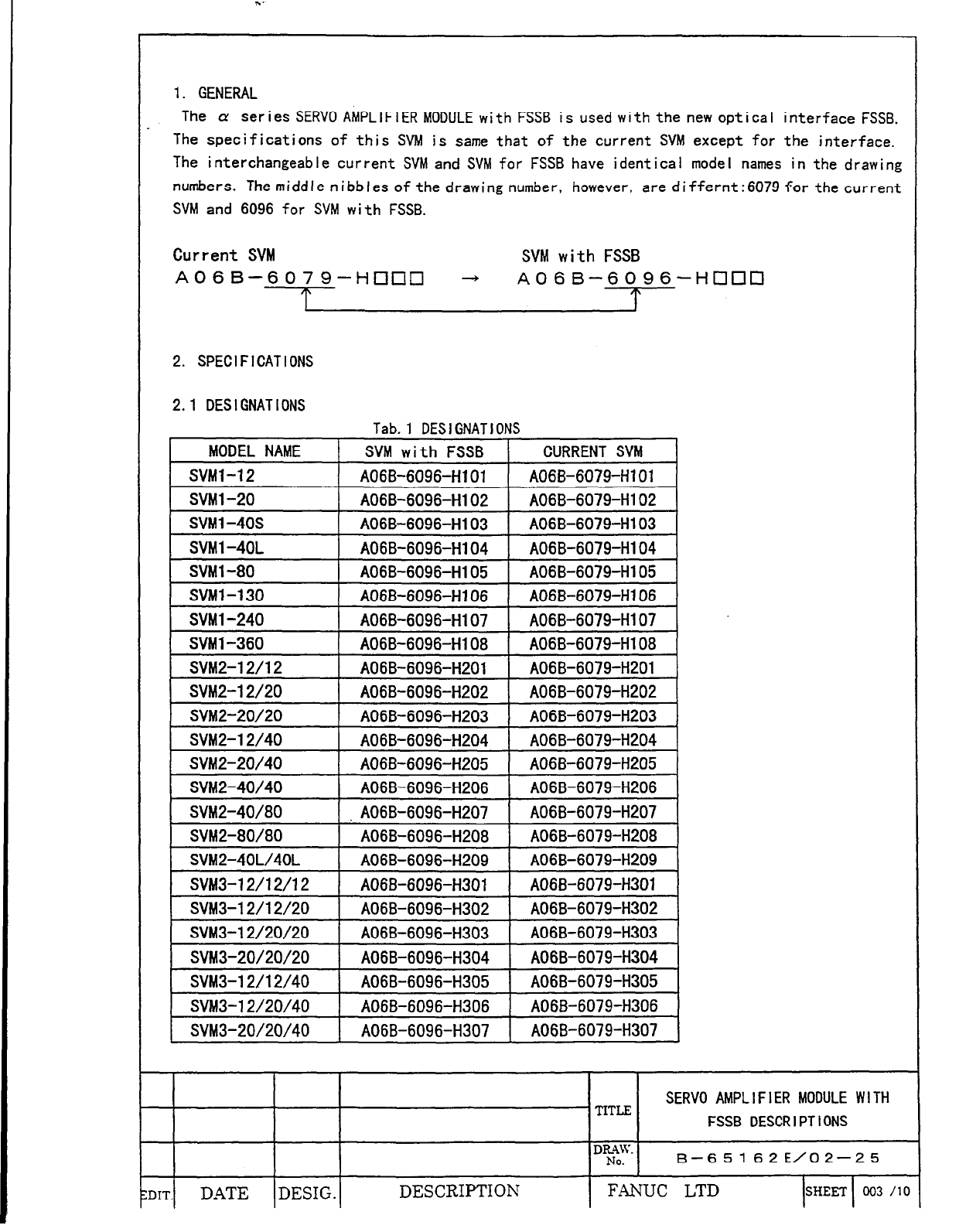

The cy series SERVO AMPLIFIER MODULE with FSSB is used with the new optical interface FSSB.
The specifications of this SVM is same that of the current SVM except for the interface.
The interchangeable current SVM and SVM for FSSB have ident ica I model names in the drawing
numbers. The middle nibbles of the drawing number,
however, are differnt:60?9 for the current
SVM and 6096 for SVM with FSSB.
Current SW
SVM with FSSB
A06B-6079-H00Cl -
A06B-6096-HlJtlCl
T
1‘
2. SPECIFICATIONS
2.1 DESIGNATIONS
Tab. 1 DESIGNATIONS
I
MODEL NAME
1 SVM with FSSB 1 CURRENT SVM
SVMl-12
A06B-6096-H101 A06B-6079-H101
s/Ml -20
A06B-6096-H102
A06B-6079-H102
SVMl -40s
A06B-6096-H103
A06B-6079-H103
SVMl-40L
A06B-6096-H104 A06B-6079-H104
SVMl-80
A06B-6096-H105
A06B-6079-H105
SVMl-130
A06B-6096-H106 A06B-6079-H106
SVMl -240
A06B-6096-H107
A06B-6079-H107
1 SVMl-360
1 SVM2-12/12
1 A06B-6096-H108 1 A06B-6079-H108 1
1 A06B-6096-H201 i A06B-6079-H201 I
I SVM2-12/20
I A06B-6096-H202 I A06B-6079-H202 I
I SVM2-20/20
1 A06B-6096-H203 1 A06B-6079-H203 1
\
1
SVM2-12/40
A06B-6096-H204
A06B-6079-H204
SVM2-20/40
A06B-6096-H205
A06B-6079-H205
SVM2-40/40
A06B-6096-H206
A06B-6079-H206
SVM2-40/80
A06B-6096-H207
A06B-6079-H207
SVM2-80/80
A06B-6096-H208
A06B-6079-H208
SVM2-40L/40L
A06B-6096-H209
A06B-6079-H209
1 SVM3-12/12/12 1 A06B-6096-H301 1 A06B-6079-H301 1
I SVM3-12/12/20 I A06B-6096-H302 I A06B-6079-H302 I
SVM3-12/20/20
A06B-6096-H303
A06B-6079-H303
SVM3-20/20/20 A06B-6096-H304 A06B-6079-H304
SVM3-12/12/40 A06B-6096-H305
A06B-6079-H305
I SVM3-12/20/40 1 A06B-6096-H306 I A06B-6079-H306 1
1 SVM3-20/20/40 1 A06B-6096-H307 1 A06B-6079-H307 1
I
I I
I I
“K?-
B-651 62E/02-25
DESCRIPTION
1
FANUC LTD
I I
SHEET 003 /lO
I
