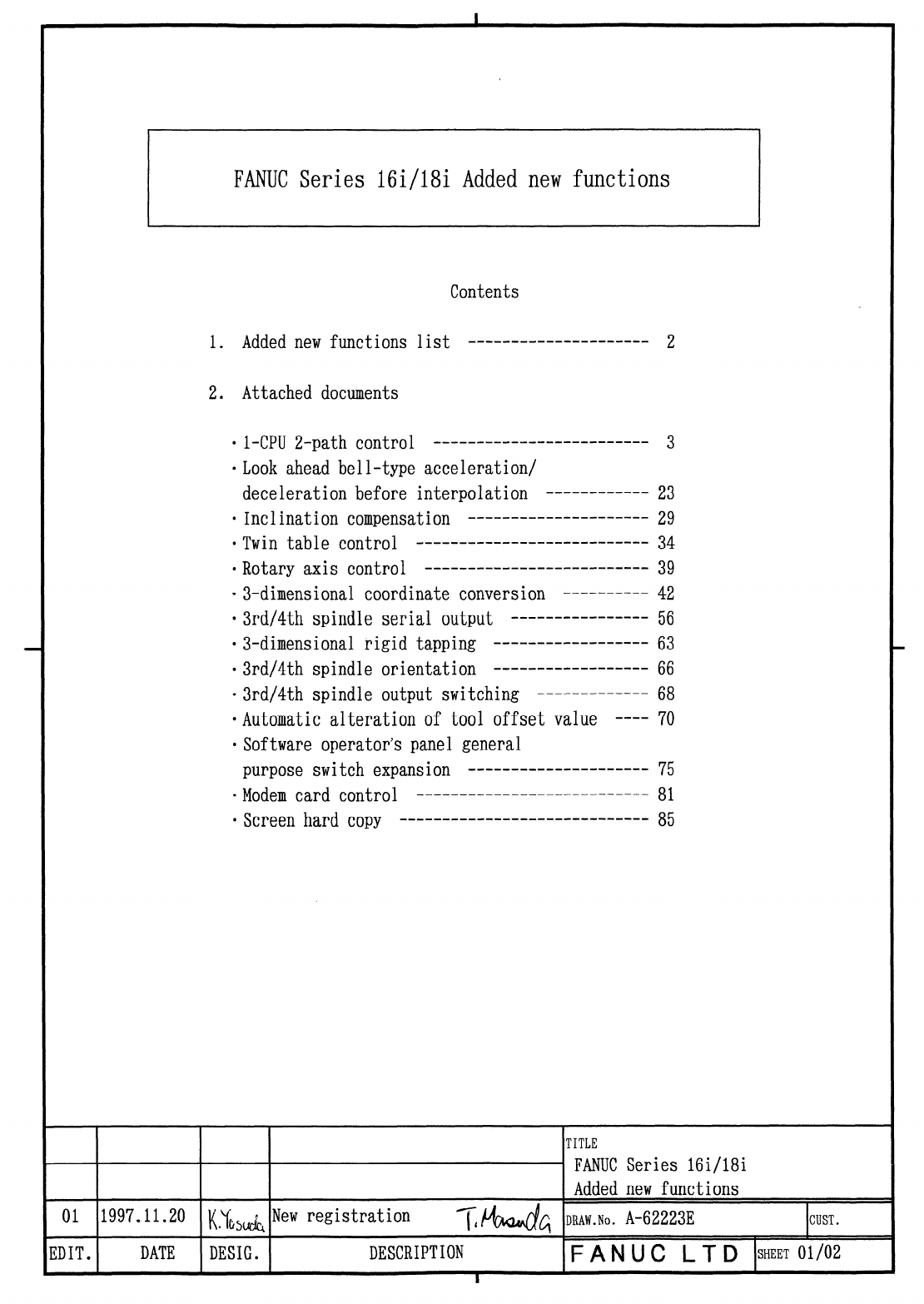

Additional Manual
FANUC Series 16i/18i Added new functions
Contents
1. Added new functions list
_-_a-_---------------
2
2. Attached documents
l l-CPU 2-path control
--------_------------~~~-
3
. Look ahead bell-type acceleration/
deceleration before interpolation
------------
23
l Inclination compensation
---------------------
29
l Twin table control
_---------_-----_----~~~~~-
34
l Rotary axis control
-----------------------~--
39
. 3-dimensional coordinate conversion
----B--B--
42
l 3rd/4th spindle serial output
------I---------
56
l 3dimensional rigid tapping
-_a---------------
63
l 3rd/4th spindle orientation
------------------
66
l 3rd/4th spindle output switching
--------m--e-
68
*Automatic alteration of tool offset value ---- 70
l Software operator’s panel general
purpose switch expansion
----------_----------
75
*Modem card control
_-__-_--__-__---_----------
81
l Screen hard copy
-----------------------~~-~~-
85
TITLE
FANUC Series 16i/l8i
Added new functions
01 1997.11.20 K&d New registration
TWG
DRAWJo. A-62223E
CUST.
EDIT. 1
DATE 1 DESK 1
DESCRIPTION
I F A N U C L T D ISHEET 02
