FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 33

Additional Manual

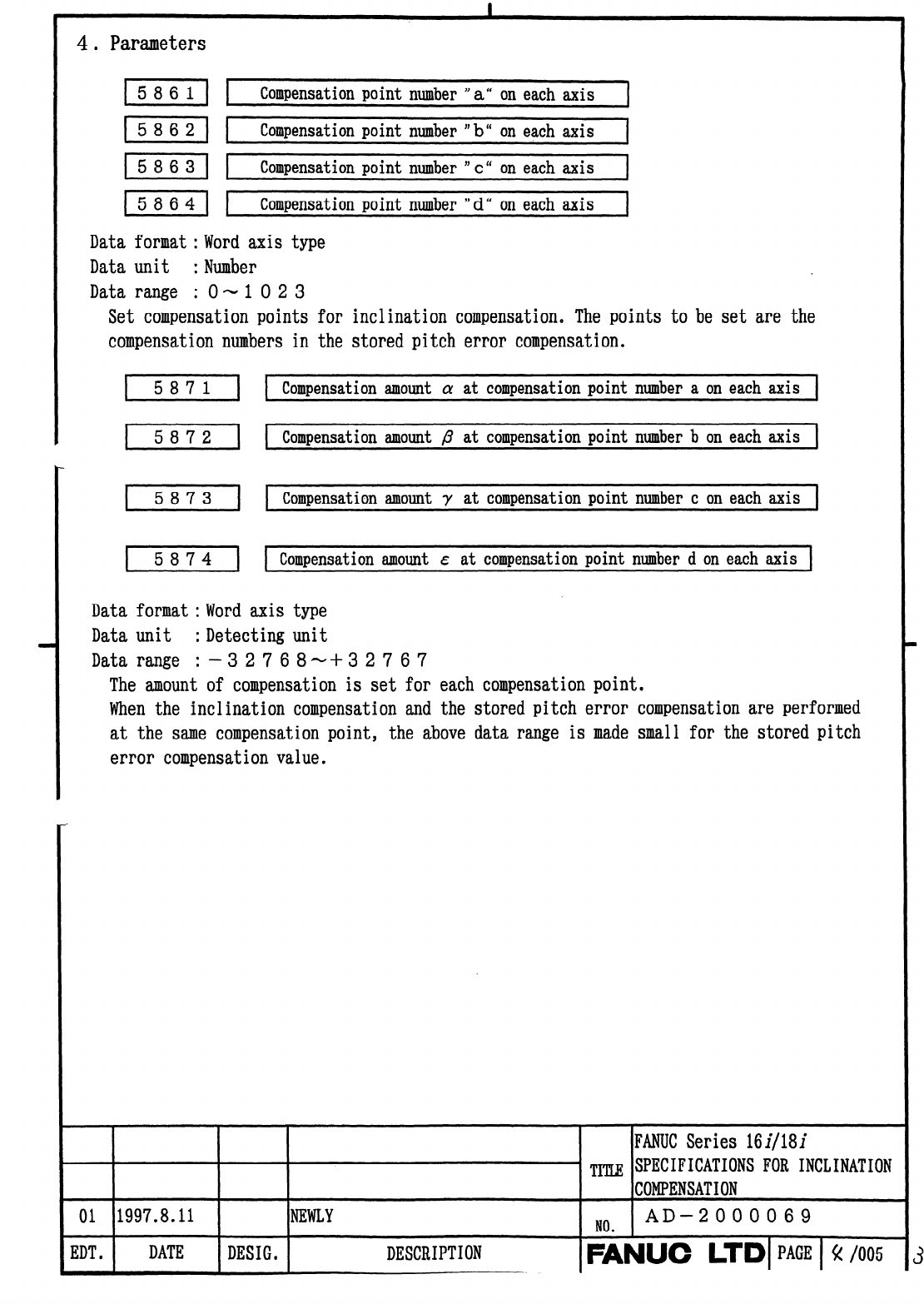

4. Parameters
158611 l
Compensation point number “a” on each axis
1 5 8 6 2
Compensation point number ” b “ on each axis
1
I 5 8 6 3 I 1 Compensation point number ” c” on each axis
1
I58641 I
Compensation point number ” d“ on each axis
1
Data format : Word axis type
Data unit : Number
Data range :Om1023
Set compensation points for inclination compensation. The points to be set are the
compensation numbers in the stored pitch error compensation.
1 5871 1
1 Compensation amount a at compensation point number a on each axis I
1 5872 t
Compensation amount B at compensation point number b on each axis
I 5873 1
I Compensation amount y at compensation point number c on each axis 1
1 5874 1
1 Compensation amount E at compensation point number d on each axis I
Data format : Word axis type
Data unit
:Detecting unit
Data range : -32768~+32767
The amount of compensation is set for each compensation point.
When the inclination compensation and the stored pitch error compensation are performed
at the same compensation point, the above data range is made small for the stored pitch
error compensation value.
FANUC Series 16i/18i
Tim SPECIFICATIONS FOR
INCLINATION
COMPENSATION
01 1997.8.11 NEWLY
NO.
AD-2000069
EDT
8
DATE
DESIG. DESCRIPTION
FANUC LTD pAm q /ON
3
