FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 88

Additional Manual

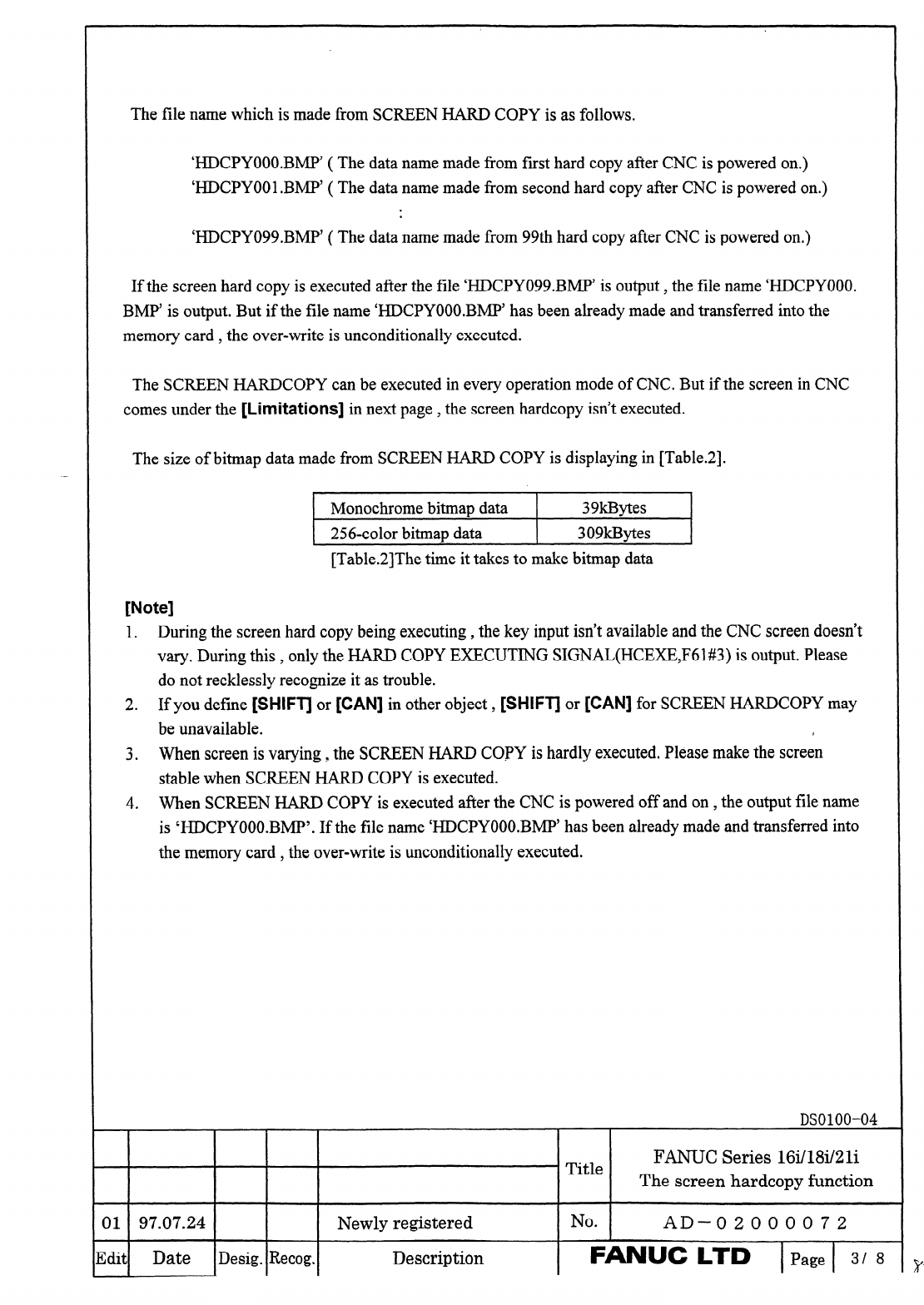

The file name which is made from SCREEN HARD COPY is as follows.
‘HDCPYOOO.BMP’ ( The data name made from first hard copy after CNC is powered on.)
‘HDCPYOOI .BMP’ ( The data name made from second hard copy after CNC is powered on.)
.
‘HDCPY099.BMP’ ( The data name made from 99th hard copy after CNC is powered on.)
If the screen hard copy is executed after the file ‘HDCPYO99.BMP’ is output, the file name ‘HDCPYOOO.
BMP’ is output. But if the file name ‘HDCPYOOO.BMP’ has been already made and transferred into the
memory card , the over-write is unconditionally executed.
The SCREEN HARDCOPY can be executed in every operation mode of CNC. But if the screen in CNC
comes under the [Limitations] in next page, the screen hardcopy isn’t executed.
The size of bitmap data made from SCREEN HARD COPY is displaying in [Table.2].
Monochrome bitmap data 39kBytes
256.color bitmap data
309kBytes
[Table.2]The time it takes to make bitmap data
[Note]
1.
During the screen hard copy being executing , the key input isn’t available and the CNC screen doesn’t
vary. During this , only the HARD COPY EXECUTING SIGNAL(HCEXE,F61#3) is output. Please
do not recklessly recognize it as trouble.
2. If you define [SHIFT’J or [CAN]
in other object, [SHIFT] or [CAN] for SCREEN HARDCOPY may
be unavailable.
I
3. When screen is varying , the SCREEN HARD COPY is hardly executed. Please make the screen
stable when SCREEN HARD COPY is executed.
4. When SCREEN HARD COPY is executed after the CNC is powered off and on , the output file name
is ‘HDCPYOOO.BMP’. If the file name ‘HDCPYOOO.BMP’ has been already made and transferred into
the memory card , the over-write is unconditionally executed.
DSOlOO-04
Title
FANUC Series 16i/lW2li
The screen hardcopy fbnction
01 , 97.07.24
, Newly registered
No
I I I l I
AD-02000072
I
I
Edit Date Desig. Recog.
Description FANUC LTD
Page
31 8
Previous page
Next page
