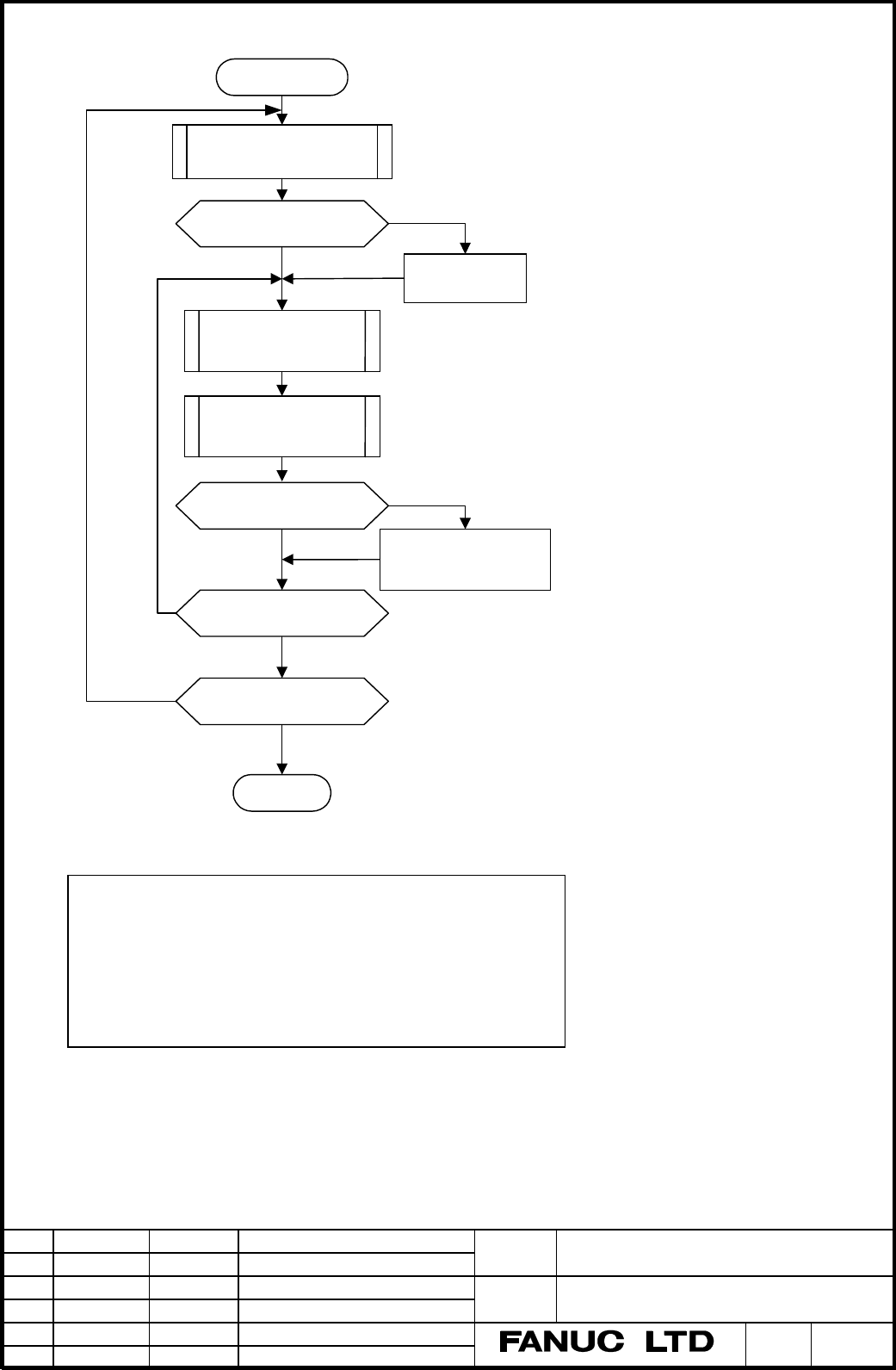

7.2.2 Processing flow
Grinding start
Set Total profile number
according to camshaft
Clear out all
learning buffer
Set Profile number,
Command data period,
Repetition count, etc.
High speed cycle
cutting executes, and
finishes
Clear out the learning
buffer according to
profile number
end
G10
G10
G05
Yes
No
Yes
No
Yes
Yes
No
No
Did you change Total
profile number ?
Compensation
mode ?
Do you grind
next cam ?
Do you grind next
cam shaft ?
∗
∗
∗
♦ When old spec. (LEBFEX = 0), you
don’t use the marked “∗”.
♦ When Total profile number is changed or
Compensation data mode is invalid, all
learning memory is cleared.
Note 1)
Set the Repetition count and Command
data period of Learning steps which you
don’t use to 0.
♦ According to detail, refer to 3.3 Cam grinder.
How much time is necessary to clear all Learning buffer ?
• 9083, 9087, 90A3/A ------ 10 seconds
• 90A3/B ------ 5 seconds
• 90A7 (The 1’st, 3’rd axis) --- 23 seconds
(The 5’th axis) --- 5 seconds
