  2. FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator

FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator Additional Manual Page 53

Additional Manual
Title 9083 / 9087 / 90A3 / 90A7
Learning Control Operator’s Manual
03 '00.06.07 N.Sonoda Qualified 2'nd issue Draw No.
02 ’99.01.14 K.Maeda Qualified 1’st issue
A - 63639E - 034
01 ’97.12.08 K.Maeda Newly designed Sheet 051
Edit Date Design Description / 070
“FANUC Series 16i-Model A Connection Manual (Function)” (B-63003EN).
In addition, Coupling flag is available from the following CNC software edition.
B0F1/20 (FS16i-MA), B1F1/18 (FS16i-TA), BDF1/20 (FS16i-MA), BEF1/18 (FS16i-TA)
7.6.4 The others
1) In condition Simple synchronous control is available and Synchronous mode (bits on G138 are active), you
can not use High speed cutting (G05). You can use G05, after disabling Synchronous mode by turning off
G138 signal.
2) In case that you use Position tandem Learning control or Torque tandem Learning control using “Sub axis
separation function”, you must command the same data to both Main and Sub axes during G05. In case of
without “Sub axis separation function”, Torque tandem Learning doesn’t need Sub axis command.
8. Tuning
Regarding Learning control, you don’t need to tune parameters basically.
But servo system need to be stable before Learning control. If oscillation occurs, you need to make stable by
tuning Load inertia ratio (No.2021), Acceleration feedback (No.2066), Tcmd filter (No.2067), Observer function
(No.2003#2), and etc.

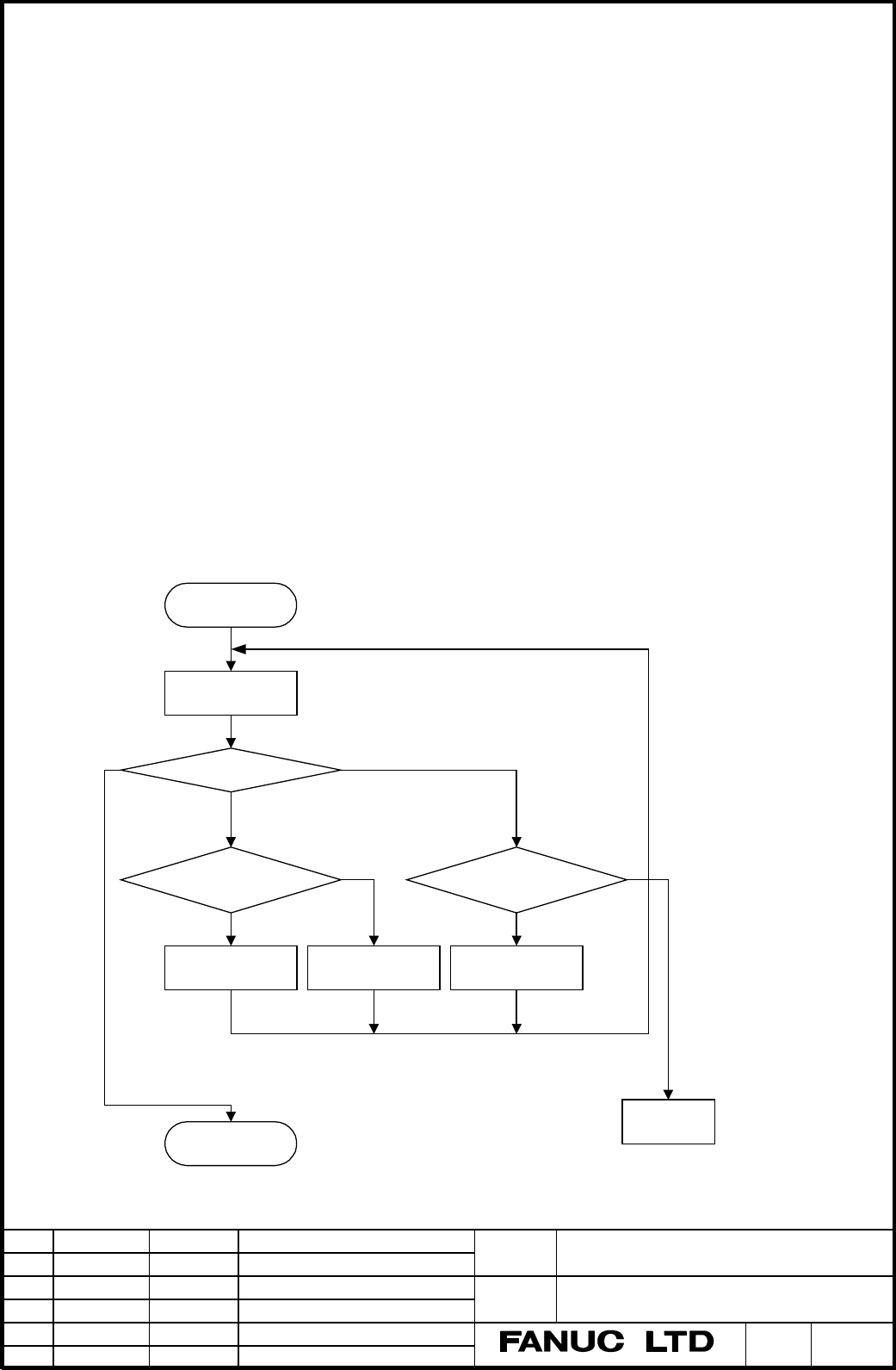

8.1 Tuning method
Start
Check of Error
Is Error converge ?
Is Learning parameter
setting right ?
diverge
step by step
yes
yes
Learning parameter
set rightly
no
Is machine oscillate
without Learning ?
yes
no
Servo parameter
tuning
Not converge.
End
make contact
with SLS0Q
decease frequency
of low pass filter
