  2. FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator

FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator Additional Manual Page 70

Additional Manual
Title 9083 / 9087 / 90A3 / 90A7
Learning Control Operator’s Manual
03 '00.06.07 N.Sonoda Qualified 2'nd issue Draw No.
02 ’99.01.14 K.Maeda Qualified 1’st issue
A - 63639E - 034
01 ‘97.12.08 K.Maeda Newly designed Sheet 068
Edit Date Design Description / 069

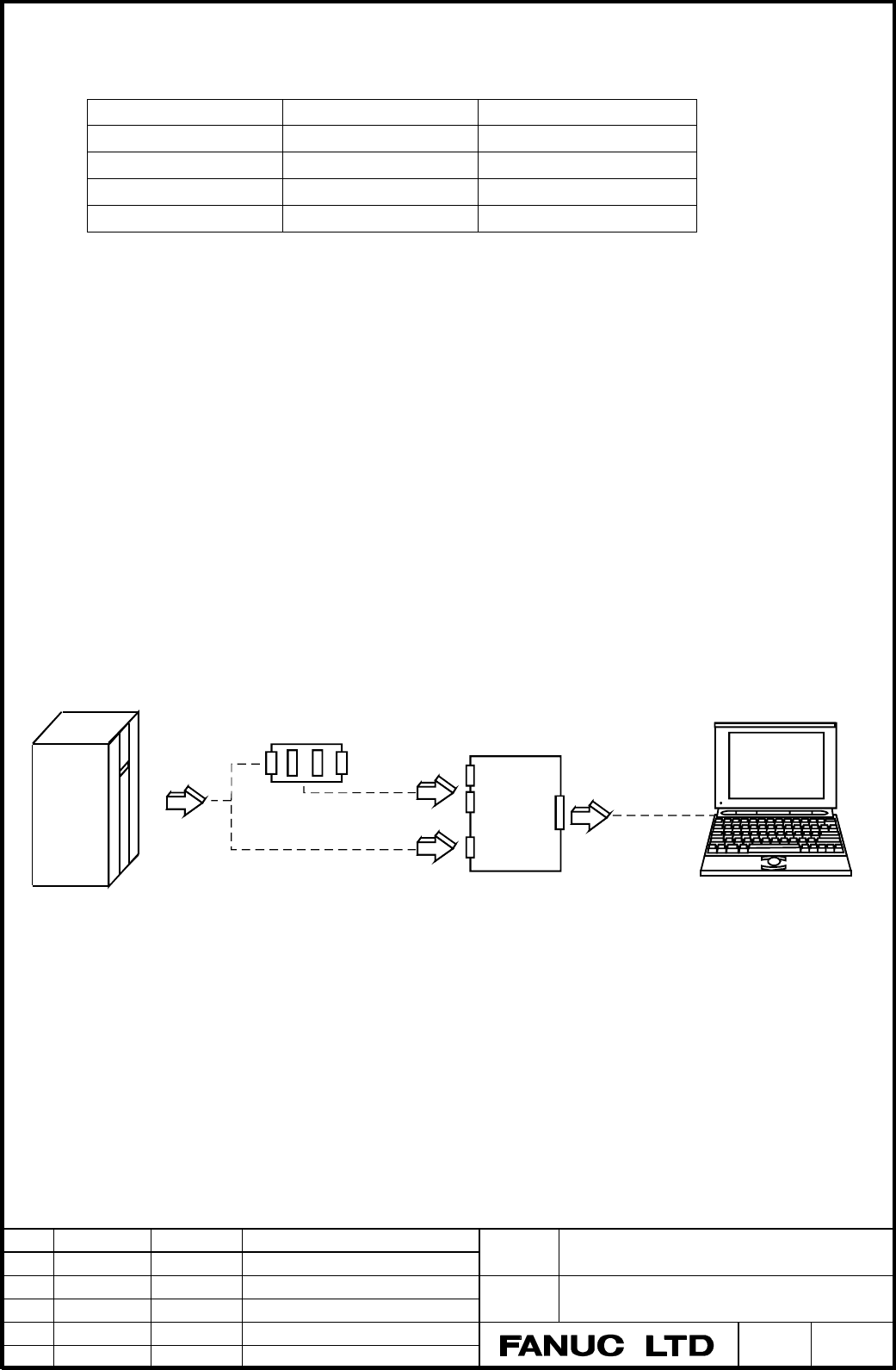

7.3 Connection
In case of connecting JA8A (JA26) connector of CNC with CNI3 connector of Digital check-board, the relation
of the axis on SD.EXE and servo axis on CNC is the following.
SD.EXE Digital check-board Servo axis
X : CH0 AXIS1 1
st
axis or 5
th
axis ∗4
Y : CH1 AXIS2 2
nd
axis or 6
th
axis ∗4
Z : CH2 AXIS3 3
rd
axis
4 : CH3 AXIS4 4
th
axis
In case of connecting JA8A connector of CNC, the data of the 1
st
, 2
nd
, 3
rd
, and 4
th
axis is output.
In case of connecting JA26 connector of CNC, the data of the 5
th
and 6
th
axis is output.
Note 1) The relation of Servo axis and CNC controlled axis is set for No.1023. You must allocate a High-speed
axis or Learning axis to odd axis (1
st
, 3
rd
, or 5
th
axis).
Note 2) The odd axis of Servo axis corresponds to L axis, the even axis corresponds to M axis.
Note 3) In case of gathering the data of 1
st
, 2
nd
, 5
th
, and 6
th
axis, you should use two Servo wave check adapter,
and connect the flat cables of to CNI1 and CNI2.
Note 4) TEST1 connector of servo wave check adapter corresponds to the 1
st
or 2
nd
axis of Servo axis.
TEST2 connector of servo wave check adapter corresponds to the 3
rd
or 4
th
axis of Servo axis.
Note 5) CNI1 of Digital check-board corresponds to AXIS1 or AXIS2 of Dip-switch. And CNI2 corresponds to
AXIS3 or AXIS4.
Note 6) In series 16i, you should connect CA54 connector of CNC with CN0 connector of Servo wave check
adapter (A02B-0236-K822).
TESTA connector of servo wave check adapter corresponds to the 1
st
, 2
nd
, 3
rd
, or 4
th
axis of Servo axis.
TESTB connector of servo wave check adapter corresponds to the 5
th
, 6
th
, 7
th
, or 8
th
axis of Servo axis.
7.4 The others
1-1. Device setting
In correspondence to the number of axes, you should set the device (environment variable) in DOS mode on
personal computer (PC).
1 axis : set device=0003
2 axes : set device=0033
3 axes : set device=0333
4 axes : set device=3333
CNC
FS16
OUT
IN
Personal computer
Servo wave
Check adapter
Digital check-board
OUT
CNI1
CNI2
JA8A
IN
OUT
(A02B-0120-C211)
(A06B-6057-H610)
CNI3
CNA1
or
Previous page
Next page
