  2. FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator

FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator Additional Manual Page 43

Additional Manual
Title 9083 / 9087 / 90A3 / 90A7
Learning Control Operator’s Manual
03 '00.06.07 N.Sonoda Qualified 2'nd issue Draw No.
02 ’99.01.14 K.Maeda Qualified 1’st issue
A - 63639E - 034
01 ’97.12.08 K.Maeda Newly designed Sheet 041
Edit Date Design Description / 070
Fixed size
41kW
Examples

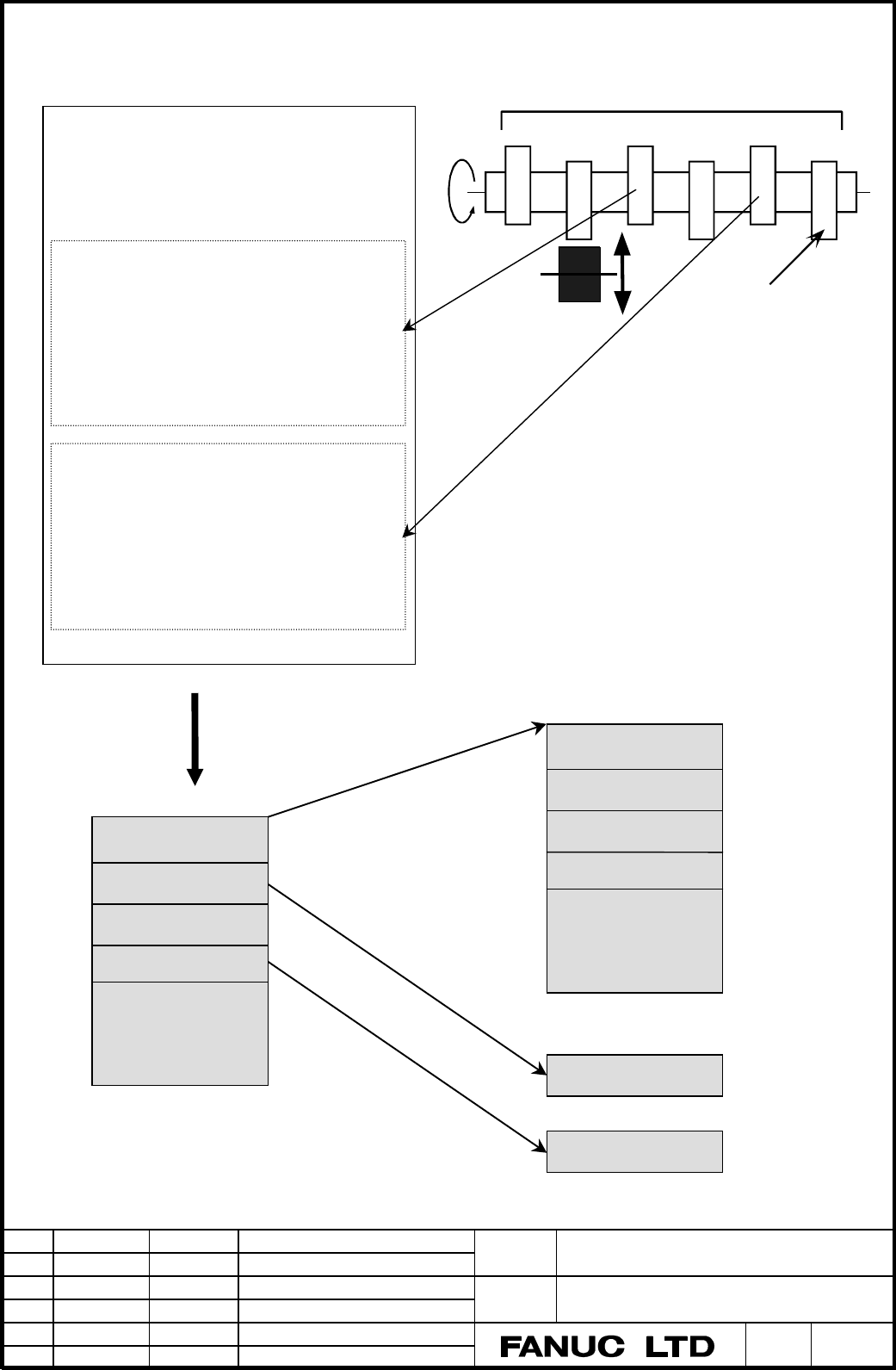

(1) Correspondence with processing program and Work
Learning memory

Profile i


Profile j
Profile i

Profile i


Profile j
File on com
p
uter
In case of partial deal method, each file size is
small, but you need to manage Total profile
number and Profile number by yourself.
Profile j
O0001 ;
G10 L50 ;
N2264 P (Axis) R (Total profile number) ;
G11 ;

G10 L50 ;
N2233 P (Axis) R (Profile number i) ;
N2242 P (Axis) R (Learning count) ;
N2243 P (Axis) R (Learning period) ;
 (each step) 
G11 ;
G05 (Profile i command) ;

G10 L50 ;
N2233 P (Axis) R (Profile number j) ;
N2242 P (Axis) R (Learning count) ;
N2243 P (Axis) R (Learning period) ;
 (each step) 
G11 ;
G05 (Profile j command) ;

Grinding
C axis
Profile i Profile j
CAM work
X axis
Total profile number
Above case consists of six profiles in one
camshaft, supposing all have different
profile each other.
(Max. 16 profiles are available )
