  2. FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator

FANUC AC SERVO SOFTWARE 9083 / 9087 Series, 90A3 / 90A7 Series LEARNING FUNCTION Operator Additional Manual Page 42

Additional Manual
Title 9083 / 9087 / 90A3 / 90A7
Learning Control Operator’s Manual
03 '00.06.07 N.Sonoda Qualified 2'nd issue Draw No.
02 ’99.01.14 K.Maeda Qualified 1’st issue
A - 63639E - 034
01 ’97.12.08 K.Maeda Newly designed Sheet 040
Edit Date Design Description / 070
l To LOAD Learning Data (HD → Servo )
1) Set No.2233 of the Profile number to zero in case of the lump deal method.
Learning Data saved by the lump deal method must be loaded by the lump deal method.
Check No.2264 of the total number of Profile to be same value as saved before.(It must be so!)
l Set No.2233 =0 when the Learning Data was saved by the lump deal method before.
l Set No.2233=Profile number when it was saved by the partial deal method.
Note) You can load Learning Data to the number different from it when saved before in just case of the partial
deal method.
2) Set CNC to EDIT mode and transmit Learning Data from HD to servo memory through your application
software. Blinking RESET indicates on transmission.
Note) When loading, No.2264 of total profile number is checked automatically whether it is the same or not as
it was saved beforehand. If they are not identical, the transmission alarm occurs
3) Set No.2233 to an appropriate value and then start to run Learning function.
It is necessary for you to manage the Learning Data together with it's parts program (:command). It
would be dangerous because of the unexpected movement if you ran the parts program different
from correspondent Learning Data. Furthermore you must be conscious of the profile number
No.2233 which have Learning data that should be handle always together with the command data.
Profile No 1
Profile No 1Profile No 1
Profile No 1
Profile No 2
Profile No 2Profile No 2
Profile No 2
Profile No 3
Profile No 3Profile No 3
Profile No 3
…
……
….
..
.
Learning Memor
y
Learning MemoryLearning Memor
y
Learning Memory
Profile No 1
Profile No 1Profile No 1
Profile No 1
Profile No 2
Profile No 2Profile No 2
Profile No 2
Profile No 3
Profile No 3Profile No 3
Profile No 3
…
……
….
..
.
Learning Memor
y
Learning MemoryLearning Memor
y
Learning Memory
Lump deal method
Lump deal methodLump deal method
Lump deal method Partial deal method
Partial deal methodPartial deal method
Partial deal method
LOAD
(Write)
Hard Disk
Hard DiskHard Disk
Hard Disk
Learning Data
Learning DataLearning Data
Learning Data
file
filefile
file

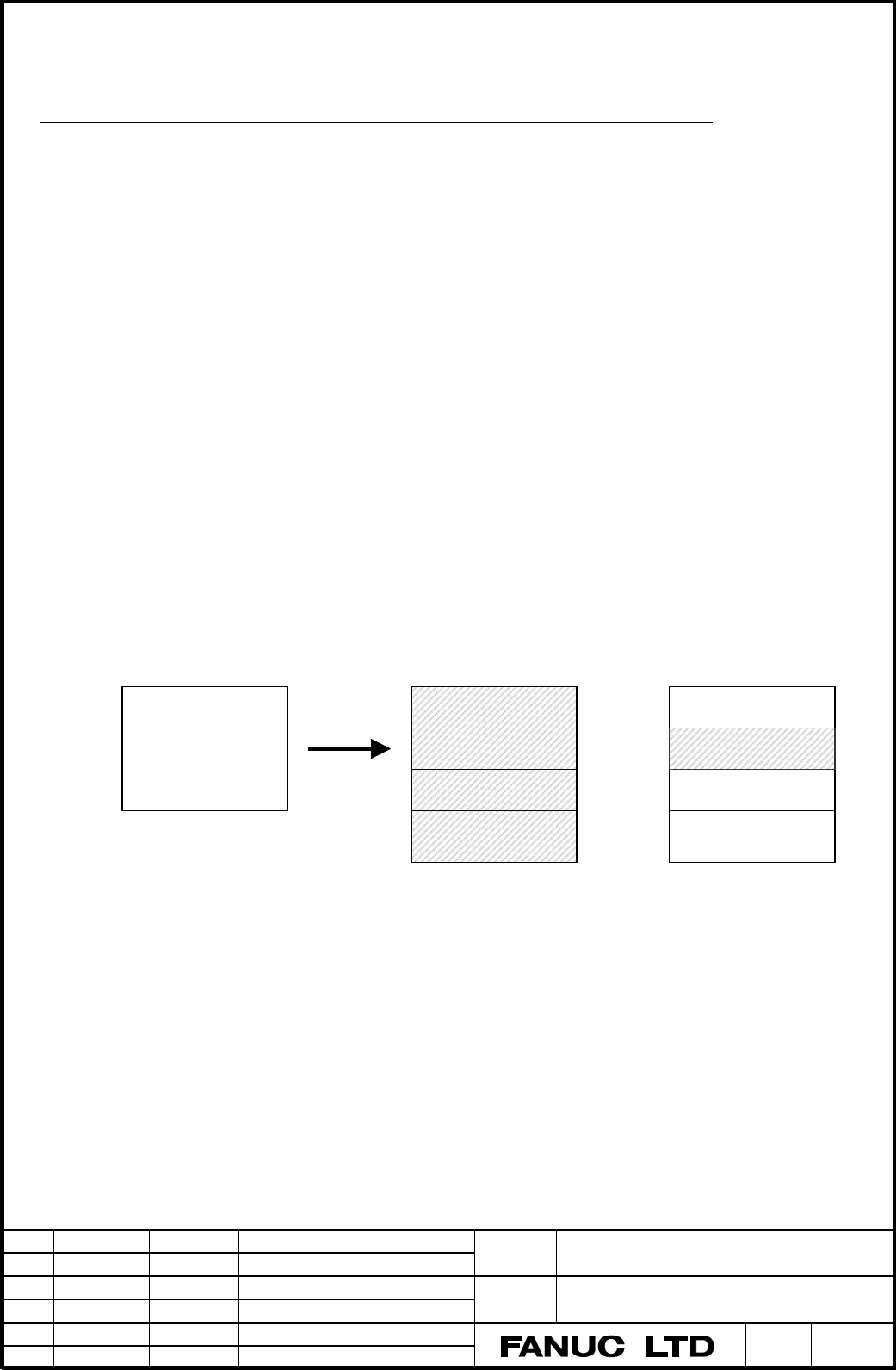

Fig 7.2 To load Learning Data by two ways of
the Lump deal method (No.2233=0)and the Partial deal method (No2233=2)
