CZi Sensor (with Serial Interface)
CZi Sensor (with Serial Interface)

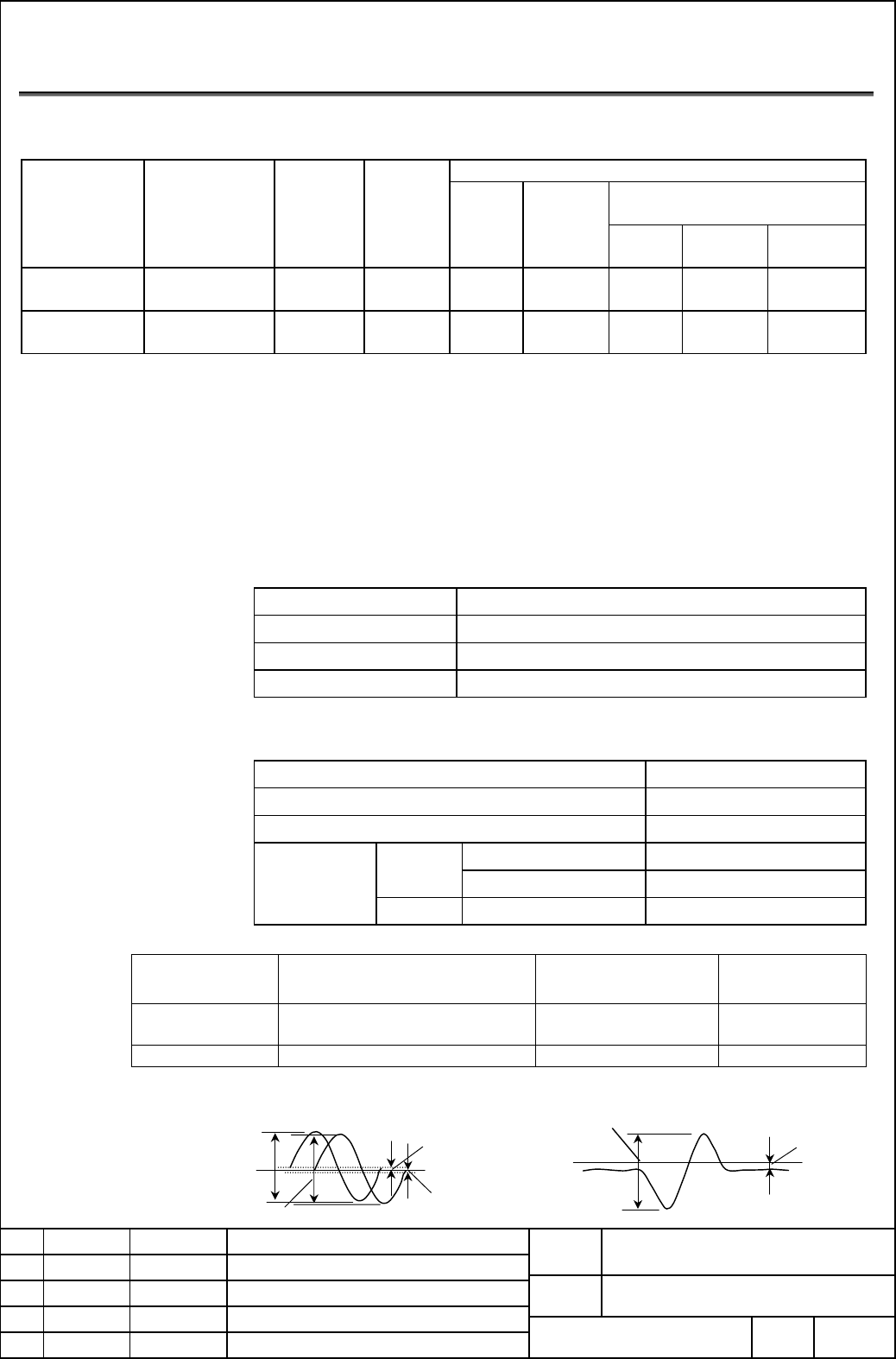

(1) Names and Drawing Numbers
Table (1) Names and Drawing Numbers
Remarks
Name Drawing No. Resolution
Accuracy
(typ.)
Number
of teeth
Maximum
speed
Detection ring
Inner
diameter
Outer
diameter
Function
CZi Sensor
512S
A860-2141-T411
1/3600000
deg.
5/1000
deg.
512 1200min
-1
φ82 φ102.8 Incremental
CZi Sensor
1024S
A860-2141-T611
1/3600000
deg.
5/1000
deg.
1024 600min
-1
φ160 φ205.2 Incremental
Note: The position of the reference return is temperature dependent in CZi sensor and its drift
amount is 6/1000deg. (typ.) per 10deg. of temperature change in case of CZi sensor 512S,
and about 3/1000 deg. (typ.) in case of 1024S respectively. This drift does not occur without
turning off the power because the absolute position of the reference point in the first
reference position return is kept.
Please make sure that this drift takes no serious influence on the machine function in case
that the high absolute accuracy is necessary.
(2) Absolute Maximum Ratings
Table (2) Absolute Maximum Ratings
Item Specifications
Power supply voltage
-0.5V～+6.0V
Operating temperature
0℃～+50℃
Humidity 95%RH or less
(3) Electrical Specifications
Table (3) Electrical Specifications
Item Specifications
Power supply voltage 5V+/-5%
Current consumption 250mA or less
VA,*VA
CZi Sensor 512S
512λ/rev.
Output signals VB,*VB
CZi Sensor 1024S
1024λ/rev.
VZ,*VZ Common to all models 1λ/rev.
Table (4) Output specification of the A/B phase signal and Z phase signal (at room temperature, 500min
-1
)
Signal Check terminal
(on curcuit boad of preamplifire)
Output amplitude Offset
Ａ phase signal
Ｂ phase signal
A(Based on T01)
B(Based on T01)
1000+/-100mVp-p +/-50mV
Ｚ phase signal Z(Based on RZ) 660-1650mVp-p 100-250mV
RZ
Z
Z output amplitude
Z offset
A
output amplitude
T01
A
B
B output amplitude
A
offset
B offset
Please refer to the section 9 about the pin assignment.
