CZi Sensor (with Serial Interface)

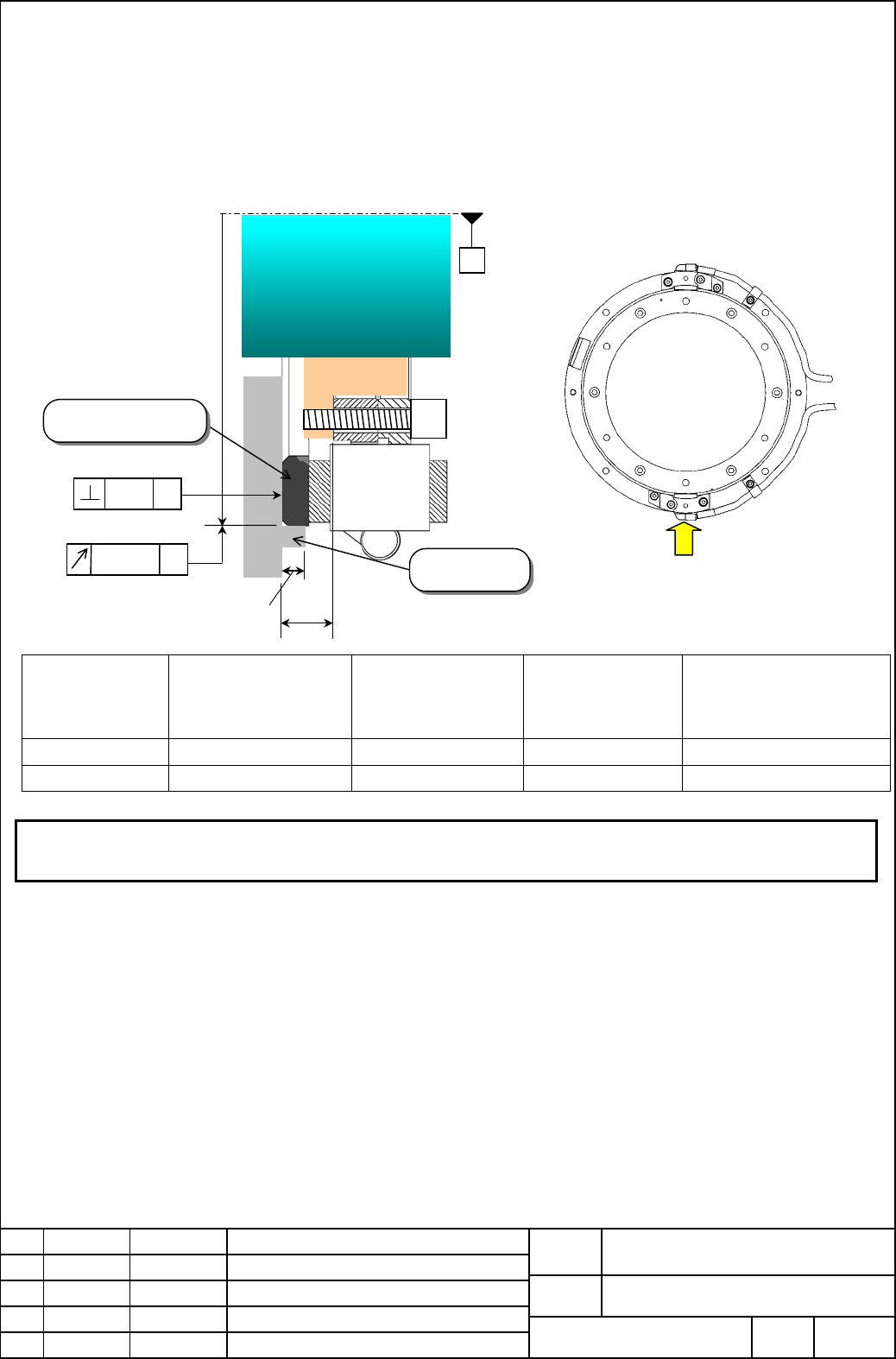

(5).2 Mounting the sensor mounting ring
The spindle should be so designed that it will construct the clearance fit between the outer diameter of the sensor
mounting ring and the fitting part of the spindle as shown in the diagram below (The error in the fitting size may cause
the increase of the detection error). As shown in the figure below, push the sensor mounting ring from CN1 sensor
side, so that it will contact with the fitting part closely. Check that the gap of between the detection ring and the sensor
element is 0.08mm or more by using feeler gauge.
Drawing No. Outer diameter of the
sensor mounting ring
Inner diameter of the
fitting（φＣ）
Height of fitting（D） Length between the Sensor
Mounting ring bottom and
the detection ring bottom
(E)
A860-2141-T411 φ140 φ140 5.5 or less 11.5+/-0.2
A860-2141-T611 φ242 φ242 7.5 or less 13.5+/-0.2
NOTE
・It is recommended to locate the sensor mounting ring mechanically as indicated above. It is not advisable to adjust it by
measuring the eccentricity of the outer diameter of the sensor mounting ring.
Shaft
Ａ
Sensor
element
Fitting part
Sensor mounting ring
0.02
Ａ
φＣ
Ａ
0.015
φＤ
+0
-0.015
φＥ
CN2 Sensor
CN1 Sensor
Please push the sensor mounting
ring as indicated by an arrow
+0.015
-0
+0
-0.015
+0.015
-0
