CZi Sensor (with Serial Interface) Additional Manual Page 3

Additional Manual
Draw.
Title
Na
g
atomo 04.02.16 01
PAGE
3／14
FANUC LTD.
A-72587-0148EN
Descri
p
tionDesi
g
n Date Edit
.
CZi Sensor (with Serial Interface)
Cable length 1200mm
RM15WTP-12P
(Hirose Co.Ltd)
External diameter : φ 23

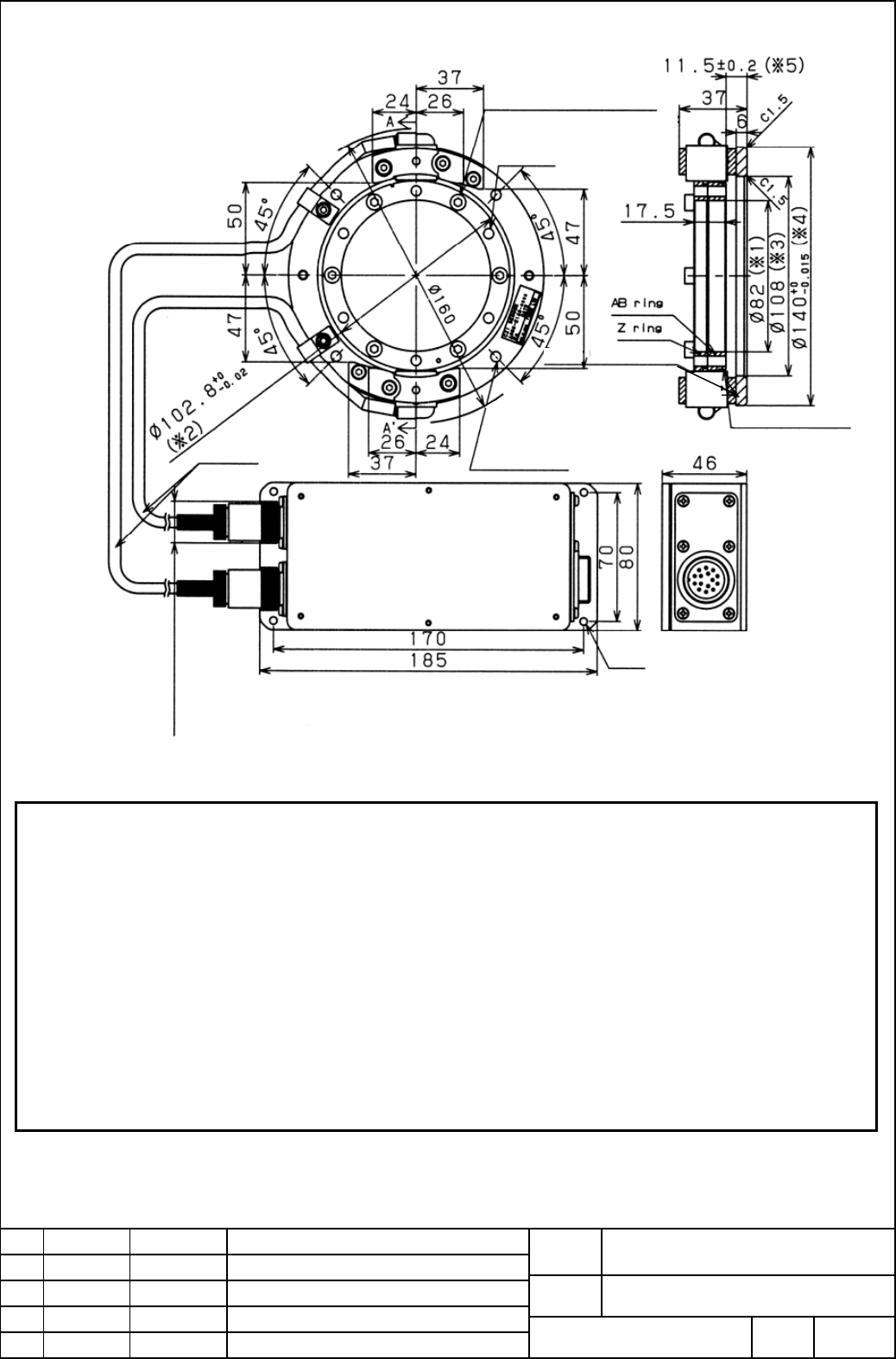

(4) Outline Drawing
Please see to the followings section (5) “Mounting CZi Sensor” about mounting method
NOTE
・Tolerance of the inner diameter (*1) of the detection ring is designed from zero to the larger number. (*2) shows the tip
diameter of the AB ring.
・Tolerance of the inner diameter (*3) of the sensor mounting ring is designed from zero to the larger number. (*4) shows
outer diameter of the sensor mounting ring.
・(*5) shows the size between the bottom surface of the sensor mounting ring and bottom surface of the detection ring.
・Use CZi sensor at temperatures not exceeding 50℃.
・Since the detection ring, the sensor, and the preamplifier are adjusted in a set, please use them by the set.
・CZi sensor is a precise device, so please be careful in handling it. In particular, don’t apply shocks or stresses to the
sensor element.
・CZi sensor is an electronic device. Provide the protection on the machine against chips, oil, water, or any other harmful
substance.
・The waterproof performance of the preamplifier case is IP55. However, the coolant may penetrate if the case is exposed
in it continuously.
・Please do not add the vibration exceeding 1G to the preamplifier.
・Connect a shield wire.
・To ensure ease of maintenance, install CZi sensor in a location where it can be approached easily.
(4).1 CZi Sensor 512S
A860-2141-T411
This bolt for fixing AB/Z ring.
Fastened before shipment
sensor
head
For detection ring attachment
6－φ 5.5 drill,
For the sensor
mounting ring attachment
4-φ 5.5 drill
P.C.D.φ 124
Sectional drawing
of A-A’
A
li
g
nment track
Sensor mounting ring
sensor
head
For preamplifier attachment
4-φ 5
P.C.D.φ 92
