Direct input of offset value measured B
for 2 spindle lathe
Jan.31.02
12/13
5056
Distance (X2P) between reference position and X axis + contact surface
on the touch sensor 2
5057
Distance (X2M) between reference position and X axis - contact surface
on the touch sensor 2
5058
Distance (Z2P) between reference position and Z axis + contact surface
on the touch sensor 2
5059
Distance (Z2M) between reference position and Z axis - contact surface
on the touch sensor 2
[Data type]
[Data type][Data type]
[Data type] 2–word
[Unit of data]
[Unit of data][Unit of data]
[Unit of data]
Increment system IS-B IS-C Unit
Millimeter machine 0.001 0.0001 mm
Inch machine 0.0001 0.00001 inch
[Valid data range]
[Valid data range][Valid data range]
[Valid data range]
−
99999999
∼
99999999
They set the distance (with sign) between the measurement reference position
and sensor contact surface. For an axis under diameter programming, set it by a
diameter value.
NOTE
These parameters are enabled when the DSN parameter (parameter
No.5051#0) is set to 1.
X2-axis
+(contact surface)
Z2-axis
-(contact surface)
X2-axis
-(contact surface)
Z2-axis
+(contact surface)
Z2P
Z2M
X2M
X2P
X-axis
+(contact surface)
X1-axis
-(contact surface)
Z1-axis
-(contact surface)
Z1P
Z1M
X1M
X1P

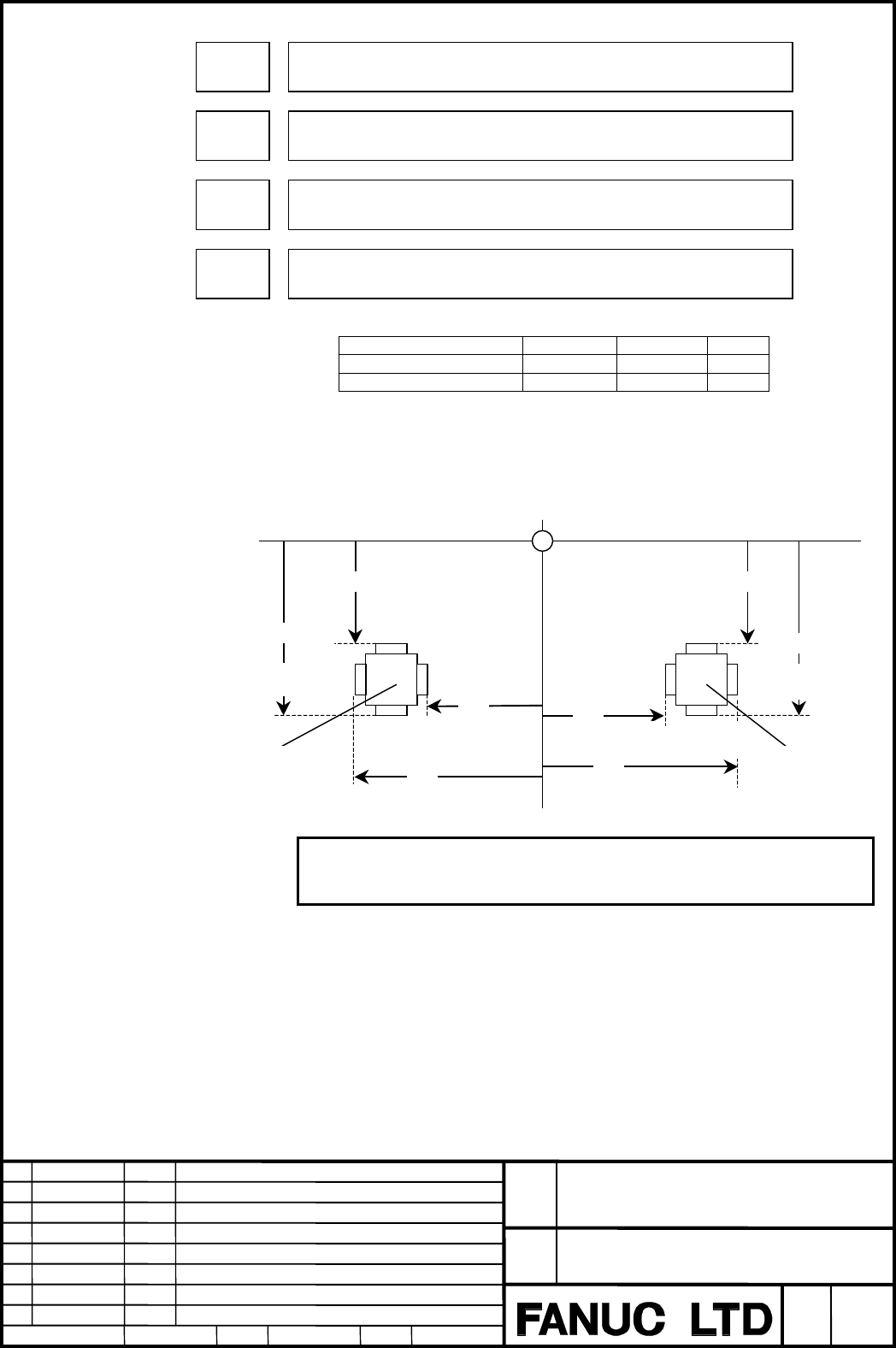

Measurement reference position
Touch sensor 2Touch sensor 1
Z1-axis
+(contact surface)
