FANUC LASER C2000-MODEL E Level up type Descriptions Additional Manual Page 16

Additional Manual
TITLE
DRAW.NO.
15／
FANUC LASER C2000-MODEL E
A-81057E-002
A
PPR.
EDIT
DATE.
DESIG.
DESCRIPTION
DESIG.
CHECK
010207 MAEDA DRAW
CHECK
SHEET
22
5. Installation conditions
5.1. Environmental conditions
Environmental conditions are the almost same as for other FANUC Ｃseries lasers.
(1) Ambient temperature +5 to 35°C
Note 1. At temperature over 30
°
C, please purge a dry air into the cabinet.
(2) Temperature drift Max. 1.1°C/min
(3) Humidity Less than 75%（relative）
(4) Vibration Acceleration < 0.05G Amplitude < 5 micrometer
(5) Atmosphere Free from dust and volatile vapor
5.2. Grounding
First-class earthing

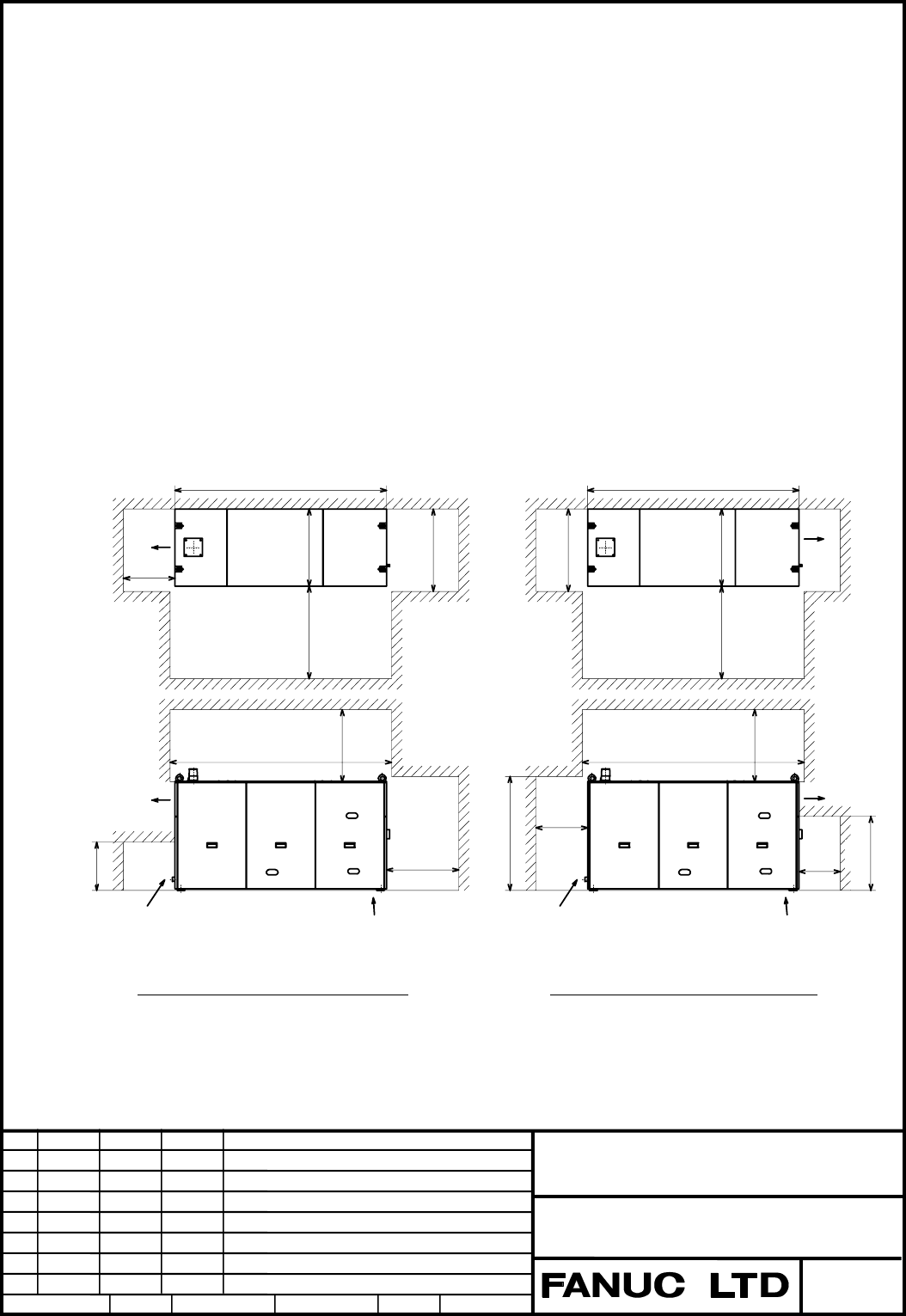

5.3. Maintenance Area
800
800
750
900
1105
720
700
470
700
500
500
BEAM
BEAM
400
700
Long optical path length type
Short optical path length type
AC200V INLET
AC200V INLET
WATER,GAS
WATER,GAS
2150
2150
2050
2050
750
900
