Built-In AC Spindle Motors Alpha iB Series Descriptions Page 57

Descriptions
B-65292EN/03 SPECIFICATIONS 3.DIMENSIONS
- 41 -

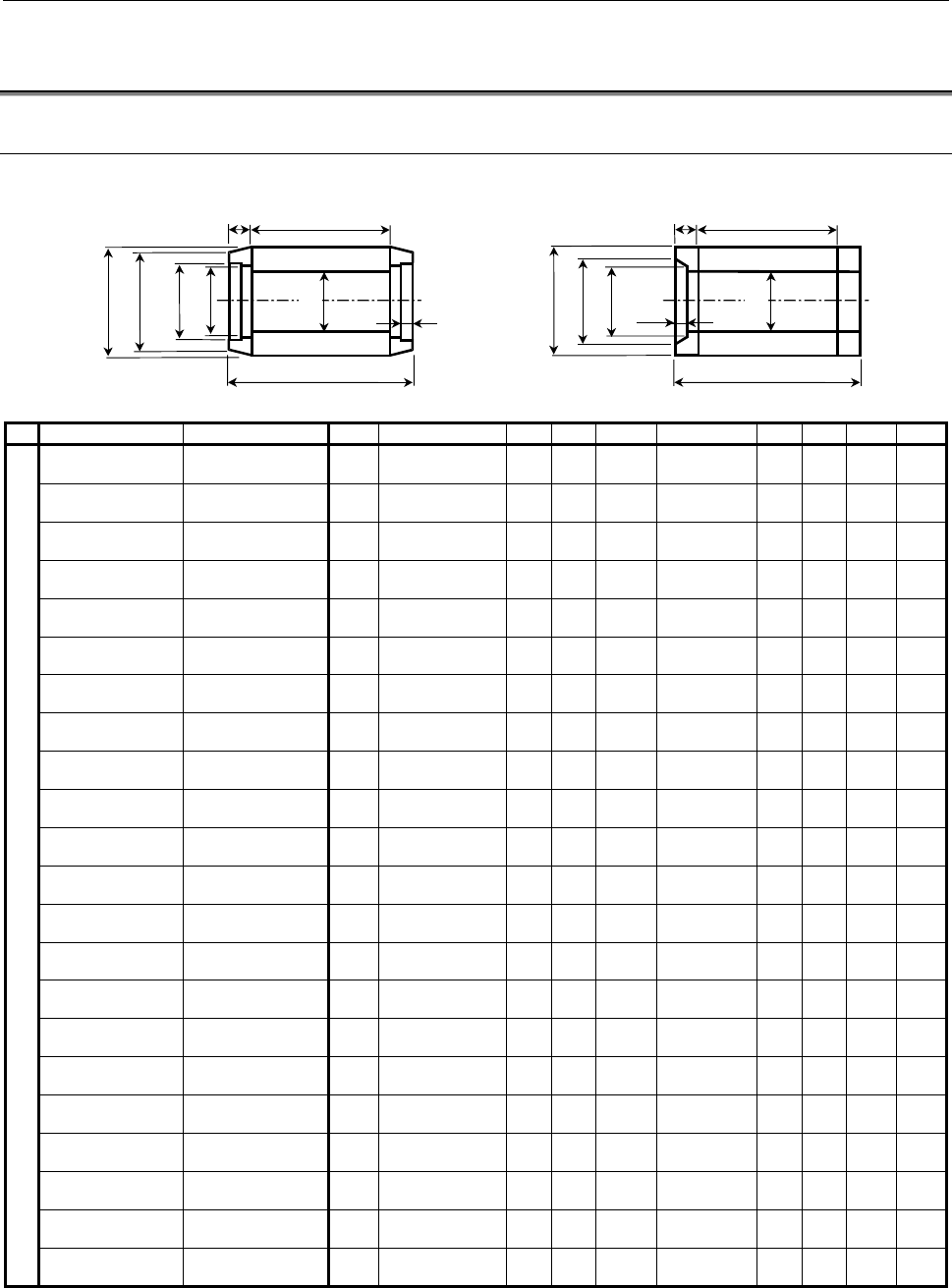

3.2 ROTOR
3.2.1 Dimensions of Rotor
Type A Type B
F
G
I
φ
A
H
φ
B
φ
C
φ
D
φ
E
G
I
H
F
φ
A
φ
B
φ
C
φ
E
Unit : mm
Model name Type No.(A06B-) Type
φ
A
φ
B
φ
C
φ
D
φ
E
FG H I
α50L/25000iB 1615-B120#Z318 A
49±
0.2
(48.6±0.01)
44 38.3 35.8 34.8 - 5 90 100
α80S/20000iB 1621-B120#Z312 A
74.3
+0.2/-0
(74.0±0.01)
73.4 53.5 51 41 - 7 56 70
α80M/15000iB 1623-B170#Z011 A
74.15±
0.1
(73.90±0.01)
72 44 42 41 3 9 118 136
α80L/8000iB 1625-B170#Z011 A
74.15±
0.1
(73.90±0.01)
72 44 42 41 3 9 168 186
α100S/12500iB 1641-B120#Z011 A
99.2
(99.00±
0.01)
96 62 58 58 8 13 108 134
α112SS/20000iB 1661-B120#Z312 A
114.5
+0.2/-0
(114.2±0.01)
89 84 80 74 - 11 78 100
α112S/15000iB 1671-B120#Z311 A
114.5
+0.2/-0
(114.2±0.01)
111 76.5 74.4 74 5 15 113 143
α112M/15000iB 1673-B120#Z311 A
114.5
+0.2/-0
(114.2±0.01)
111 76.5 74.4 74 5 15 178 208
α112L/15000iB 1675-B100#Z311 A
114.5
+0.2/-0
(114.2±0.01)
111 76.5 74.4 74 5 15 224 254
α112LL/15000iB 1676-B100#Z311 A
114.5
+0.2/-0
(114.2±0.01)
111 76.5 74.4 74 5 15 278 308
α132M/14000iB 1713-B100#Z311 A
131.5
+0.3/-0
(131.2±0.01)
128 103 91 74 - 15 158 188
α132L/14000iB 1705-B140#Z311 A
131.5
+0.3/-0
(131.2±0.01)
128 75 74.4 74 5 15 224 254
α160S/13000iB 1721-B120#Z311 A
159.2±
0.1
(158.91±0.02)
155 104 102 101 7 18 148 184
α160M/13000iB 1723-B120#Z311 A
159.2
+0.2/-0
(158.91±0.02)
155 104 102 101 7 18 180 216
α160L/13000iB 1725-B120#Z311 A
159.2
+0.2/-0
(158.91±0.02)
155 104 102 101 7 18 270 306
α160LL/13000iB 1726-B100#Z311 A
159.0
+0.2/-0
(158.72±0.02)
155 - 101 101 - 18 330 366
α180M/6000iB 1743-B100#Z011 A
188.7
(188.32±
0.02)
187 127 125 124 5 18 210 246
α180L/6000iB 1745-B100#Z011 A
188.8
(188.48±
0.02)
185 127 125 124 5 18 300 336
α180LL/8000iB 1746-B100#Z011 A
189.2
(188.48±
0.02)
187 127 125 124 5 18 360 396
α200M/6000iB 1753-B120#Z313 A
209.5±
0.1
(209.2±0.02)
204 150 146.5 146 4 15 188 218
α200L/6000iB 1755-B120#Z316 A
209.5±
0.1
(209.2±0.02)
204 150 146.5 146 4 15 248 278
Standard type
α250M/3000iB 1773-B140#Z316 A
264.1
+0.2/-0
(263.8±0.02)
260 - 168.5 168 - 21 350 392
