B-65292EN/03 INSTRUCTION 2.STATOR
- 67 -

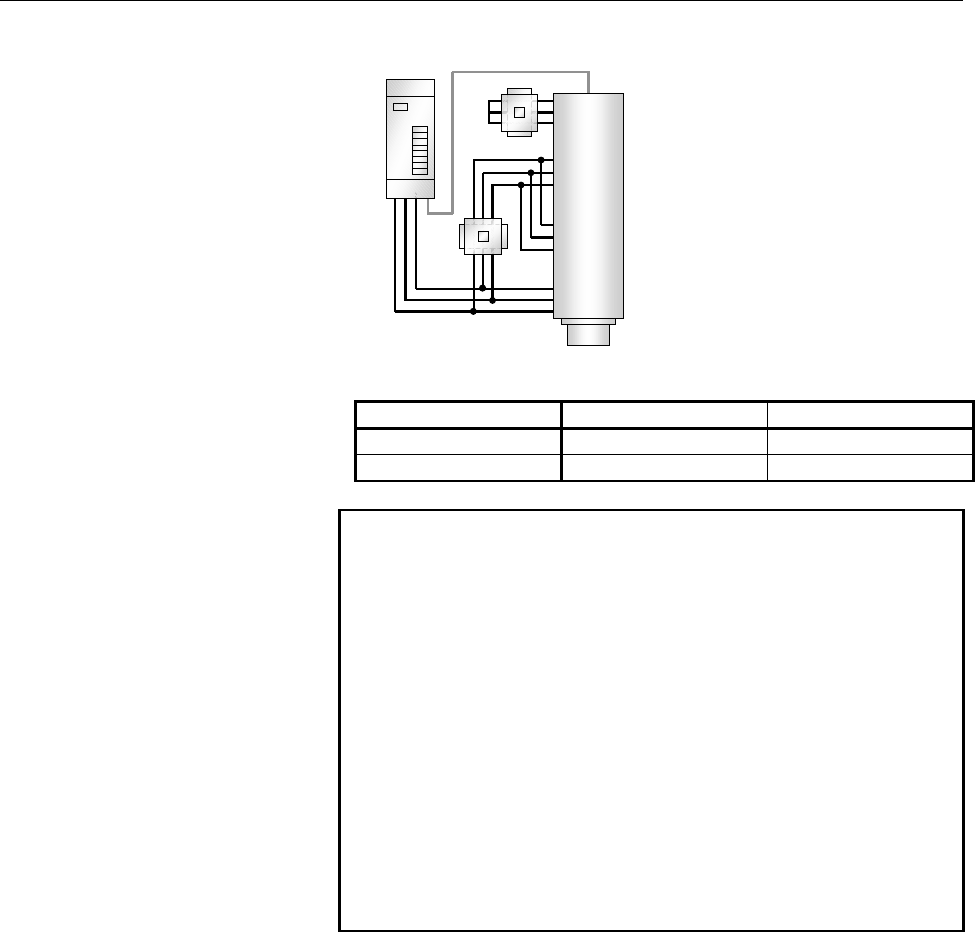

• Connection H
MOTOR
U
V
W
U
2
V
2
W
2
X
1
Y
1
Z
1
X
Y
Z
G
U V W G
SPM
MCC2
MCC1
• Switching of MCC (Connection H)
Low speed winding High speed winding
MCC1
OFF ON
MCC2
ON OFF
NOTE
1 MCC (switching unit) is not attached to the built-in
motor.
2 Refer to "1.SPECIFICATIONS" in part I for the
connection of each model.
3 Use yellow-green stripe cable for the ground wire.
4 Use O-type crimp terminal and spring washer so
that the terminal does not loosen.
5 Connect only one cable with one terminal except
when the terminal is designed so that it may
connect two or more cables.
6 Refer to the Descriptions (B-65282EN) of FANUC
SERVO AMPLIFIER αi series to get more
information about the connection of the motor and
amplifier.
