Built-In AC Spindle Motors Alpha iB Series Descriptions Page 59

Descriptions
B-65292EN/03 SPECIFICATIONS 3.DIMENSIONS
- 43 -

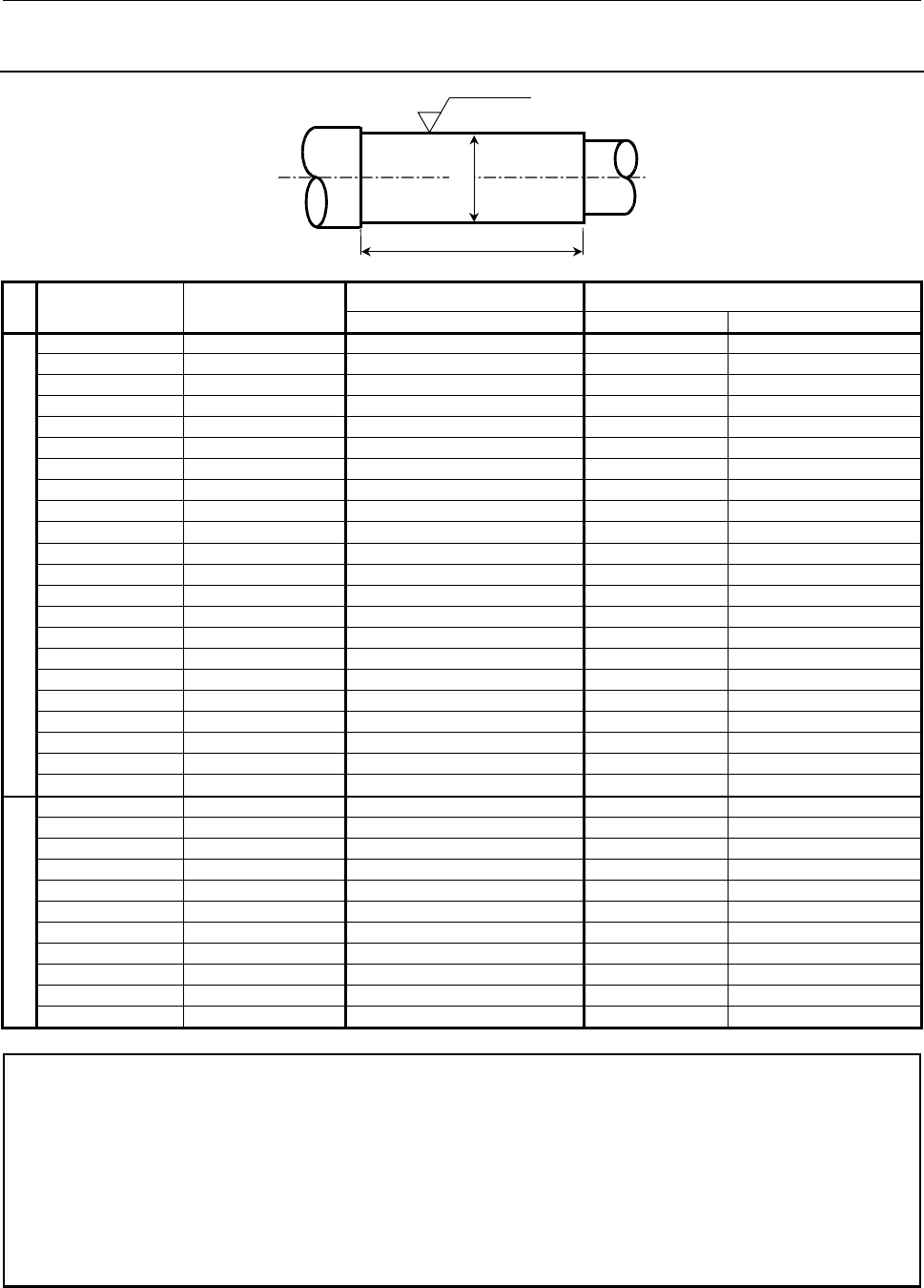

3.2.2 Reference Size of Spindle Shaft
More than width "I"
R
max
=1.6S
φ
J
Unit : mm
Rotor inner surface not machined Rotor inner surface machined
Model name Type No.(A06B-)
φJ φJ Interference for shrinking
α50L/25000iB
1615-B120#Z318
34.827≤J≤34.832 35.0≤ J≤35.5 10 to 30
µ
m
α80S/20000iB
1621-B120#Z312 -
41.4≤J≤42.0 20 to 40µm
α80M/15000iB
1623-B170#Z011 -
41.4≤J≤42.0 25 to 65µm
α80L/8000iB
1625-B170#Z011 -
41.4≤J≤42.0 25 to 65µm
α100S/12500iB
1641-B120#Z011 -
58.4≤J≤59.0 30 to 70µm
α112SS/20000iB
1661-B120#Z312 -
74.6≤J≤77.0 60 to 90µm
α112S/15000iB
1671-B120#Z311 -
74.6≤J≤77.0 40 to 80µm
α112M/15000iB
1673-B120#Z311 -
74.6≤J≤77.0 40 to 80µm
α112L/15000iB
1675-B100#Z311 -
74.6≤J≤77.0 40 to 80µm
α112LL/15000iB
1676-B100#Z311 -
74.6≤J≤77.0 40 to 80µm
α132M/14000iB
1713-B100#Z311 -
74.6≤J≤77.0 50 to 80µm
α132L/14000iB
1705-B140#Z311 -
74.6≤J≤77.0 50 to 80µm
α160S/13000iB
1721-B120#Z311 -
101.4≤J≤103.0 60 to 100µm
α160M/13000iB
1723-B120#Z311 -
101.4≤J≤103.0 60 to 100µm
α160L/13000iB
1725-B120#Z311 -
101.4≤J≤103.0 60 to 100µm
α160LL/13000iB
1726-B100#Z311 -
101.4≤J≤103.0 60 to 100µm
α180M/6000iB
1743-B100#Z011 -
124.4≤J≤125.0 40 to 80µm
α180L/6000iB
1745-B100#Z011 -
125.5≤J≤126.1 40 to 80µm
α180LL/8000iB
1746-B100#Z011 -
124.4≤J≤125.0 40 to 80µm
α200M/6000iB
1753-B120#Z313 -
146.4≤J≤147.0 40 to 80µm
α200L/6000iB
1755-B120#Z316 -
146.4≤J≤147.0 40 to 80µm
Standard type
α250M/3000iB
1773-B140#Z316 -
168.4≤J≤170.0 37 to 67µm
α40S/70000iB
1601-B120#Z618
28.090≤J≤28.095
--
α80S/40000iB
1631-B120#Y618 -
J=60.2 110 to 130µm
α100S/20000iB
1641-B121#X617 -
70.4≤J≤70.5 35 to 55µm
α112S/20000iB
1662-B120#Z317 -
74.4≤J≤77.0 60 to 90µm
α112M/20000iB
1673-B100#Y617 -
74.4≤J≤77.0 115 to 130µm
α112L/20000iB
1675-B100#Y617 -
74.4≤J≤77.0 115 to 130µm
α112L/25000iB
1675-B140#X627 -
74.4≤J≤75.0 125 to 145µm
α132L/25000iB
1705-B140#Y617 -
84.0≤J≤84.5 116 to 135µm
α160M/20000iB
1723-B140#Y627
101.13≤J≤101.14 101.4≤J≤103.0 130 to 155µm
α160L/20000iB
1725-B140#Y617 -
101.4≤J≤103.0 130 to 155µm
High speed type
α160LL/20000iB
1726-B140#Y617 -
101.4≤J≤103.0 130 to 155µm
NOTE
• For a model for which no data is indicated for "Rotor inner surface not machined," machine the inner surface of the
rotor and spindle so that the specified range of the "interference for shrinking" is reserved. Determine the diameter
of the spindle within the range indicated as dimension J in the table.
• For a model for which data is indicated for "Rotor inner surface not machined," no inner surface machining is
recommended. Finish the spindle within the dimension J range. When machining the inner surface of the rotor,
follow the above note.
• When cutting fluid is used for machining, remove moisture completely from the core after machining.
• Machine on the parts designated by FANUC. Incorrect machining will affect the motor life. Read "II.INSTRUCTION"
before machining.
