B-65292EN/03 SPECIFICATIONS 3.DIMENSIONS
- 45 -

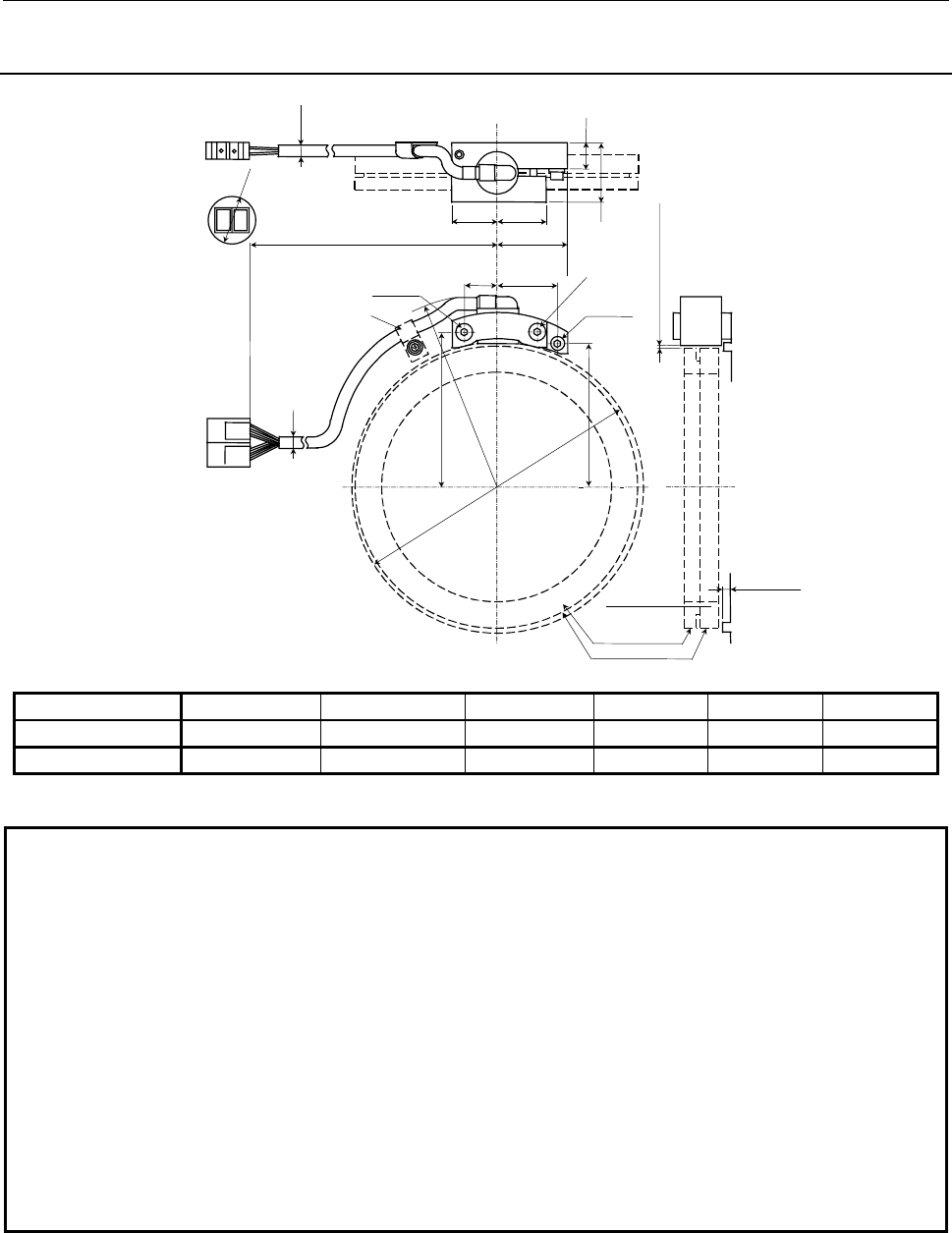

3.3.2 Without Mounting Ring
24
26
37
<1>
φ
6
D
31
14
M4×25
17.8
Note
31.4
M4×25
B
C
4.5mm or less
S
φ
6
1200 (Cable length)
Standard gap 0.13mm
A
ccessories
(Manufactured by Honda
Tsushin Kogyo Co. Ltd.)
Connector:Z-374, 2 pieces
Contact :HKP-F413, 12 pieces
Sensor ring B
*Diameter o
f
through hole for
connector is
φ25mm.
φ
25
φ
B*
φ
A*
Sensor ring A
(Machine
spigot)
Note
Note
Sensor type No. Sensor ring Number of teeth φ
A
BCD
A860-2120-T511 Ring 5 384 158
+0.0/-0.025
84.3 78.3 R110
A860-2120-T611 Ring 6 512 210
+0.0/-0.030
110.8 104.8 R140
Refer to the following section "3.3.3 Sensor Ring" for details of sensor rings.
NOTE
• Use this sensor under 80°C.
• Handle these precision parts with special care. In particular, never apply external force to part S.
• The sensor consists of electric circuit. Therefore, keep away from dust, oil, and any other harmful things.
• Mount the sensor, pressing it against the spigot (dimension φA) on the machine (the height of the spigot on the
machine is 4.5 mm or less). If a dimension of the spigot on the machine is incorrect, a correct signal may not be
output.
• The gap between sensor and detecting ring is preadjusted. The output signal may not indicate the target value due
to a dimensional error of the mounting spigot. When mounting the sensor, check the output signal. If the signal
does not indicate the target value, loosen screw <1> which clamps the sensor to adjust the gap. Torque screw <1>
to 20 kgfcm or less. For how to adjust the output signal, refer to "II. INSTRUCTION."
• Use M4 x 25 mm screws for mounting.
• Connect the shield wire.
• For easy maintenance, mount the sensor at a position where it can be replaced easily.
• Sensor rings with the same specification number can be replaced with each other.
• Sensor rings with different specification numbers cannot be used in combination.
• Mating connectors are provided with the sensor.
