B-65292EN/03 INSTRUCTION 2.STATOR
- 69 -

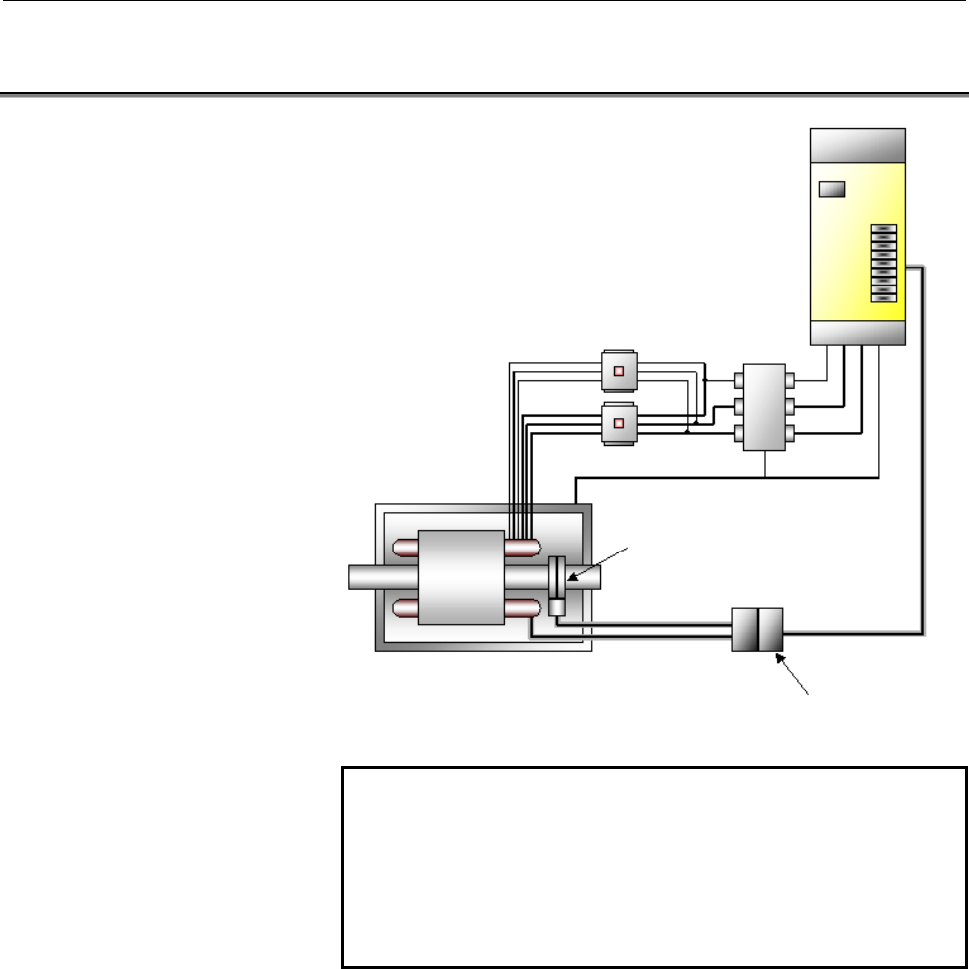

2.5 CABLE CONNECTION (OUTLINE)
Built-in motor
Amplifier
(SPM)
Connector or terminal box
(IP54 or more is recommended)
Ground wire
(Wire striped with yellow and green when
conforming to CE marking)
BZ
i
sensor
Thermistor (THR)
lead
(Shielded lead)
Contactor
(Required for speed range switching)
AC reactor
(Only for the
specified
models)
BZ
i
sensor lead
(Shielded lead)
Signal lead
(Shielded lead)
NOTE
These diagrams are just for reference. Refer to
"4.SENSOR", “POWER LEADS CONNECTION”,
Descriptions (B-65282EN) of FANUC SERVO
AMPLIFIER αi series, and Maintenance Manual
(B-65285EN) for details. And refer to “2.3 POWER
LEADS CONNECTION” for details.
