0i/0i Mate - Model C Connection manual (Hardware) Page 151

Connection manual (Hardware)
B–64113EN/01
9. CONNECTION OF I/O Link SLAVE DEVICES
137

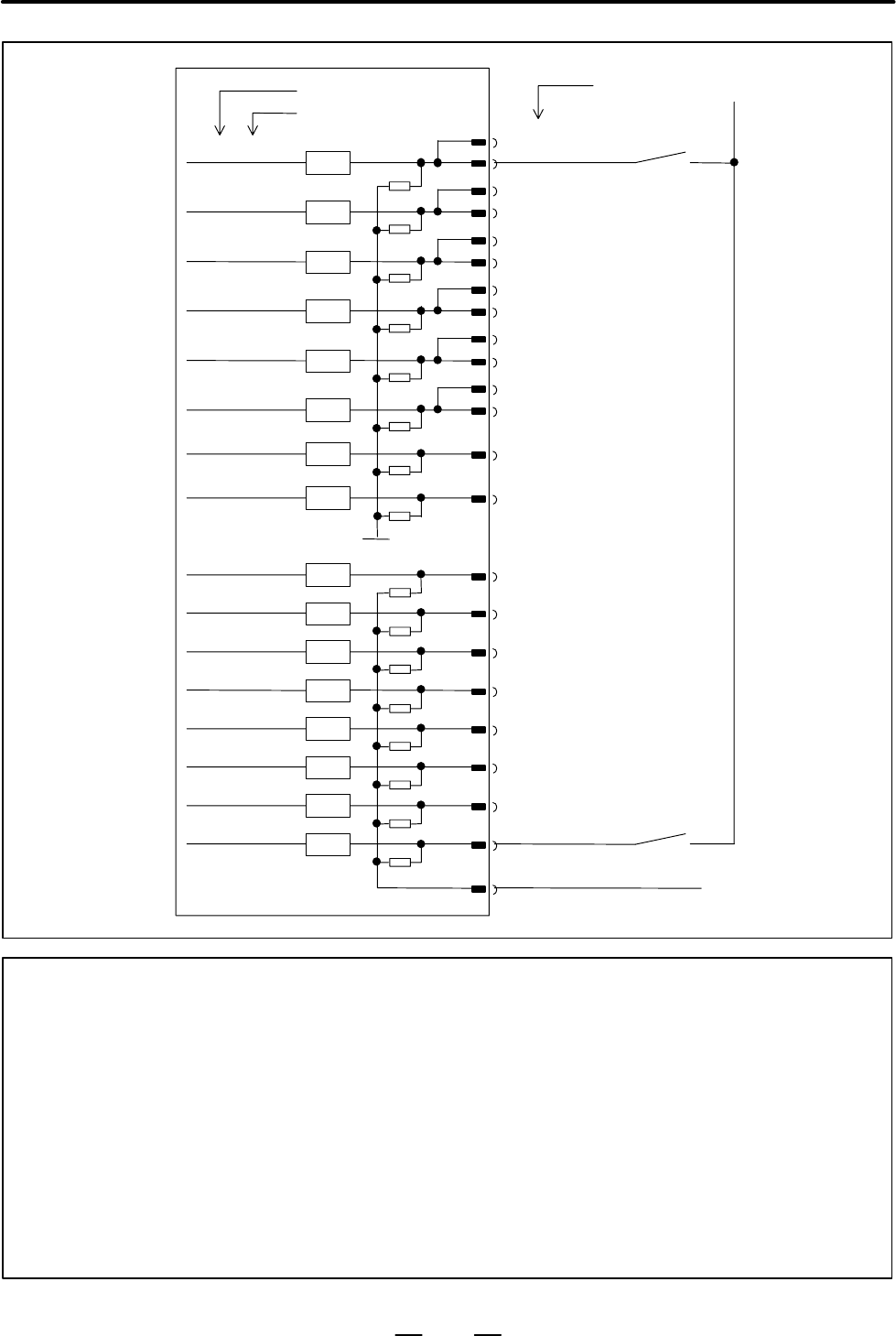

Xm+2.0
Xm+2.1
Xm+2.2
Xm+2.3
Xm+2.4
Xm+2.5
Xm+2.6
Xm+2.7
Xm+3.0
Xm+3.1
Xm+3.2
Xm+3.3
Xm+3.4
Xm+3.5
Xm+3.6
Xm+3.7
RV
JA58(17)
CM68(A03)
JA58(8)
CM68(B03)
JA58(3)
CM68(A04)
JA58(4)
CM68(B04)
JA58(5)
CM68(A05)
JA58(6)
CM68(B05)
CM69(B01)
CM69(A02)
CM69(B02)
CM69(A03)
CM69(B03)
CM69(A04)
CM69(B04)
CM69(A05)
CM69(B05)
CM69(A06)
CM69(B06)
DICOM 0V
RV
RV
RV
RV
RV
RV
RV
RV
RV
RV
RV
RV
RV
RV
RV
Address number
Bit
Pin number +24V
0V
NOTE
1 Xm+3.0 to 3.7 have a common line that is possible to select the source/sink type. If DICOM
(CM69–B06pin) is connected to +24V, the DI signal logic is negative. But in this connection,
if the DI signal wires happen to drop the ground level, the status of the DI signal is same as the
DI signal is “ON”. From the safety viewpoint, DICOM should be connected 0V.
2 Xm+0.0 to 0.7, Xm+1.0 to 1.7 and Xm+2.0 to 0.7 common lines are fixed. So, if these DI pins
in this address open, the status of these one stay “0”. And in case of Xm+3.0 to 3.7 which have
a selectable common line, if the DICOM(CM69–B06pin) is connected to 0V and these DI pins
open, the status of these one stay “0”. And if the DICOM are connected to +24V and these DI
pins open, the status of these one stay “1”. And if the DICOM is not connected to 0V or +24V
and these DI pins open, the status of these one don’t care.
