0i/0i Mate - Model C Connection manual (Hardware) Page 183

Connection manual (Hardware)
B–64113EN/01
9. CONNECTION OF I/O Link SLAVE DEVICES
169
Item Capacity Remarks
24VDC "10% (from Power connector
CPD1, including momentary values)
Momentary values and ripples are also
included in "10%.
0.4A Including all DI consumption

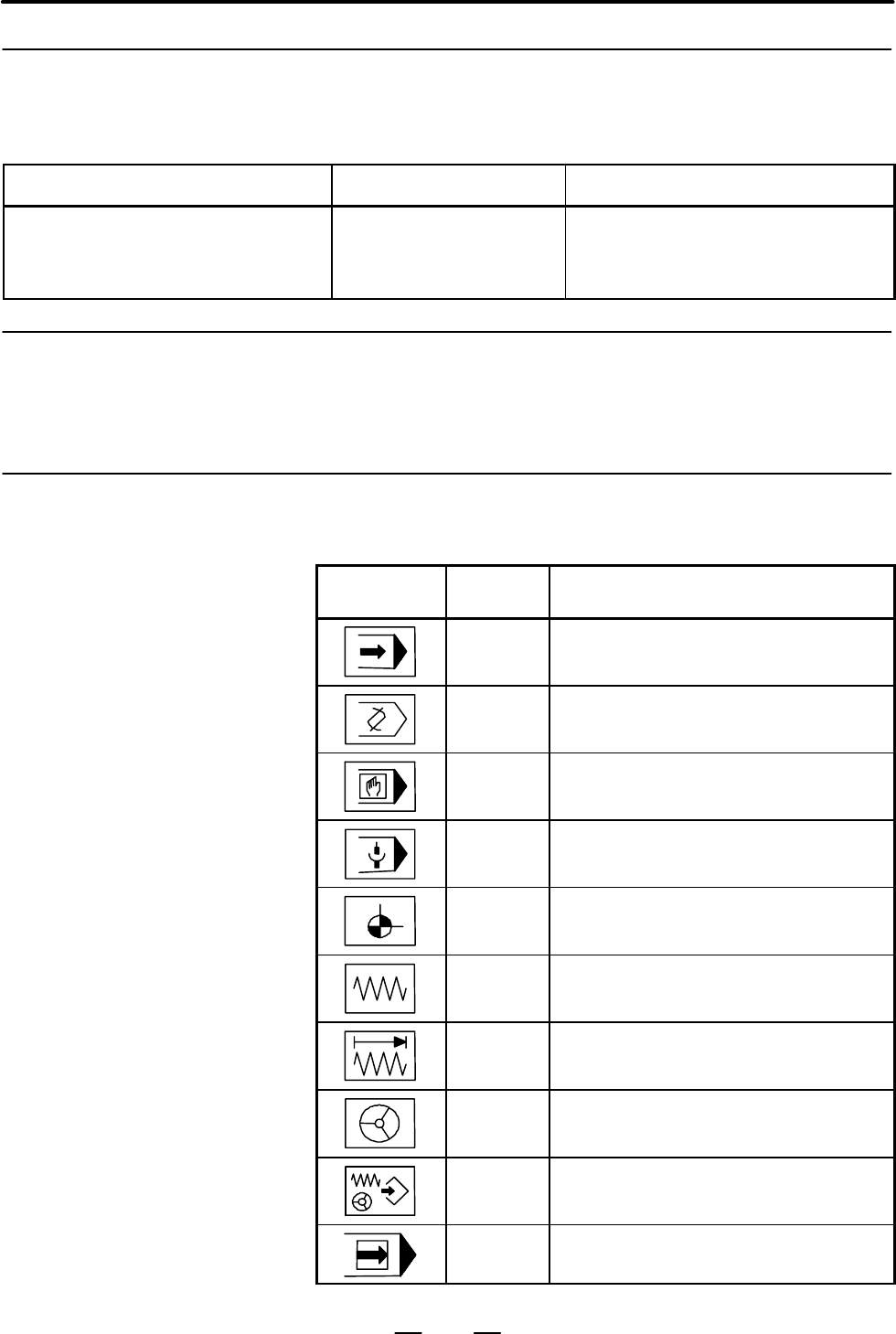

Symbol
indication
English Meaning of key
AUTO
AUTO mode selection signal; Sets automatic
operation mode.
EDIT
EDIT mode selection signal; Sets program edit
operation mode.
MDI
MDI mode selection; Sets MDI mode.
REMOTE
DNC operation mode; Sets DNC operation
mode.
REF
Reference position return mode selection;
Sets reference position return mode.
JOG
JOG feed mode selection; Sets jog feed mode.
INC
Step feed mode selection; Sets step feed
mode.
HANDLE
Manual handle feed mode selection; Sets
manual handle feed mode.
TEACH
Teach–in jog (reach–in handle) mode selection
signal;Sets teach–in jog (teach–in handle) mode.
SINGLE
BLOCK
Single block signal; Executes program one by
one. This key is used to check a program.
9.3.9.4
Power supply
specification
9.3.10
Key Symbol Indication
on Machine Operator’s
Panel
9.3.10.1
Meaning of key symbols
