0i/0i Mate - Model C Connection manual (Hardware) Page 94

Connection manual (Hardware)
7. SERVO INTERFACE
B–64113EN/01
80
This chapter describes how to connect the servo units to the Series 0i/0i
Mate. For details of the connection of the Servo amplifier, refer to the
each servo amplifier manual.

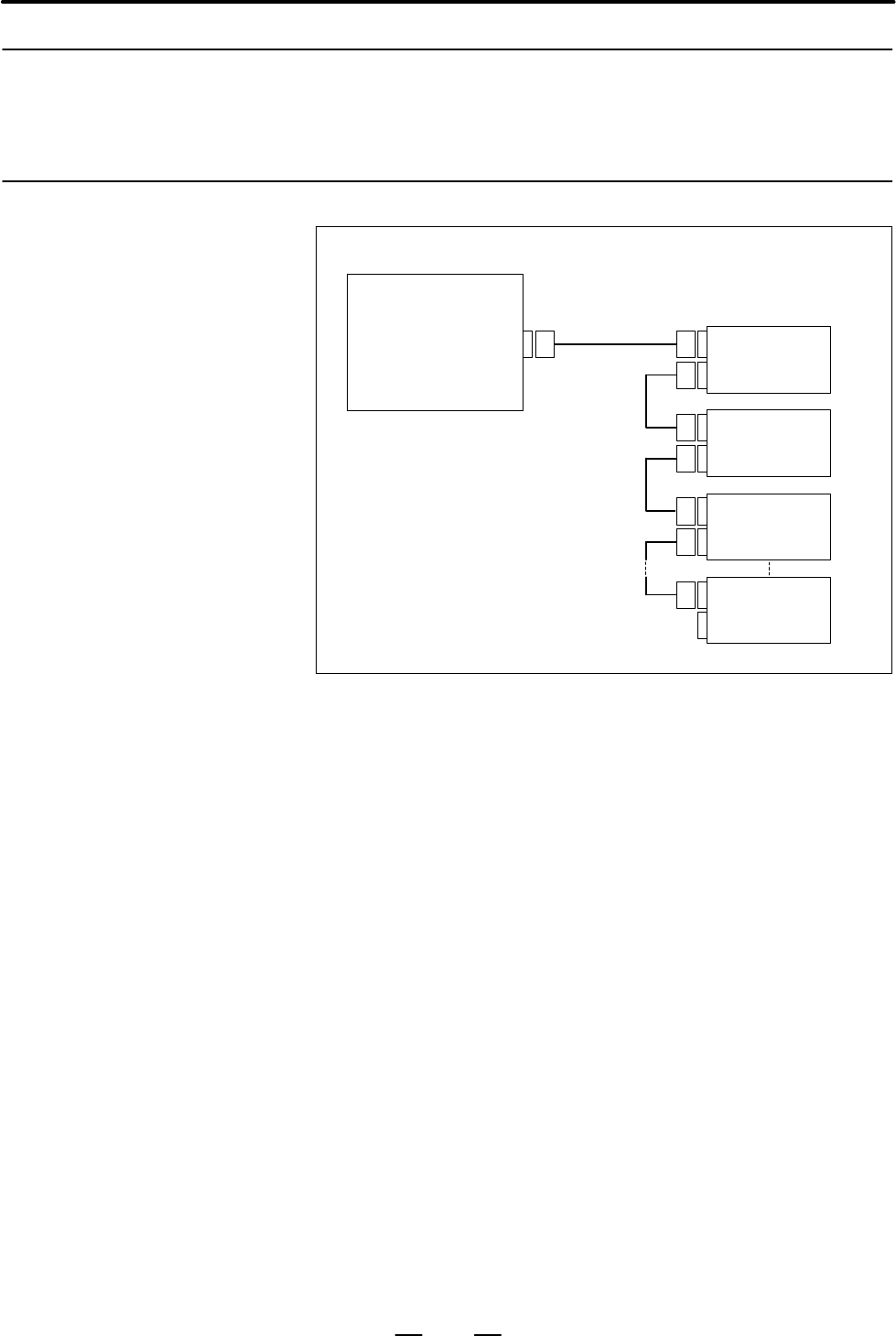

COP10A
COP10B
COP10A
COP10B
COP10A
COP10B
COP10A
COP10B
COP10A
Control unit
Servo amplifier modules
Optical fiber cable
Series 0i Mate–TC: Maximum 2 axes
Series 0i Mate–MC: Maximum 3 axes
Series 0i–TC/MC: Maximum 4 axes
Cable Length Restriction
Within 100 m between units
Total length within 500 m
The connection between the CNC control unit and the servo amplifiers
should use only one optical fiber cable, regardless of the number of
controlled axes. See APPENDIX D for details on the optical fiber cable.
In the control unit, the COP10A connector is placed on the servo card
installed on the main board.
7.1.1
General
7.1.2
Interface to the Servo
Amplifiers
