SERIES 21-210i MODEL A Maintenance manual Page 146

Maintenance manual

Page of 423

/ 423

B−63085EN/02

2. HARDWARE

127

WARNING

Only those personnel who have received approved safety

and maintenance training may perform this replacement

work.

When opening the cabinet and replacing the board, be

careful not to touch the high −voltage circuits (marked and

fitted with an insulating cover). Touching the uncovered

high−voltage circuits presents an extremely dangerous

electric shock hazard.

CAUTION

Before starting replacement work, back up the contents

(such as parameters and programs) of the SRAM memory

of the CNC. Otherwise, the contents of the SRAM memory

may be lost during replacement work.

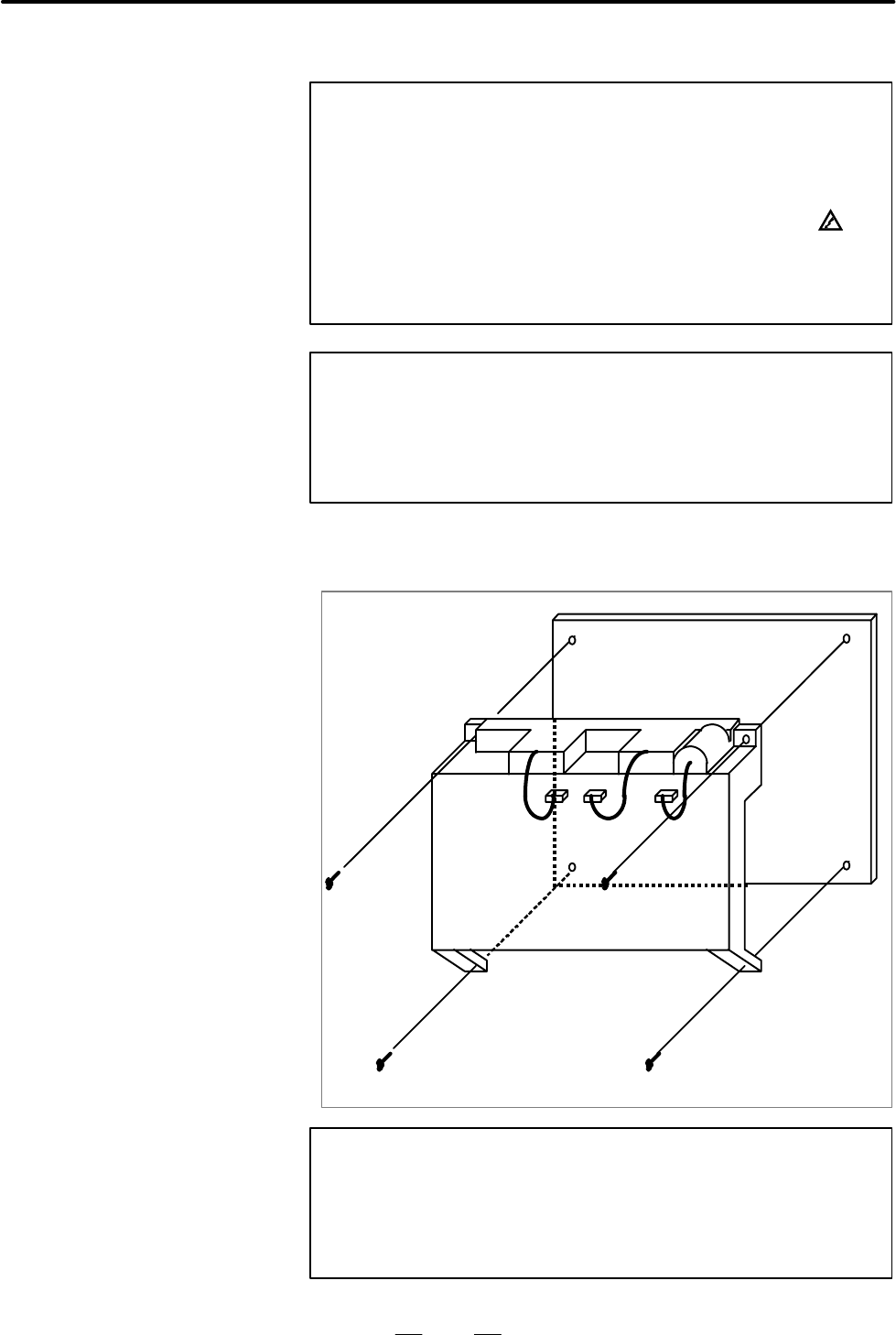

1) Unplug the connectors for the fans and memory backup battery from

the top of the CNC unit, then remove the yellow cover.

CAUTION

With a CNC unit that has an indicator for the touch pad, the

connectors CN1 and CD37 connected to the left side of the

unit, as viewed from the rear of the unit, must be unplugged

before removing the yellow cover.

2.5

REPLACING THE

MOTHERBOARD

D Replacement procedure
